Coordinate transformation (FRAMES)
5.1 Coordinate transformation via frame variables
Job planning
284 Programming Manual, 07/2010, 6FC5398-2BP40-0BA0

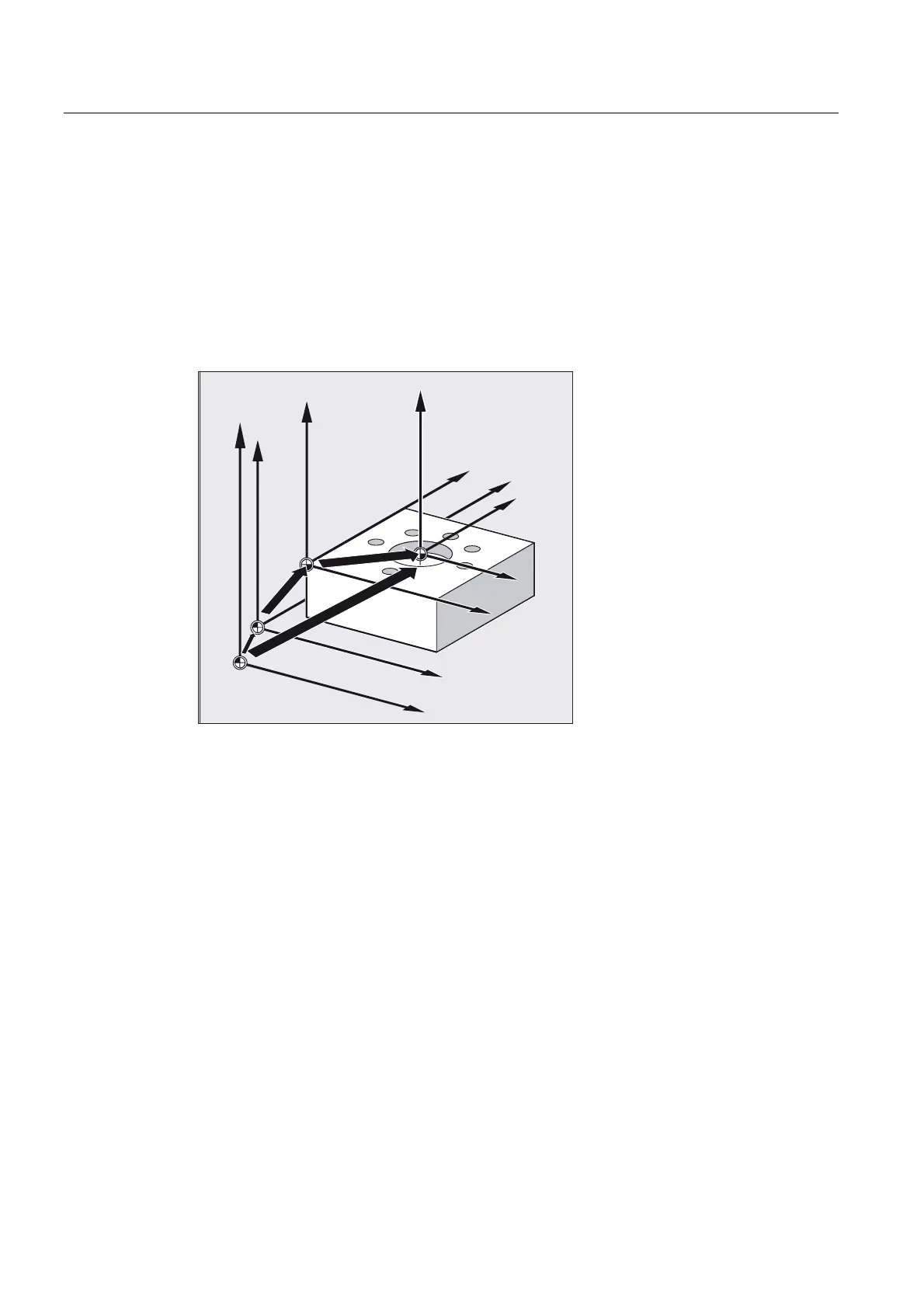

$P_ACTFRAME
Current, resulting complete frame that results from chaining
● the current basic frame variable
$P_BFRAME,
● the currently settable frame variable
$P_IFRAME with system frames and
● the currently programmable frame variable
$P_IFRAME with system frames.
System frames, see Section "Frames that Act in the Channel"
$P_ACTFRAME describes the currently valid workpiece zero.
=
%16
<
;
%16
=
=
<
;
<
;
(16
(16
(16
%16
;
=
:&6
:&6
:&6
%&6
%&6
If
$P_IFRAME, $P_BFRAME or $P_PFRAME are changed, $P_ACTFRAME is recalculated.
$P_ACTFRAME corresponds to $P_BFRAME:$P_IFRAME:$P_PFRAME
