Special Motion Commands
4.8 Extended measuring function (MEASA, MEAWA, MEAC) (option)
Job planning
Programming Manual, 07/2010, 6FC5398-2BP40-0BA0
263
4.8 Extended measuring function (MEASA, MEAWA, MEAC) (option)
Function

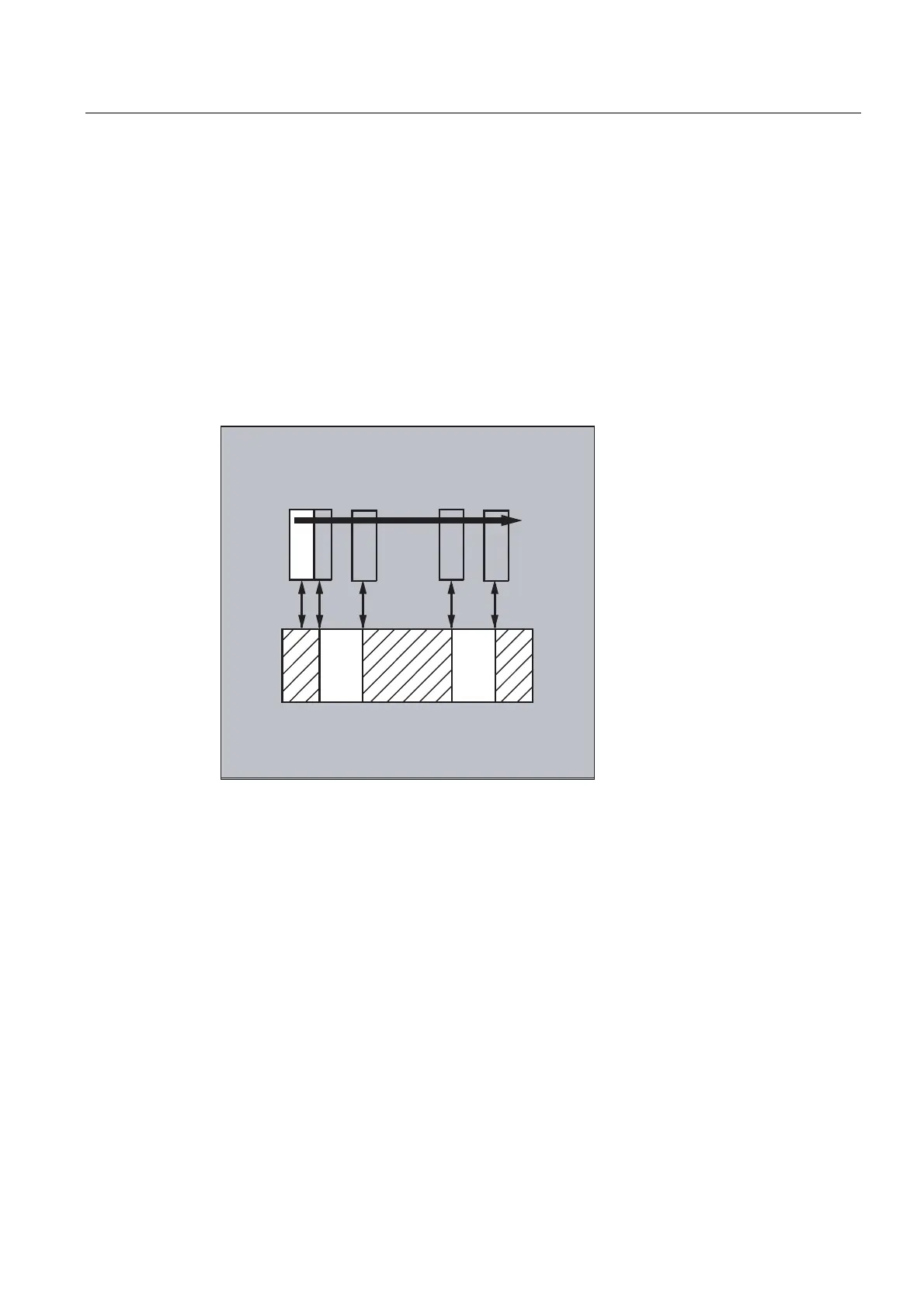

Several probes and several measuring systems can be used for the axial measuring.
The
MEASA or MEAWA command can be used to acquire up to four measures values for the
respective programmed axis; these are then saved in system variables in accordance with
the trigger event.
Continuous measuring tasks can be executed with the
MEAC command. In this case, the
measurement results are stored in FIFO variables. The maximum number of measured
values per measurement is also four with
MEAC.
Reading measurement results
Measurement results are available in the following variables:
● $AA_MM1...4[<axis>]
Measurement results in the machine coordinate system
● $AA_MW1...4[<axis>]
Measurement results in the workpiece coordinate system
Syntax
MEASA[<axis>]=(<mode>,<TE1>,...,<TE4>)
MEAWA[<axis>]=(<mode>,<TE1>,...,<TE4>)
MEAC[<axis>]=(<mode>,<measurement memory>,<TE1>,...,<TE4>)
