Punching and nibbling
12.2 Automatic path segmentation
Job planning
Programming Manual, 07/2010, 6FC5398-2BP40-0BA0
657
12.2.2 Path segmentation for single axes
If single axes are defined as punching/nibbling axes in addition to path axes, then the
automatic path segmentation function can be activated for them.
Response of single axis to SPP
The programmed path segment length (SPP) basically refers to the path axes. For this
reason, the SPP value is ignored in blocks which contain a single axis motion and an SPP
value, but not a programmed path axis.
If both a single axis and a path axis are programmed in the block, then the single axis
responds according to the setting of the appropriate machine data.
1. Standard setting
The path traversed by the single axis is distributed evenly among the intermediate blocks
generated by
SPP.
Example:
N10 G1 SON X10 A0
N20 SPP=3 X25 A100
As a result of the programmed distance between strokes of 3 mm, five blocks are generated
for the total traversing distance of the X axis (path axis) of 15 mm.
The A axis thus rotates through 20° in every block.
1. Single axis without path segmentation
The single axis traverses the total distance in the first of the generated blocks.

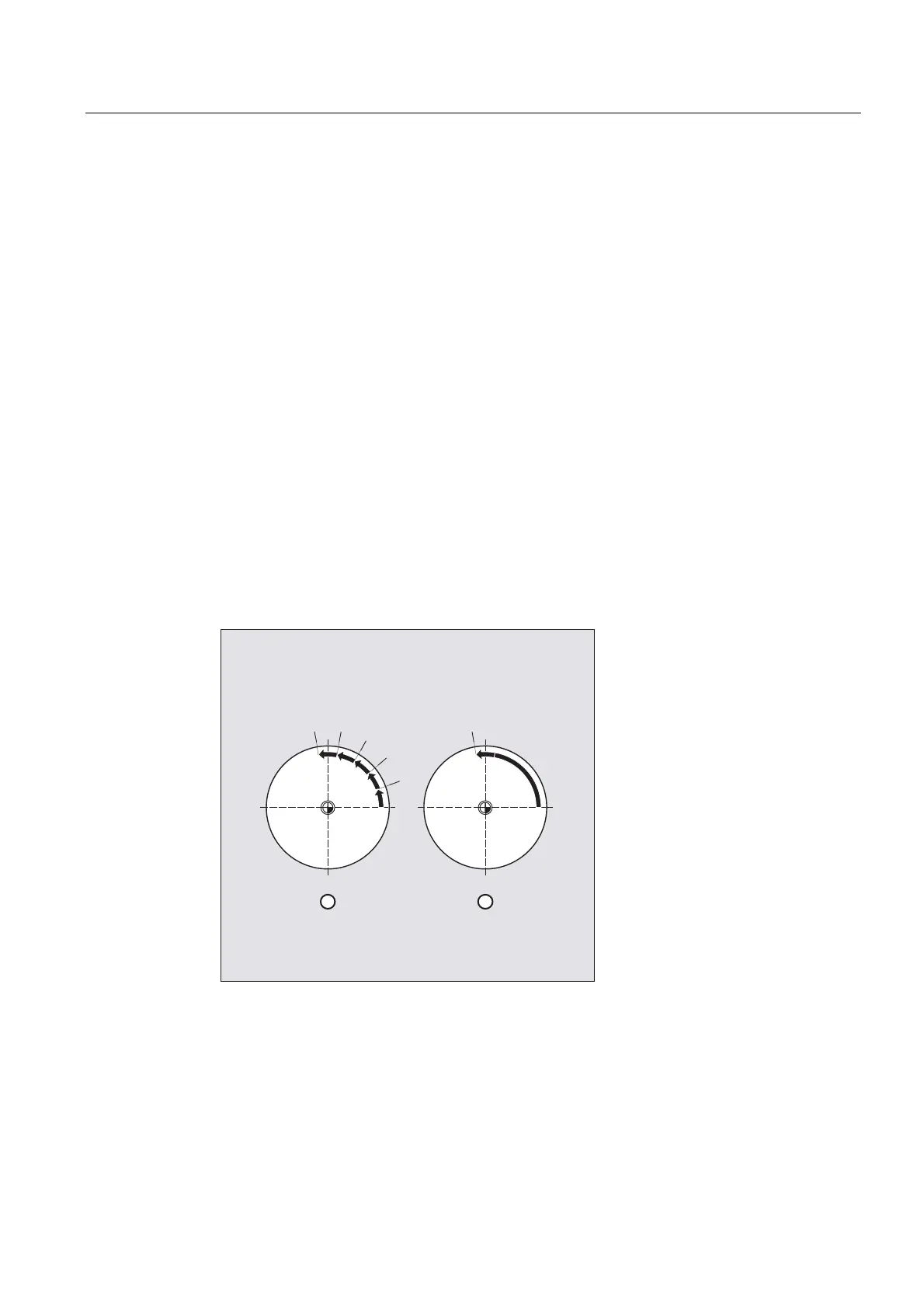

2. With/without path segmentation
The response of the single axis depends on the interpolation of the path axes:
● Circular interpolation: Path segmentation
● Linear interpolation: No path segmentation
