Tool offsets
7.5 Activate 3D tool offsets (CUT3DC..., CUT3DF...)
Job planning
Programming Manual, 07/2010, 6FC5398-2BP40-0BA0
417
7.5.5 3D tool offset: Inside/outside corners and intersection procedure (G450/G451)
Function

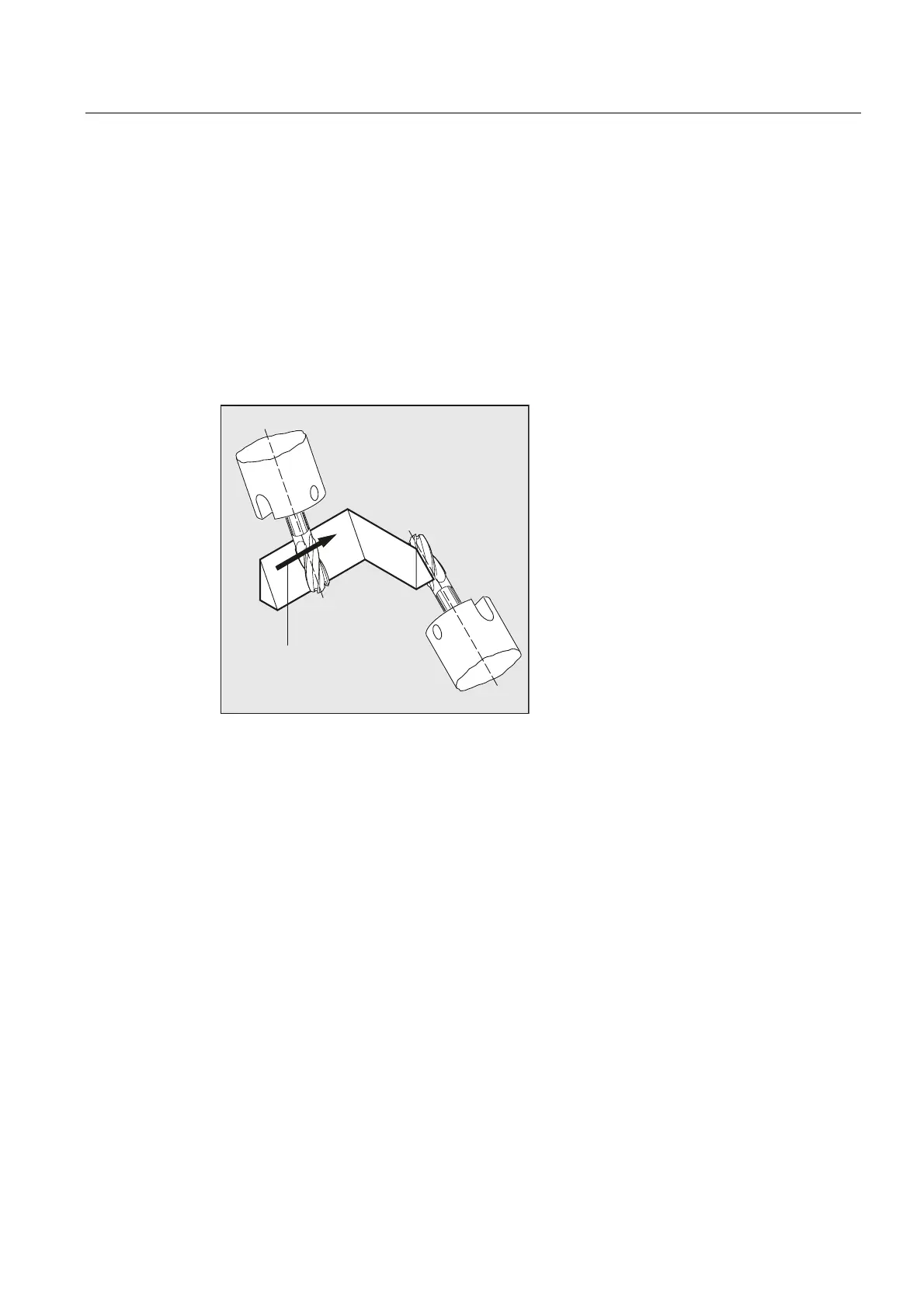

Inside corners/outside corners
Inside and outside corners are handled separately. The terms inner corner and outer corner
are dependent on the tool orientation.
When the orientation changes at a corner, for example, the corner type may change while
machining is in progress. Whenever this occurs, the machining operation is aborted with an
error message.
0DFKLQLQJGLUHFWLRQ
Syntax
G450
G451
Significance
G450
Transition circle (tool travels round workpiece corners on a circular path)
G451
Intersection of equidistant paths (tool backs off from the workpiece corner)
