3.12 Setting the charging power of the UPS module
Power supply system SITOP PSU8600
Manual, 09.2018, A5E36758446-5-76
103
3.12
Setting the charging power of the UPS module
When configuring, the UPS module should be considered as an output of the power supply
system; this means that the charging power of the UPS module should be subtracted from
the system power available for the outputs.
The charging power can be reduced from the preset 120 W to 60 W to reduce the effect of
the charging power on the power that is available at the outputs. In this way, the UPS
module can be adapted to power supply systems with a total output power of 480 W.
The setting can be made for each UPS module independent of any of the other UPS
modules.

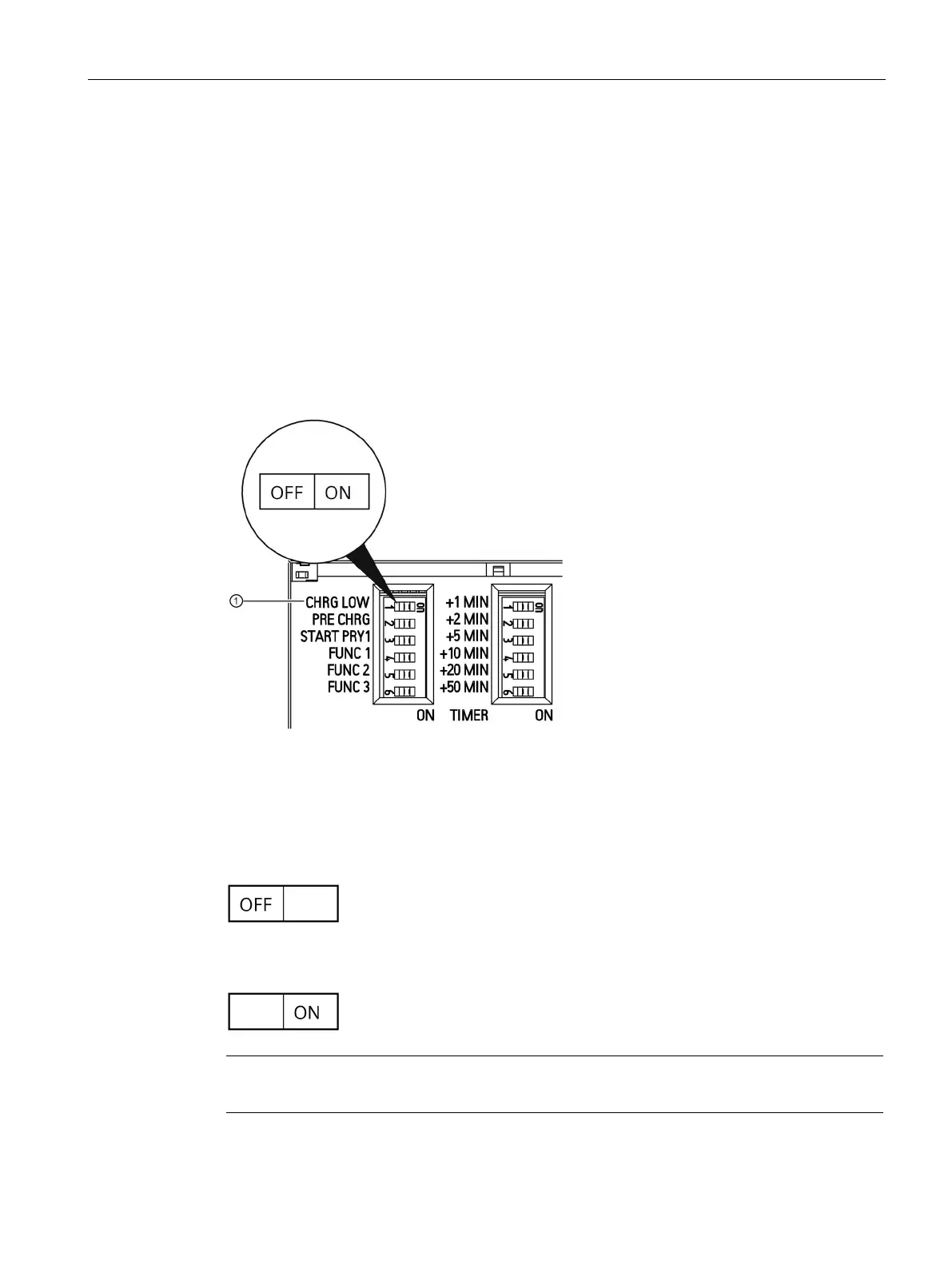

The switchover is made at DIP switch
① with the designation "CHRG LOW", see Section
"Operator controls (Page 43)".
When delivered, the "CHRG LOW" DIP switch is in the "OFF" position (charging power, 120
W).
Setting the charging power
Bring DIP switch "CHRG LOW" into the "OFF" position (left) to set the charging power to
120 W (default setting).
Bring DIP switch "CHRG LOW" into the "ON" position (right) to set the charging power to
60 W (default setting).
Note
The setting becomes immediately active in the MANUAL mode.
