Description, device design, dimension drawing
2.7 Operator controls
Power supply system SITOP PSU8600
Manual, 09.2018, A5E36758446-5-76
41
2.7.2
Expansion modules

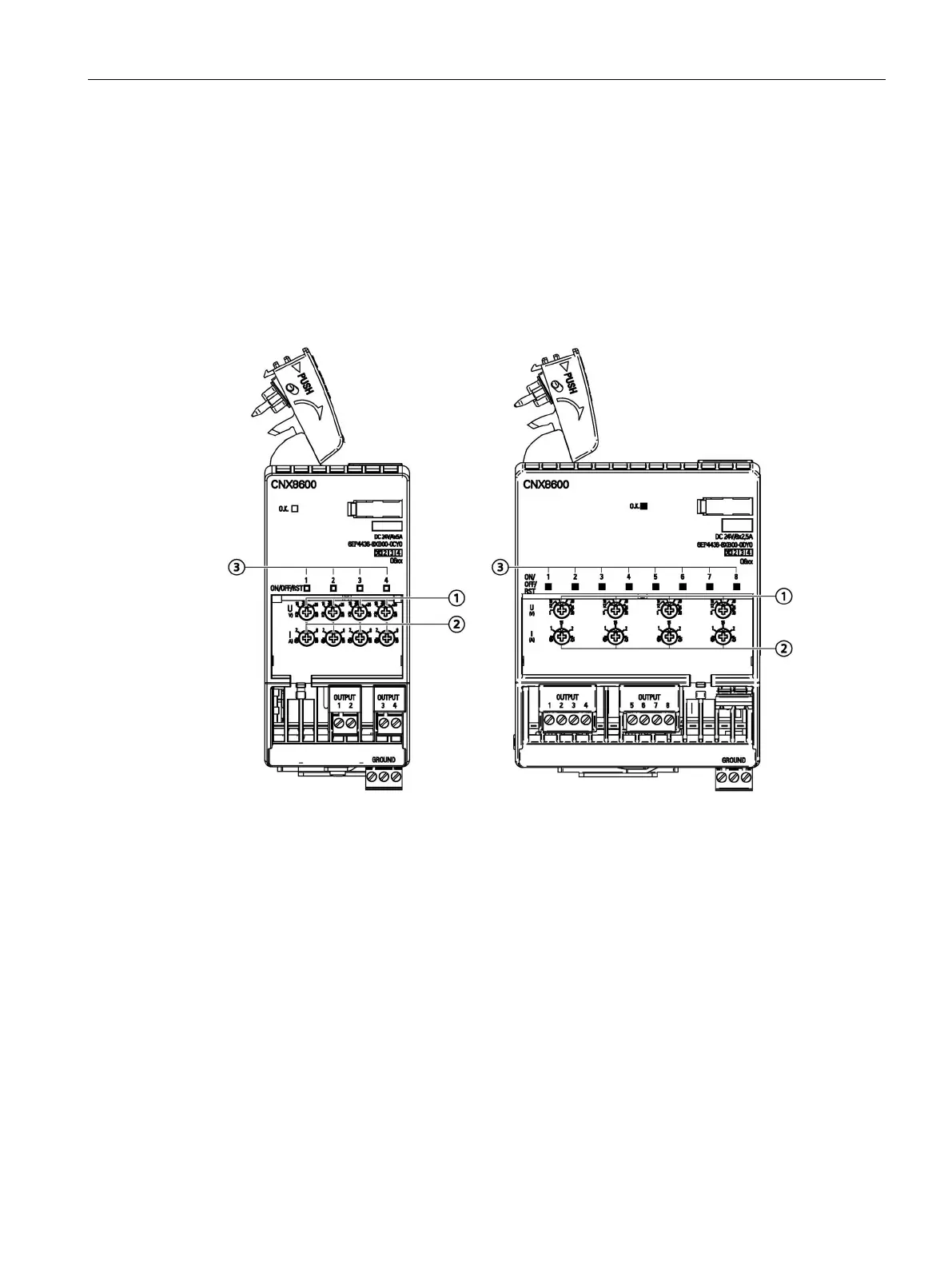

SITOP CNX8600 expansion modules have a main operating area with potentiometers (①
and
②) and an LED button ③.
The potentiometers are used to set the output voltage and response threshold value of the
output current. For modules with four outputs, the potentiometers can be individually set for
each output. For modules with eight outputs, the potentiometer sets two outputs together.
Individual outputs can be switched-on and switched-off using the buttons. Each output can
be manually reset using the buttons after an electronic overload shutdown.
No.
Designation
labeling
Function
①
Voltage
potentiometer "U (V)"
Sets the voltage of an output; see Chapter "Setting the output voltage
(Page 83)".
②
Current
potentiometer "I (A)"
Sets the response threshold of the current of an output; see Chapter
"Setting the response threshold value of the output current (Page 83)".
③
LED button
"ON/OFF/RST"
Switches-on and switches-off an output, resets an output after an elec-
tronic shutdown; see Chapter "Switching an output on and off
(Page 84)" and "Overload shutdown and carrying out a reset
(Page 85)".
