Engineering and remote access
7.5 SIMATIC STEP 7
Power supply system SITOP PSU8600
Manual, 09.2018, A5E36758446-5-76
201
Inserting SITOP PSU8600 into a project
To be able to use the SITOP PSU8600 you must assign an IO controller as IO device
(SIMATIC S7 control).
● The GSD file of the SITOP PSU8600 has been installed.
● SIMATIC STEP 7 has been opened and a project has been created with an IO controller
(SIMATIC S7 control).
1. Open the hardware view "HW Config".

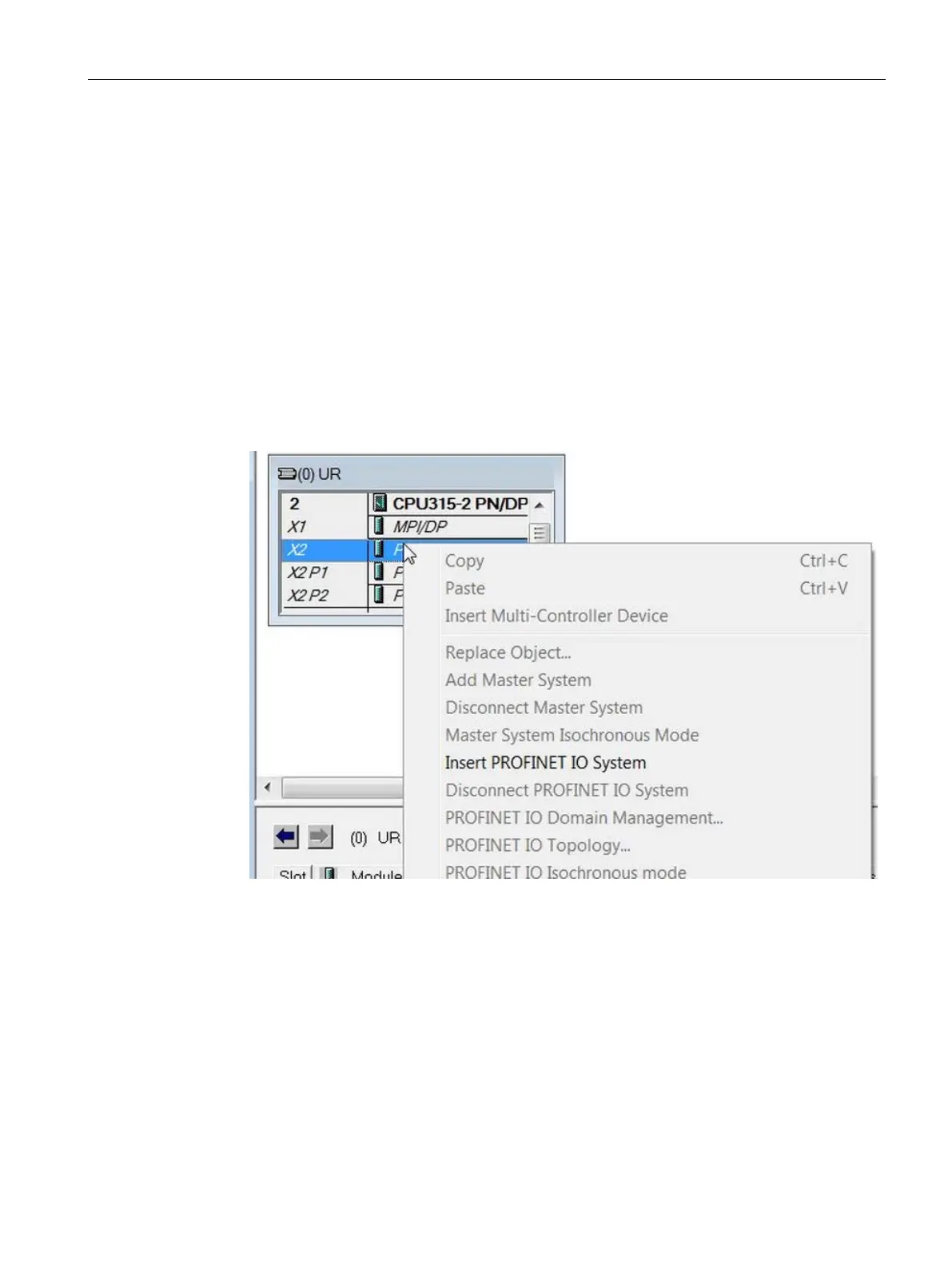

2. Call the shortcut menu of line "PN-IO" and select "Insert PROFINET IO system".
