Mounting position, mounting clearances
5
5.1
Standard mounting position
The device is mounted on standard mounting rails according to EN 60715. The power supply
system must be mounted in such a way that the input terminals and the output terminals are
at the bottom to ensure correct cooling.
A clearance of at least 50 mm should be maintained above and below the power supply
system (maximum depth of the cable duct, 50 mm).
No clearance is required at the side.
Output current as a function of the ambient temperature

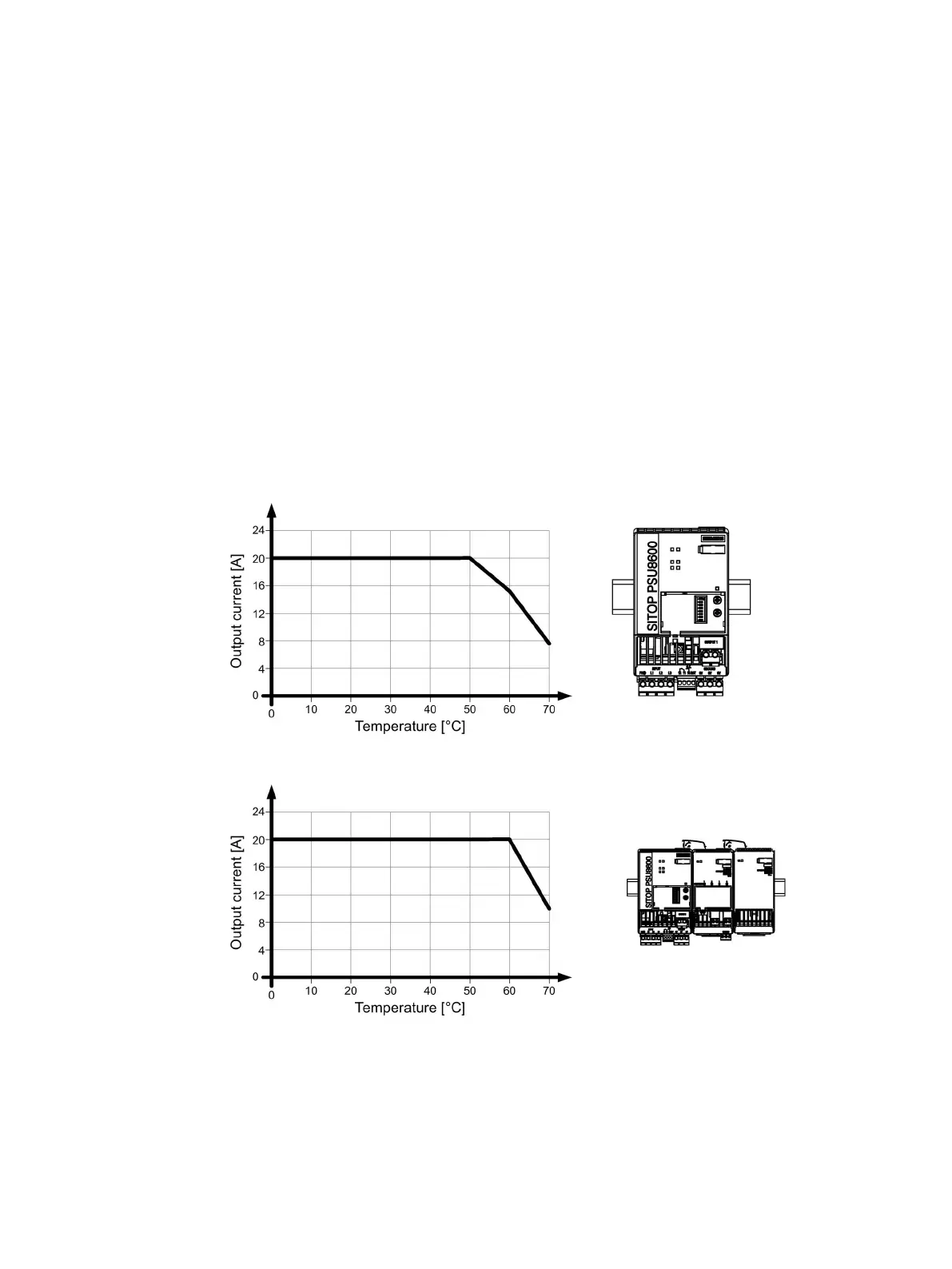

Figure 5-1 Basic unit SITOP PSU8600 20 A: Output current in the standard mounting position
Figure 5-2 Basic unit SITOP PSU8600 20 A and supplementary modules: Output current in the
standard mounting position
