2.6 Connections and terminal designations
Power supply system SITOP PSU8600
34 Manual, 09.2018, A5E36758446-5-76
2.6.2
Expansion modules
The loads to be supplied are connected at output terminals ③. When required, a ground
connection to the basic unit and to additional supplementary modules can be established
using ground terminal
④.
Connections and terminal designations
③ Outputs
1, 2, 3, 4
Two plug-in terminals with screw connection for
each output
only
for expansion module
6EP4436-8XB00-0DY0:
③ Outputs
1, 2, 3, 4, 5, 6, 7, 8
Two plug-in terminals with screw connection for
each output
④ Ground terminal
GROUND
Plug-in terminal with three screw connections
See the diagram in Section "Description of the expansion modules (Page 19)".

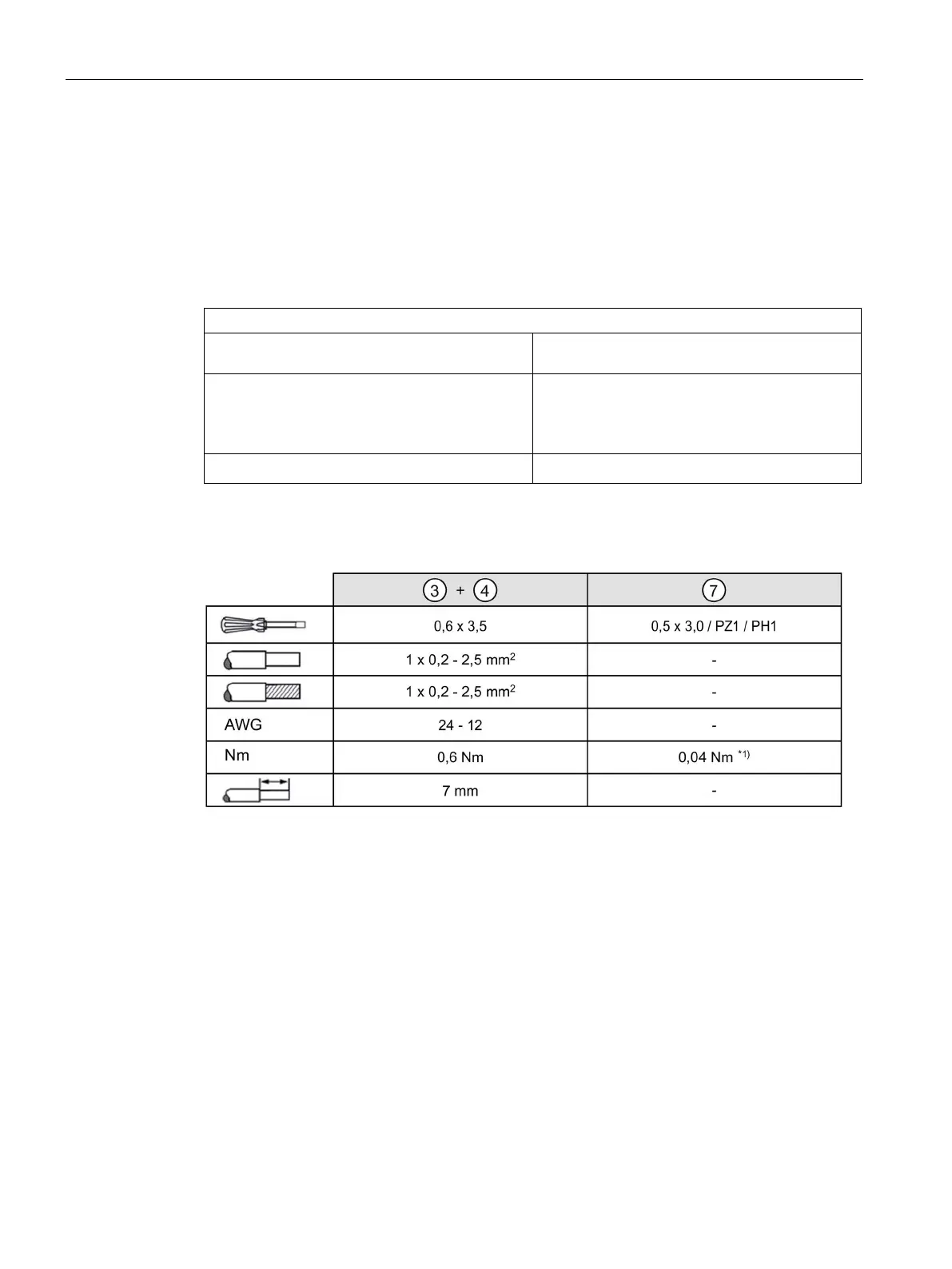

Terminal data 6EP4436-8XB00-0CY0, 6EP4437-8XB00-0CY0, 6EP4436-8XB00-0DY0:
*1) Do not subject the end stop to high loads
