Mounting position, mounting clearances
5.2 Other mounting positions
Power supply system SITOP PSU8600
Manual, 09.2018, A5E36758446-5-76
151
5.2.4
Basic device SITOP PSU8600 40 A and supplementary modules:

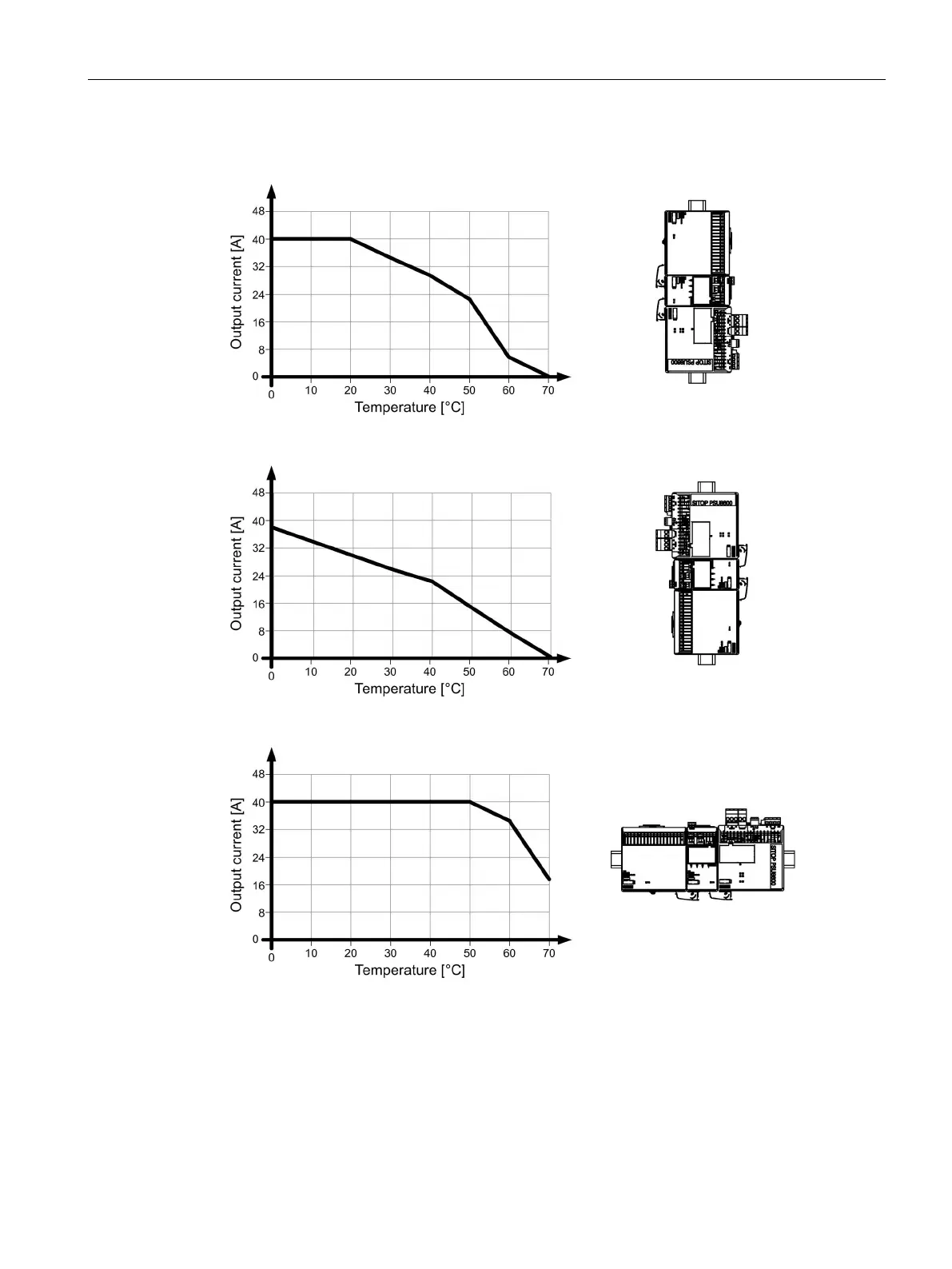

Figure 5-21 Mounting position 1
Figure 5-22 Mounting position 2
Figure 5-23 Mounting position 3
