Attenuating Output Signals
To attenuate the 01V96’s output signals, display the EQ | Out Att page and adjust the Stereo
Out and Bus Out 1–8 attenuators individually.
If necessary, you can also select Output and I/O card channels and specify the amount of
attenuation. This technique is convenient when you want to attenuate output signals
quickly, regardless of the source signal patching.

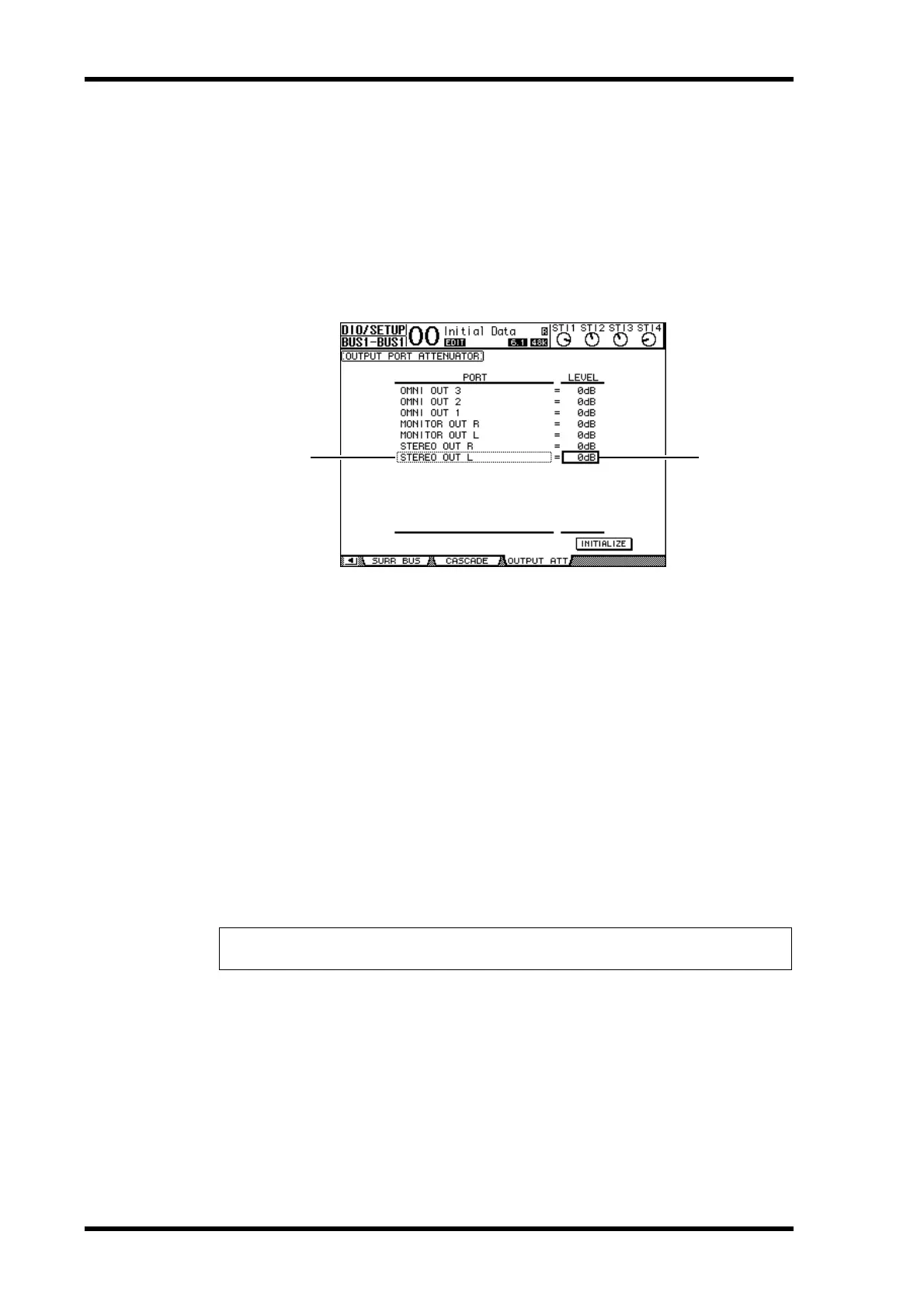

1 Press the DISPLAY ACCESS [DIO/SETUP] button repeatedly until the
DIO/Setup | Output Att page appears.
2 Move the cursor in the left column (
1), then scroll the list up or down using
the Parameter wheel to select the desired output or slot channel for which
you want to adjust attenuation.
The following outputs and slot channels can be selected:
• STEREO OUT L/R ...............................STEREO OUT L & R channels
• MONITOR OUT L/R ..........................MONITOR OUT L & R channels
• OMNI OUT 1–4...................................OMNI OUT connectors 1–4
• SLOT OUT 1–1 through 1–16 ...........Slot channels 1–16
• ADAT OUT 1–8....................................ADAT OUT channels 1–8
• 2TR OUT DIGITAL L/R .....................2TR OUT DIGITAL L & R channels
3 Move the cursor to the parameter value in the right column (
2), then rotate
the Parameter wheel or press the [INC]/[DEC] buttons to set the amount of
attenuation.
The amount of attenuation can be set from 0 dB to –9 dB.
Tip: To reset the attenuation amount of all Output Channels to 0 dB, move the cursor to the
INITIALIZE button, then press [ENTER].
