Routing Input Channels
You can route each Input Channel to the Stereo Bus, Bus 1–8, or its own Direct Out. With
the default setting, signals are routed only to the Stereo Bus. However, you can patch signals
to a single or multiple destinations, if necessary.

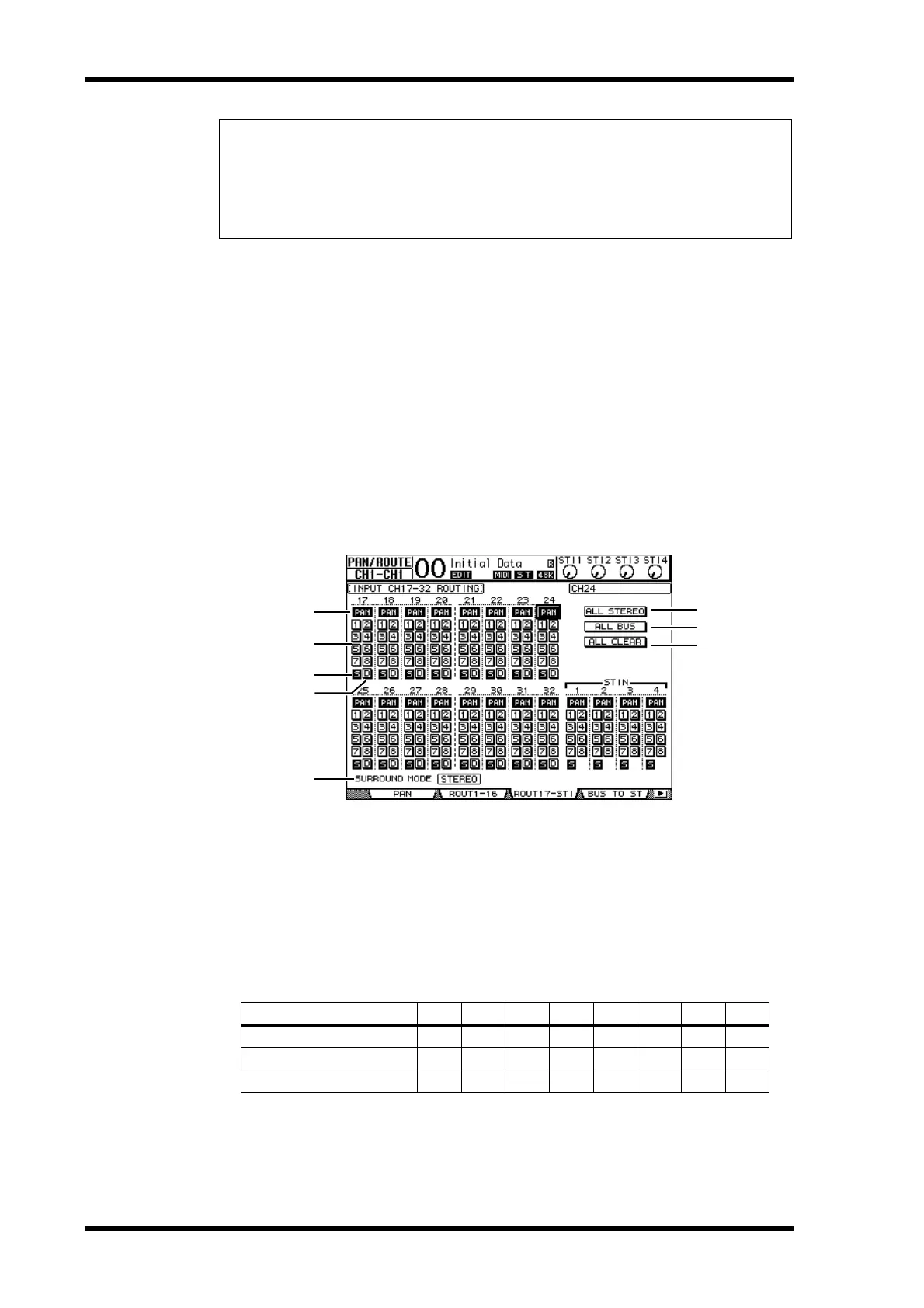

1 Press the DISPLAY ACCESS [PAN/ROUTING] button repeatedly until the
page listed below that contains the desired channels appears.
-ROUT1-16 page
This page enables you to change the routing for Input Channels 1–16.
-ROUT17-ST1 page
This page enables you to change the routing for Input Channels 17–32 and ST IN Chan-
nels 1-4.
The parameters on these two pages (and the procedure for setting them) are the same.
A PAN buttons
These buttons determine whether the channel’s Pan setting is applied to the Bus outs. In
surround mode, they also determine whether the Surround Pan setting is applied to the
Bus Outs.
B Bus buttons 1–8
These buttons route the currently-selected Input Channel to the Bus Outs. If the 01V96
is in Surround mode, the button indicators change as follows, depending on the selected
Surround mode:
L=Left, R=Right, C=Center, S=Surround, Ls=Left Surround
Rs=Right Surround, E=Low Frequency Effect, Bs=Back Surround
The above table shows the default assignment. The actual assignment may vary, depend-
ing on the settings on the DIO/Setup | Surround Bus Setup page.
Tip:
•You can adjust the pan setting for the ST IN Channels L & R separately.
•You can also adjust the pan setting for the Input Channels using the PAN control in the
SELECTED CHANNEL section.
•Surround Pan is available when the 01V96 is in Surround mode. Refer to Chapter 12 for
more information on Surround Pan.
Bus buttons 12345678
Surround mode: 3-1
LRCS 5678
Surround mode: 5.1
LRLsRs C E 7 8
Surround mode: 6.1
LRLsRs C Bs E 8
