152 Chapter 13—Grouping Channels & Linking Parameters
01V96 Version 2—Owner’s Manual
Using Fader Group Master
The 01V96 features a Fader Group Master function that enables you to control the level of all
channels using the Group Master level while maintaining the relative balance between chan-
nels, much like a VCA group on an analog mixing console. While this function is enabled,
channel fader operation does not affect channel levels in the corresponding Fader group.
1 After you perform Step 5 in “Using Fader Groups and Mute Groups” on
page 150, use the cursor buttons to select the INPUT FADER MASTER check
box or the OUTPUT FADER MASTER check box, then press [ENTER] to turn
on the Fader Group Master function.
2 When the Fader Master check box is checked, you can set channel levels of
the Fader groups in the Master column.
When the Master column is selected, repeatedly pressing the [ENTER] button turns the
Fader group on and off.

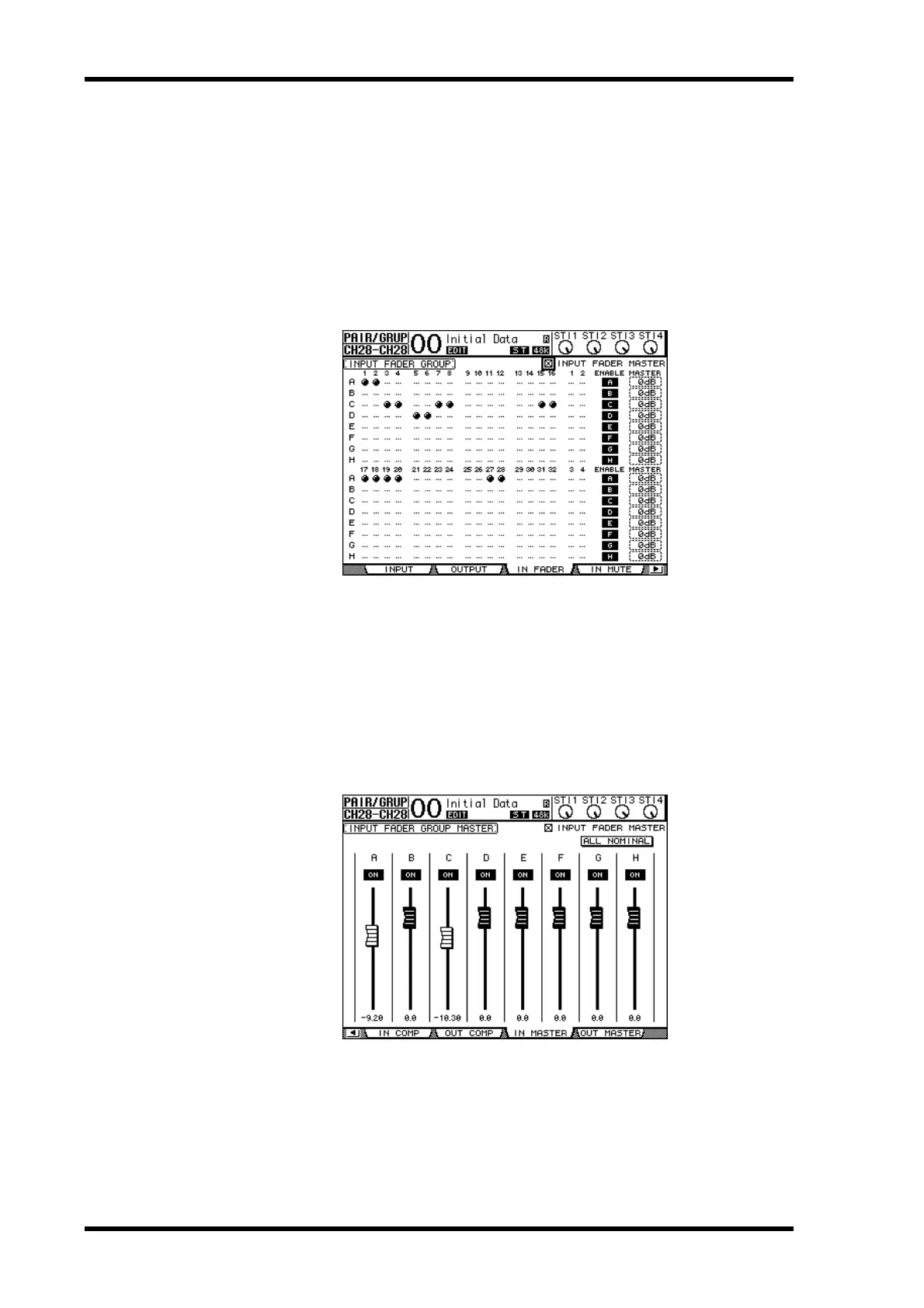

You can also make these settings in the In Master page or Out Master page, as shown below.
3 Press the DISPLAY ACCESS [GROUP] button repeatedly until the Group | In
Master or Group | Out Master page appears.
4 Use the cursor buttons to select parameters, then use the Parameter wheel,
INC/DEC buttons, or [ENTER] button to set the parameters.
• INPUT/OUTPUT FADER MASTER ...When this check box is checked, you can set the
master levels for the Fader groups. The result-
ant Channel level equals the corresponding
Channel fader level plus the Group Master
level.
