Panning Aux Sends 119
01V96 Version 2—Owner’s Manual
Aux Outs
9
Panning Aux Sends
You can pair adjacent odd-even (in this order) Aux Sends for stereo operation. This enables
you to pan signals from Input Channels to paired Aux Sends.
1 Pair the desired two Aux Sends. (See page 105 for more information on pair-
ing channels.)
2 Use the FADER MODE [AUX 1]–[AUX 8] buttons to select one of the paired
Aux Sends.

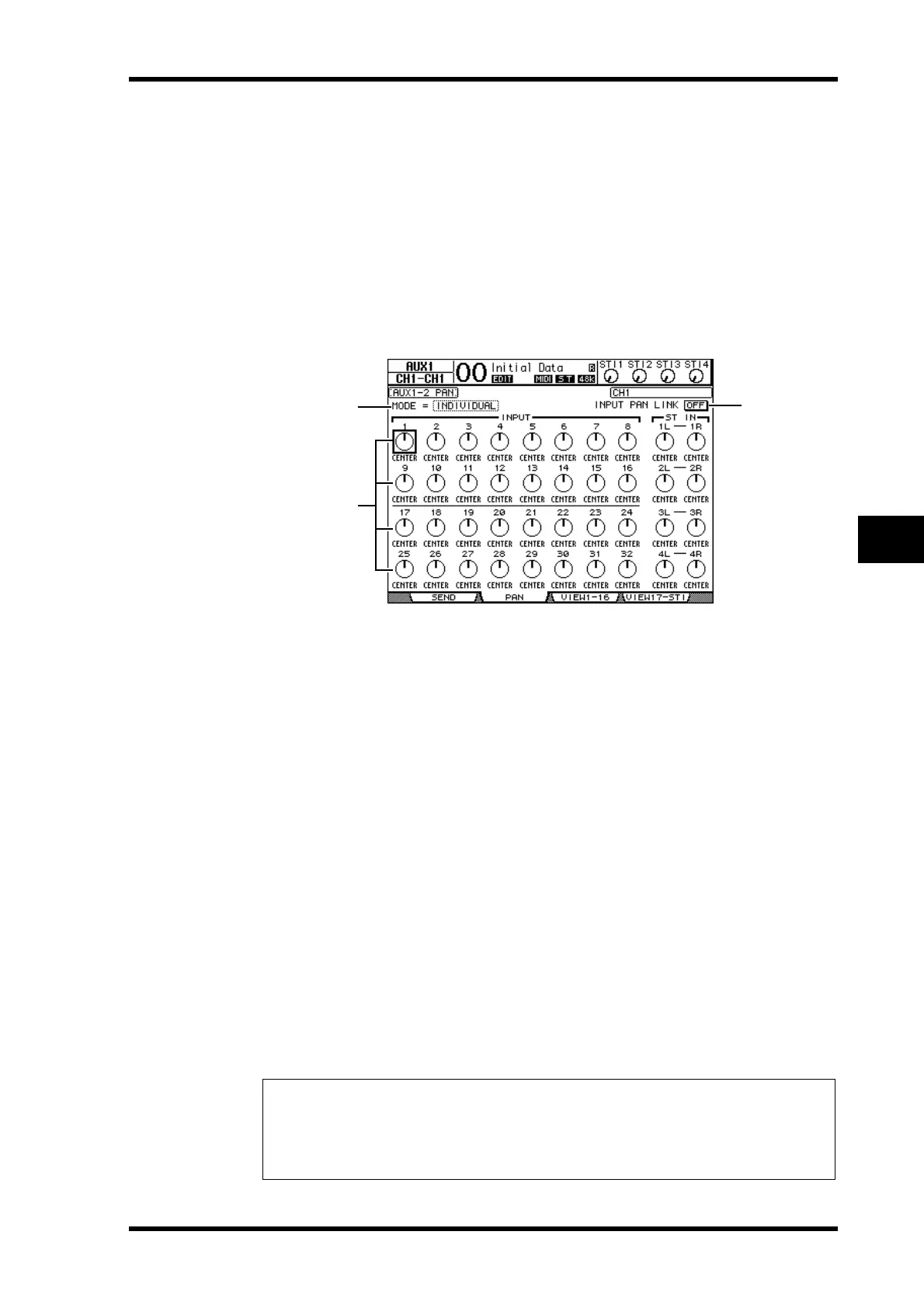

3 Repeatedly press the button you pressed in Step 2 to display the Aux | Pan
page.
A Aux pan controls
These controls adjust the pan setting of signals routed from Input Channels to paired
Aux buses.
B MODE
The MODE parameter determines how paired Input Channels are panned.
C INPUT PAN LINK
When this parameter is turned on, Aux Sends follow the Input Channel Pan.
4 Move the cursor to the Aux pan control of the desired Input Channel, the
rotate the Parameter wheel to set the pan value.
5 If necessary, move the cursor to the MODE parameter box, then rotate the
Parameter wheel to select INDIVIDUAL, GANG, or INV GANG, then press
[ENTER].
If the INPUT PAN LINK ON/OFF button is turned off, this Mode setting is independent of
the Mode parameter on the Pan page. (See page 85 for more information on Mode
options.)
6To link the Input Channel Pan setting with the Aux Send Pan setting, move
the cursor to the INPUT PAN LINK ON/OFF button, then press [ENTER].
The pan positions on the Pan page are copied to the Aux pan setting, and the pan controls
on both pages are linked.
Tip:
•If paired Aux Sends are in Variable mode, the Aux Send levels, Aux On/Off, and Pre/Post
parameters for paired Input Channels are linked to each other.
•If paired Aux Sends are in Fixed mode, the Aux On/Off parameters for paired Input Chan-
nels are not linked to each other.
3
2
1
