Setting Aux Out 1–8 from the Control Surface 113
01V96 Version 2—Owner’s Manual
Aux Outs
9
Setting Aux Out 1–8 from the Control Surface
You can use the faders, [SEL] buttons, and various buttons and controls in the SELECTED
CHANNEL section on the top panel to directly control certain parameters for Aux Out 1–8.
Setting Levels
To set Aux Out 1–8 levels, press the [MASTER] button in the LAYER section to select the
Master layer, then move faders 1–8. At this time, you can turn Aux Out 1–8 on or off using
the corresponding [ON] 1–8 buttons.
EQ settings
To control Aux Out 1–8 EQ parameters, select the desired Aux Out (1–8) using the corre-
sponding [SEL] button or fader, then use the buttons and controls in the SELECTED
CHANNEL section. The parameters on this page (and the procedure for setting them) are
the same as for Input Channels (see page 83).
Setting Aux Send Levels
You can adjust the level of signals routed from Input Channels to the corresponding Aux
Out (1–8).
Setting Send Levels from the Display
You can view multiple channels’ Aux Send levels on the screen and adjust them individually.
1 Press the FADER MODE [AUX 1]–[AUX 8] buttons to select the Aux.

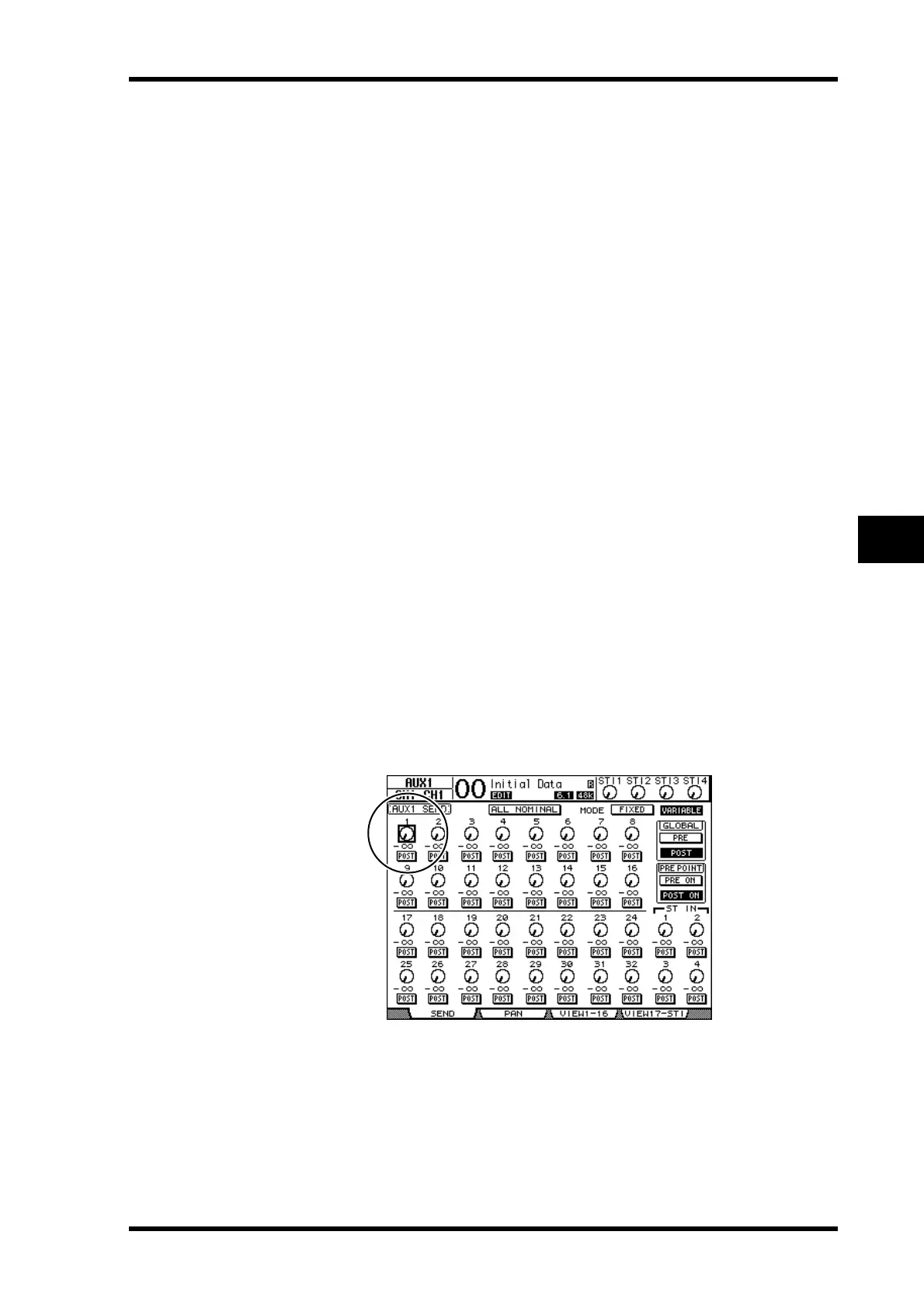

2 Make sure that the 01V96 displays the Aux | Send page.
This page enables you to adjust the level of the signals routed from each Input Channel to
the Aux selected in Step 1.
If the Send page is not displayed, repeatedly press the button that you pressed in Step 1 until
the Send page appears.
• Aux Send rotary controls
These controls adjust the Aux Send level of the Input Channels. The current numeric levels
appear below the rotary controls.
• PRE/POST
These buttons enable you to specify the Aux signal source points. The PRE buttons send
pre-fader signals, and the POST buttons send post-fader signals.
