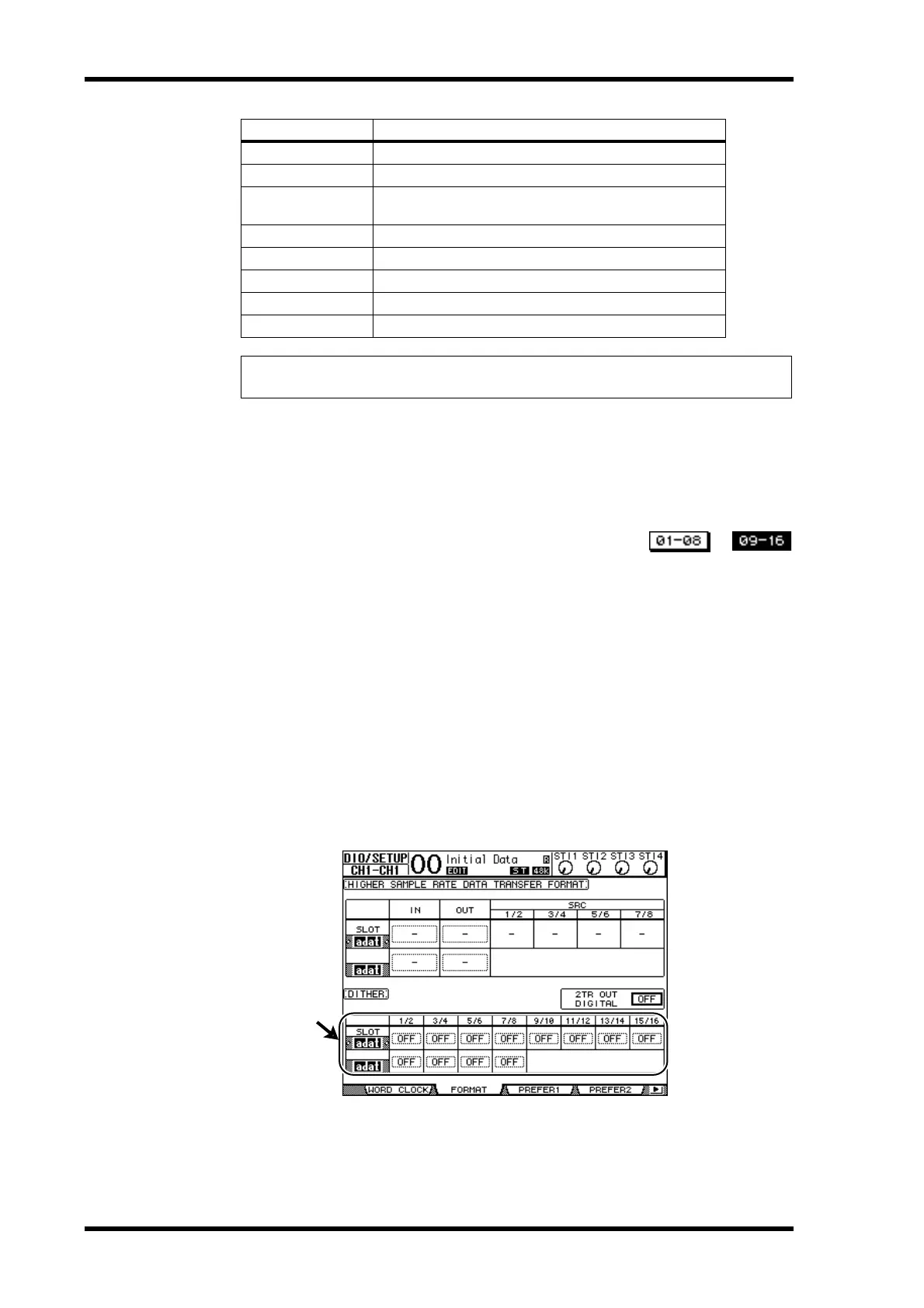

74 Chapter 6—Analog I/O & Digital I/O
01V96 Version 2—Owner’s Manual
F COPY
Indicates the status of copy protection information included in the IEC958 Part2
(S/PDIF-Consumer) format signals. “OK” appears if copying is allowed. “Prohibit
appears if copy-protected.
3 If you select the SLOT button for a slot that has an
MY16-AE card installed, use the 01–08 and 09–16 but-
tons located in the lower-right corner of the screen
to select a channel group you wish to display.
Dithering Digital Outputs
When digital audio is transferred to lower-resolution systems, truncated bits may generate
unpleasant noise. To cancel the audible effect of this noise, a small complement of noise is
intentionally added to the digital outputs. This process is called dithering.
On the 01V96, you can dither the 2TR Digital Outputs and Slot Outputs. For example, you
can apply dithering to the 01V96 stereo mix data and record to a 16-bit DAT recorder.
1 Press the DISPLAY ACCESS [DIO/SETUP] button repeatedly until the
DIO/Setup | Format page appears.
The dithering settings are displayed at the bottom of the page.
Magnetic
Magnetic tape device and magnetic disk device
D.Broadcast
Digital broadcast reception
Instruments
Musical instrument, microphone, and sources that
generate string signals
A/D Conv
A/D converter (without copyright information)
A/D Conv with (C)
A/D converter (with copyright information)
Solid Memory
Solid memory device
Experimental
Experimental device
Unknown
Unknown
Note: AES/EBU” appears in the Category row when you are monitoring IEC958 Part 3
(AES/EBU-Professional) format signals (that do not include Category Code Bit).
Parameter value Description
