20 Chapter 2—Control Surface & Rear Panel
01V96 Version 2—Owner’s Manual
E Left Tab Scroll [ ] button
F Right Tab Scroll [ ] button
If there are more pages available than the four whose tabs are currently displayed, use these
buttons to display the additional tabs. These buttons are available only when the left or right
Tab Scroll arrow appears.
SELECTED CHANNEL Section
A [PAN] control
This control adjusts the pan of the channel selected by the [SEL] button.
B [HIGH] button
C [HIGH-MID] button
D [LOW-MID] button
E [LOW] button
These buttons select the EQ band (HIGH, HIGH-MID, LOW-MID, LOW) of the channel
selected by the [SEL] button. The corresponding button indicator of the currently-selected
band lights up.
F [Q] control
This control adjusts the currently-selected band Q.
G [FREQUENCY] control
This control adjusts the currently-selected band frequency.
H [GAIN] control
This control adjusts the currently-selected band gain.

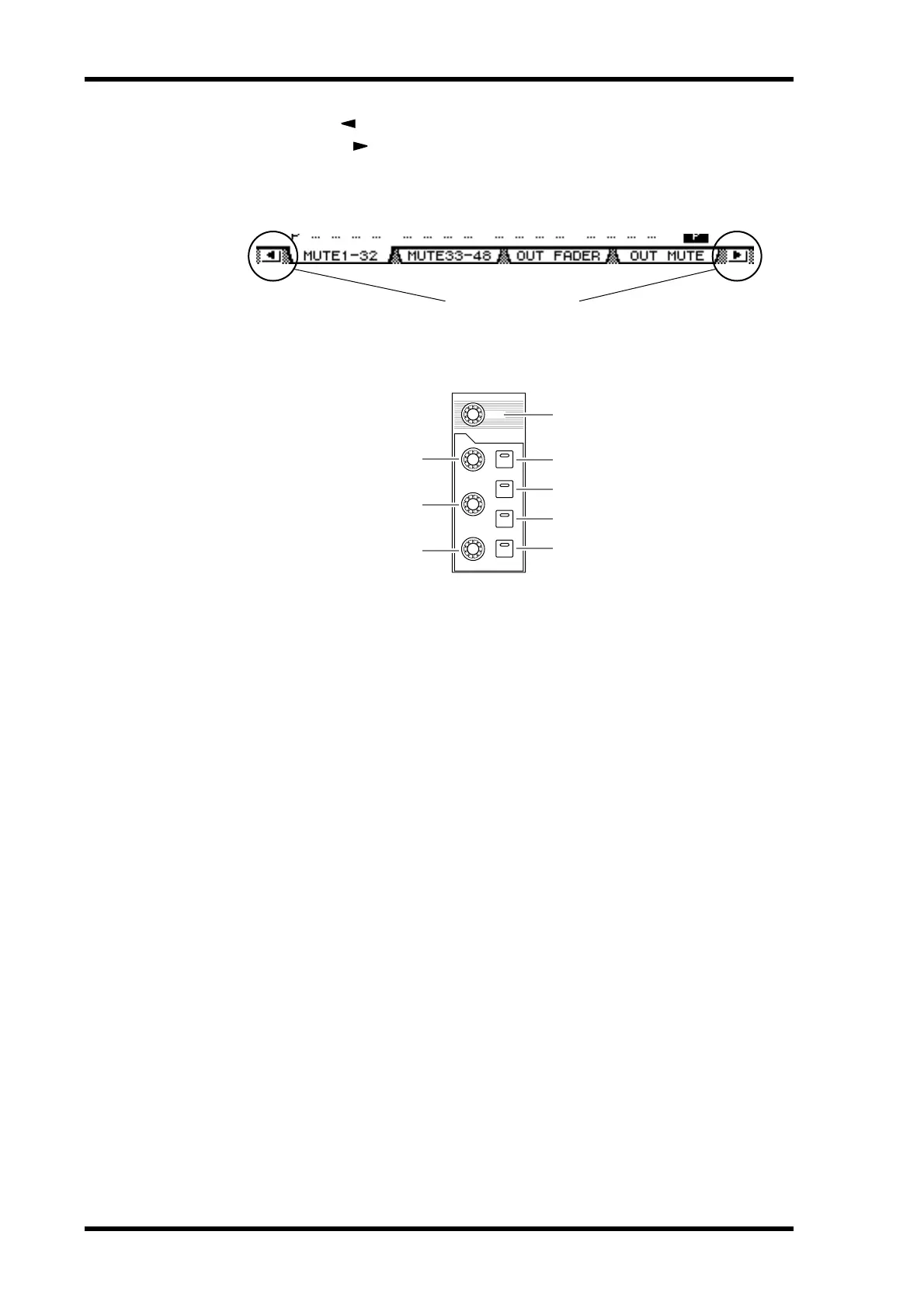

Tab Scroll arrow
EQUALIZER
HIGH
HIGH-MID
LOW-MID
LOW
Q
FREQUENCY
GAIN
SELECTED CHANNEL
PA N
1
2
3
4
5
6
7
8

Yamaha 01V96 Specifications

General

Channels	40
Mic Preamps	16
Bit Depth	24-bit
MIDI	Yes
EQ Bands	4-band Parametric
Aux Sends	8
A/D-D/A Conversion	24-bit
Effects Processors	4
Power Supply	Internal
Type	Digital
Sample Rate	44.1 kHz, 48 kHz
Effects	Yes
USB	No
Weight	33 lbs
Inputs - Other	8 digital
Outputs - Digital	AES/EBU, S/PDIF
Computer Connectivity	No
Sampling Rate	44.1 kHz, 48 kHz
Internal Processing	32-bit
Dynamic Processing	Gate, Compressor, Limiter
Digital I/O	AES/EBU, S/PDIF
Analog I/O	XLR, TRS
Outputs - Main	2
