Monitoring 131
01V96 Version 2—Owner’s Manual
Monitoring
11
11 Monitoring
This chapter explains how to set up monitoring and use the Solo function on the 01V96.
Monitor
The 01V96 features the stereo signal path to feed the monitors. The monitoring signal
source is patched to MONITOR OUT connectors L & R and the PHONES connector.

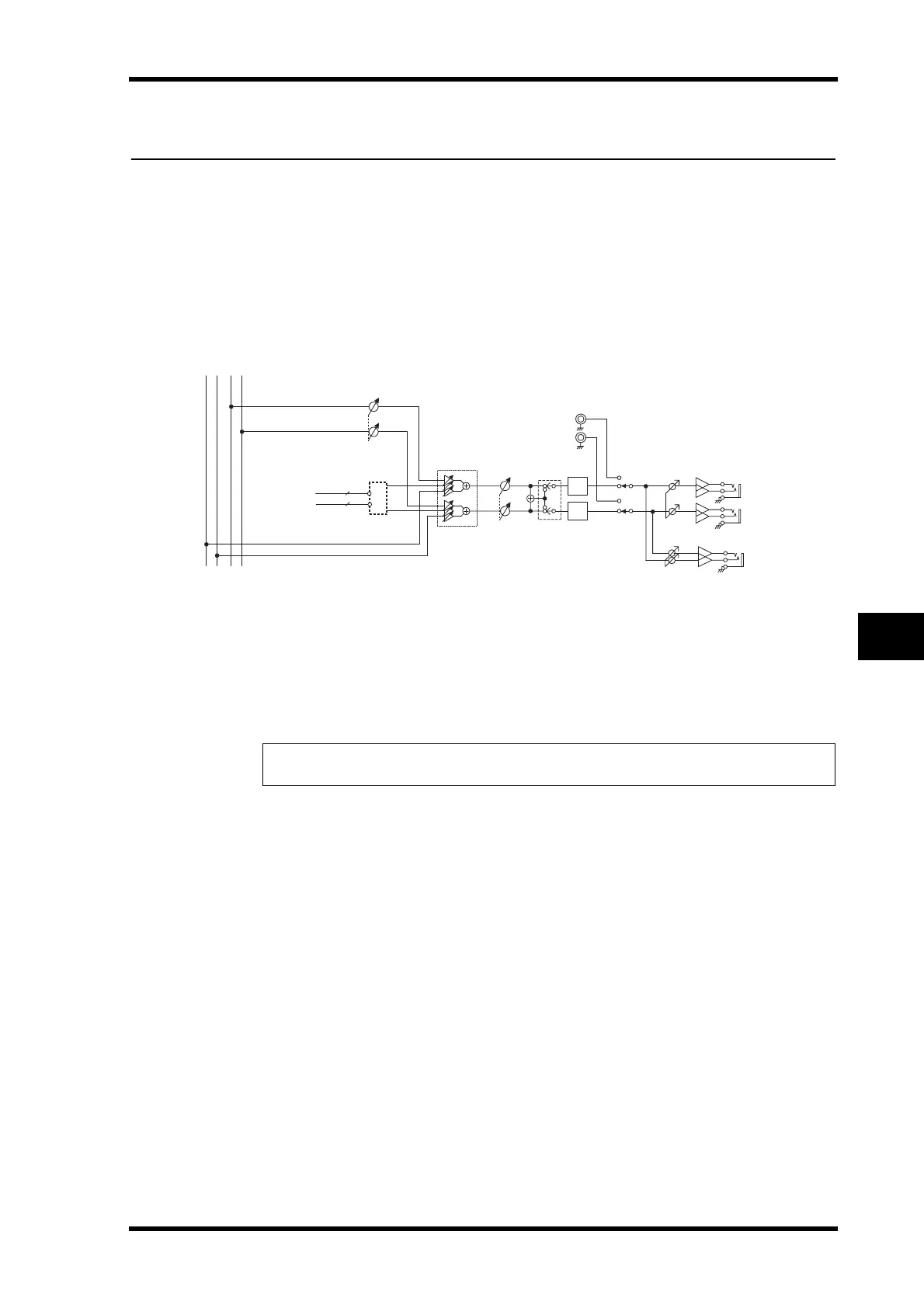

The following diagram illustrates the monitoring signal flow.
• SOLO bus
This special bus routes soloed Input Channels to the Monitor outputs, bypassing Bus 1–8
and the Stereo Bus.
• OUTPUT SOLO
This section routes soloed Output Channels (Aux Out 1–8, Bus Out 1–8) to the Monitor
outputs.
• MONITOR TRIM
This section adjusts the monitoring signal level in the digital domain.
• MONITOR OUT LEVEL
Use the MONITOR [MONITOR OUT] control on the top panel to adjust the monitoring
signal level in the analog domain.
• MONITOR/2TR IN
As a monitoring signal, you can select either the 01V96 internal signals or 2TR IN digital
inputs.
• PHONES
The Monitor signal is also fed to the PHONES jack. You can set the level independently.
Note: Input and Output Channels cannot be solo-monitored simultaneously. The solo func-
tion for the most-recently soloed channels is enabled.
SOLO LOGIC
MONO
BUS1-8
AUX1-8
8
8
OUTPUT SOLO
SOLO TRIM
SOLO R
SOLO L
SOLO L
SOLO R
STEREO L
STEREO R
MONITOR TRIM
[PHONES]
PHONES
LEVEL
[MONITOR OUT]
L
R
MONITOR OUT
LEVEL
DA
DA
[2TR IN]
RCA
L
R
MONITOR
/2TR IN
To Next Page
