216 Chapter 18—MIDI
01V96 Version 2—Owner’s Manual
• SLOT
If an optional “MY8-mLAN” I/O card is installed in the slot, MIDI data transfer to and from
an external MIDI device is available via the MY8-mLAN card.
MIDI Port Setup
Selecting a Port for MIDI Message Transfer

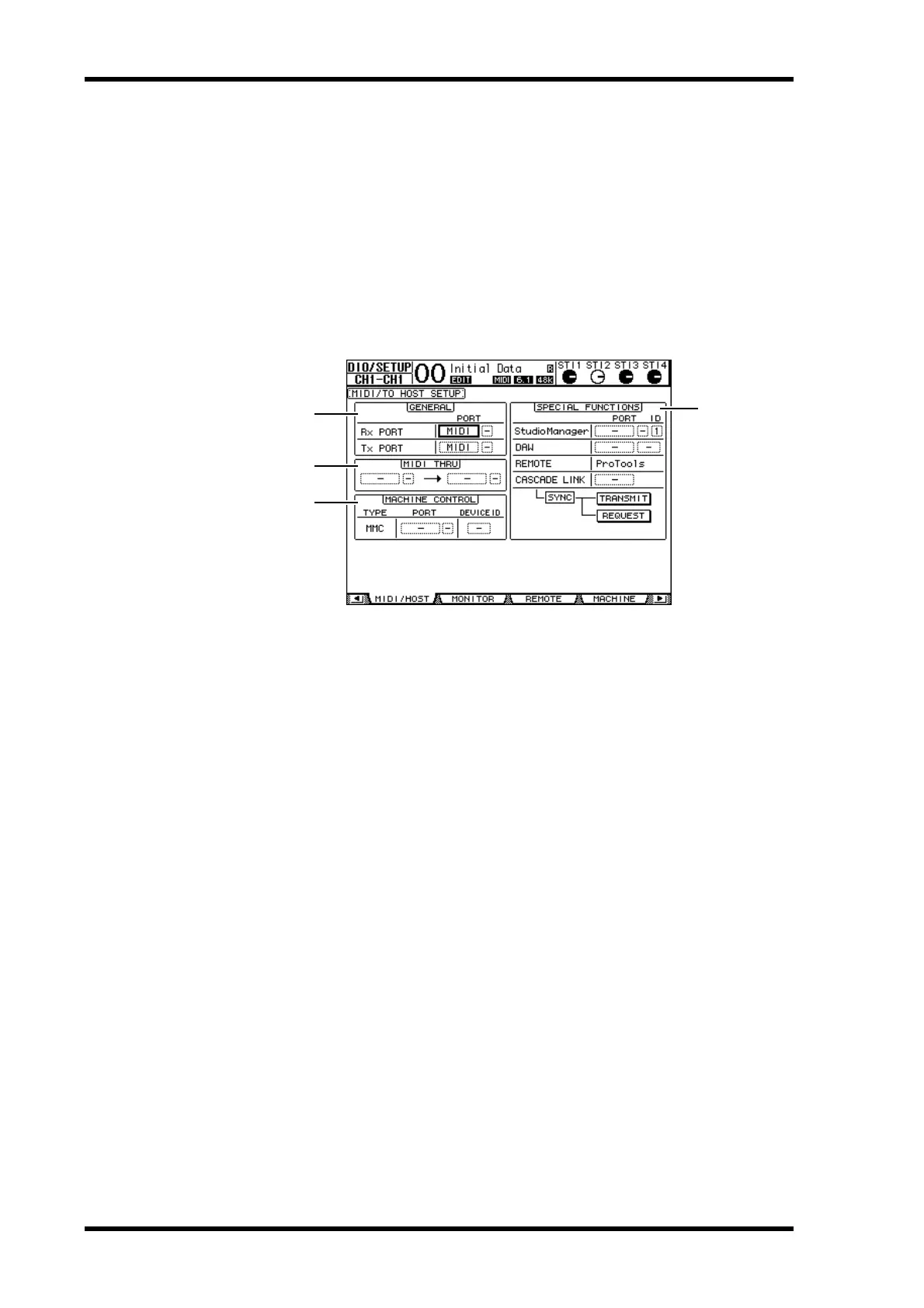

To configure MIDI ports for MIDI message transfer, press the DISPLAY ACCESS
[DIO/SETUP] button repeatedly until the DIO/Setup | MIDI/Host page appears. This page
enables you to set MIDI message input and output.
The following parameters are available on this page:
A GENERAL section
This section enables you to select ports that transmit and receive MIDI messages, such
as Program Changes and Control Changes.
• Rx PORT ....................... This parameter specifies a port for general MIDI data recep-
tion. In the left parameter box, select MIDI, USB, or SLOT. If
you select USB or SLOT, specify the port number (1–8) in the
right parameter box.
• Tx PORT .......................This parameter specifies a port for general MIDI data transmis-
sion. The available ports are the same as for the Rx PORT
parameter.
B MIDI THRU section
These parameters enable you to route incoming MIDI data from one port or slot to
another without changes. Select a port for reception in the first parameter box, and
select a port for transmission in the next parameter box (located to the right of the
arrow). If you select USB or SLOT, specify the port number in the small parameter box
adjacent to the port parameter box.
C MACHINE CONTROL section
This section enables you to select a remote control method and a remote control port to
control external devices that support MMC, such as a hard disk recorder.
• PORT ............................. Select MIDI, USB, or SLOT for MMC command transfer. If
you select USB or SLOT, specify the port number in the right
parameter box.
