288 Appendix B: Specifications
01V96 Version 2—Owner’s Manual
CONTROL I/O Spec

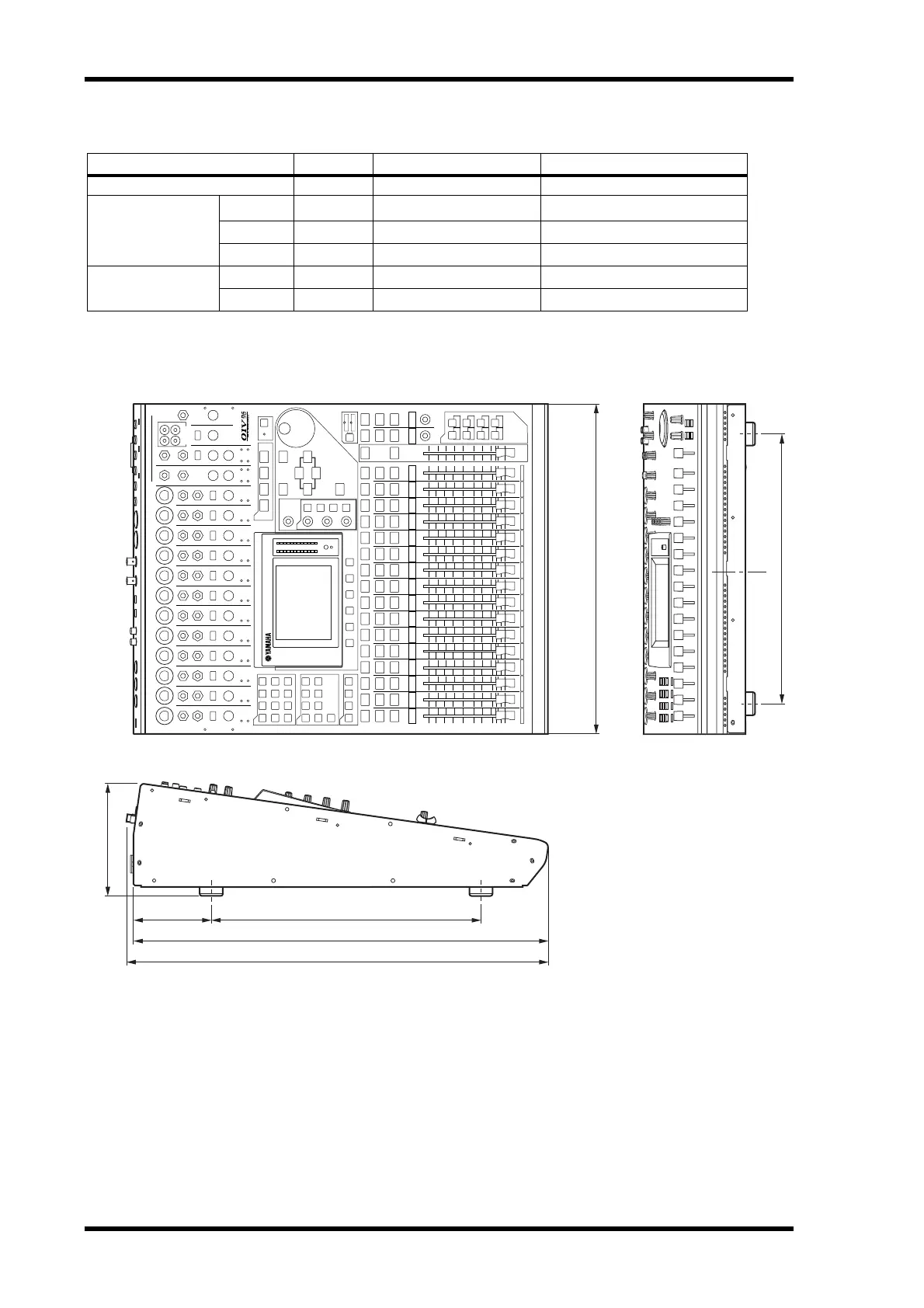

Dimensions
Unit: mm
Specifications and descriptions in this owner’s manual are for information purposes only.
Yamaha Corp. reserves the right to change or modify products or specifications at any time
without prior notice. Since specifications, equipment or options may not be the same in
every locale, please check with your Yamaha dealer.
European Models
Purchaser/User Information specified in EN55103-1 and EN55103-2.
Inrush Current: 20 A
Conforms to Environments: E1, E2, E3 and E4
I/O Port Format Level Connector in Console
TO HOST USB USB 0 V–3.3 V B type USB connector
MIDI
IN
1
1. MIDI IN can use as TIME CODE IN MTC.
MIDI — DIN Connector 5P
OUT
MIDI — DIN Connector 5P
THRU
MIDI — DIN Connector 5P
WORD CLOCK
IN
— TTL/75 Ω BNC Connector
OUT
— TTL/75 Ω BNC Connector
430 (Not included Screw Heads) 436 (Included Screw Heads)
150
540
350101
548
350

Yamaha 01V96 Specifications

General

Channels	40
Mic Preamps	16
Bit Depth	24-bit
MIDI	Yes
EQ Bands	4-band Parametric
Aux Sends	8
A/D-D/A Conversion	24-bit
Effects Processors	4
Power Supply	Internal
Type	Digital
Sample Rate	44.1 kHz, 48 kHz
Effects	Yes
USB	No
Weight	33 lbs
Inputs - Other	8 digital
Outputs - Digital	AES/EBU, S/PDIF
Computer Connectivity	No
Sampling Rate	44.1 kHz, 48 kHz
Internal Processing	32-bit
Dynamic Processing	Gate, Compressor, Limiter
Digital I/O	AES/EBU, S/PDIF
Analog I/O	XLR, TRS
Outputs - Main	2
