Output Patching 123
01V96 Version 2—Owner’s Manual
Input & Output Patching
10
Output Patching
The 01V96’s Stereo Out, Bus Out 1–8, Aux Out 1–8 signals can be patched to any outputs,
ADAT OUT output channels, and slot output channels.

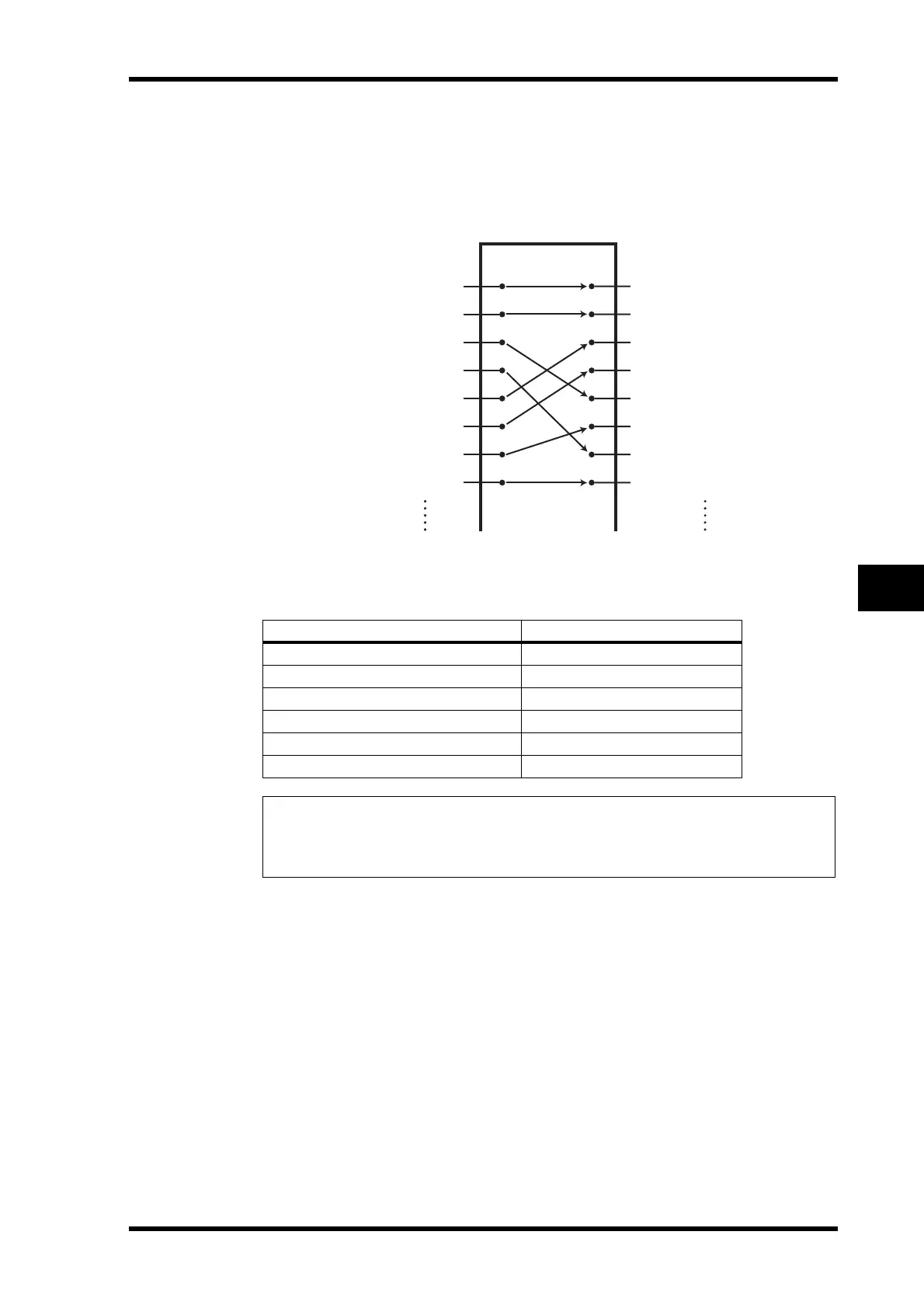

Patch example:
By default, the following signal paths are patched to outputs, ADAT OUT output channels,
and slot output channels:
You can change these patches, if you desire. The procedure for patching signals to output
varies depending on the output connectors and slots.
Output connectors and slot channels Signal flow
ADAT OUT output channels 1–8
Bus Outs 1–8
Slot Channels 1–8
Bus Outs 1–8
Slot Channels 9–16
Bus Outs 1–8
OMNI OUT connectors 1–4
Aux Outs 1–4
2TR OUT DIGITAL (L)
Stereo Out L
2TR OUT DIGITAL (R)
Stereo Out R
Tip:
•You can patch a signal to multiple outputs.
•You can store the Output Patch settings to the Output Patch library. Refer to Chapter 16 for
more information.
Output Patching
Aux Out 1
Aux Out 2
Aux Out 3
Aux Out 4
Aux Out 5
Aux Out 6
Aux Out 7
Aux Out 8
OMNI Out connector 1
OMNI Out connector 2
OMNI Out connector 3
OMNI Out connector 4
OMNI Out connector 1
OMNI Out connector 2
OMNI Out connector 3
OMNI Out connector 4
