Installing an Optional Card
Visit the following Yamaha Pro Audio web site to ensure that the card you are installing is
supported by the 01V96.
<http://www.yamahaproaudio.com/>.
Follow the steps below to install an optional mini-YGDAI card.
1 Make sure that the power to the 01V96 is turned off.

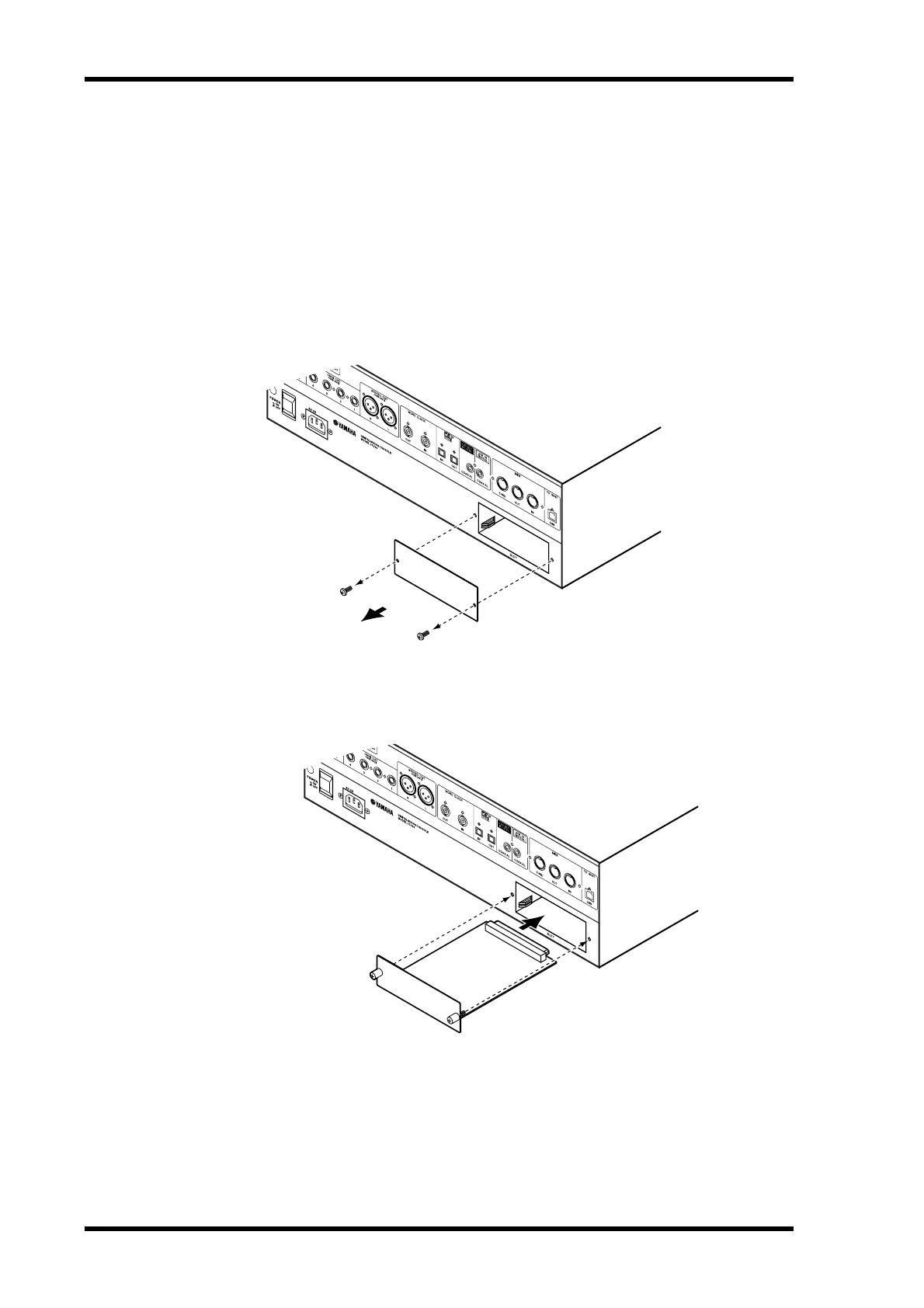

2 Undo the two fixing screws and remove the slot cover, as shown below.
Keep the cover and fixing screws in a safe place for future use.
3 Insert the card between the guide rails and slide it all the way into the slot,
as shown below.
You may have to push firmly to fully insert the card into the internal connector.
4 Secure the card using the attached thumbscrews.
Tighten the screws firmly to secure the card. Otherwise, the card may not be grounded cor-
rectly.

Yamaha 01V96 Specifications

General

Channels	40
Mic Preamps	16
Bit Depth	24-bit
MIDI	Yes
EQ Bands	4-band Parametric
Aux Sends	8
A/D-D/A Conversion	24-bit
Effects Processors	4
Power Supply	Internal
Type	Digital
Sample Rate	44.1 kHz, 48 kHz
Effects	Yes
USB	No
Weight	33 lbs
Inputs - Other	8 digital
Outputs - Digital	AES/EBU, S/PDIF
Computer Connectivity	No
Sampling Rate	44.1 kHz, 48 kHz
Internal Processing	32-bit
Dynamic Processing	Gate, Compressor, Limiter
Digital I/O	AES/EBU, S/PDIF
Analog I/O	XLR, TRS
Outputs - Main	2
