Patching Direct Outs 125
01V96 Version 2—Owner’s Manual
Input & Output Patching
10

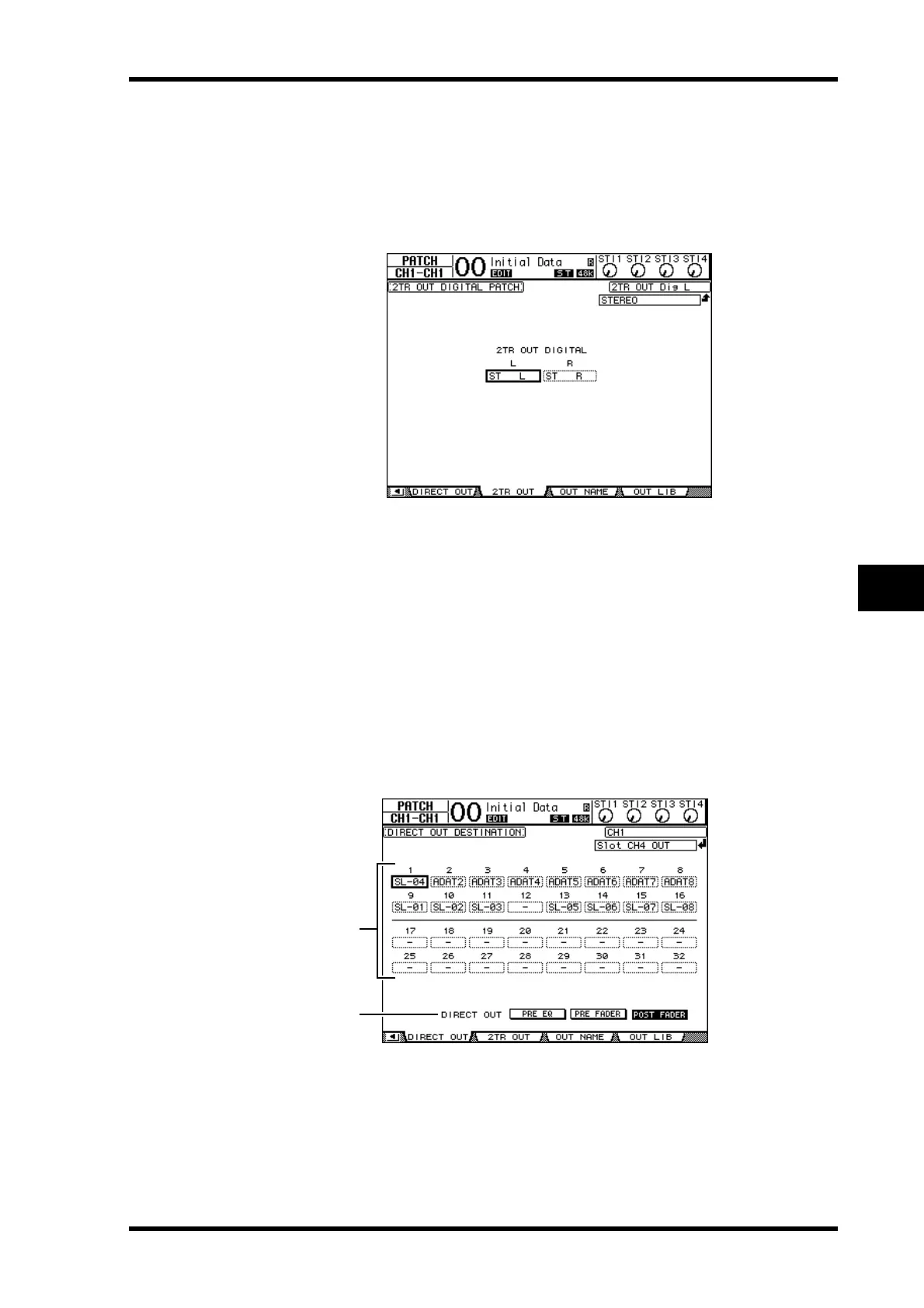

Patching the 2TR Digital Outputs
Follow the steps below to change the signal path patched to the 2TR OUT DIGITAL con-
nector.
1 Press the DISPLAY ACCESS [PATCH] button repeatedly until the Patch | 2TR
Out page appears.
Signals assigned on the Out Patch page can also be assigned on this page.
2 Move the cursor to a patch parameter you wish to change, then rotate the
Parameter wheel or press the [INC]/[DEC] buttons to modify the patching.
3 Press [ENTER] to confirm the change.
Patching Direct Outs
Input Channel 1–32 signals can be directly patched to any outputs or slot outputs, as well
as Bus Out 1–8 and Stereo Out. This patching is convenient when you wish to record each
Input Channel signal to an individual track on a connected recorder.
1 Press the DISPLAY ACCESS [PATCH] button repeatedly until the Patch | Direct
Out page appears.
The parameters on this page are described below.
A 1–32
These boxes indicate the Direct Out destination (outputs, ADAT OUT output channels,
and slot output channels) for Input Channels 1–32.
B DIRECT OUT
Determines the Direct Out signal source position from the following three options:
1
2

Yamaha 01V96 Specifications

General

Channels	40
Mic Preamps	16
Bit Depth	24-bit
MIDI	Yes
EQ Bands	4-band Parametric
Aux Sends	8
A/D-D/A Conversion	24-bit
Effects Processors	4
Power Supply	Internal
Type	Digital
Sample Rate	44.1 kHz, 48 kHz
Effects	Yes
USB	No
Weight	33 lbs
Inputs - Other	8 digital
Outputs - Digital	AES/EBU, S/PDIF
Computer Connectivity	No
Sampling Rate	44.1 kHz, 48 kHz
Internal Processing	32-bit
Dynamic Processing	Gate, Compressor, Limiter
Digital I/O	AES/EBU, S/PDIF
Analog I/O	XLR, TRS
Outputs - Main	2
