72 Chapter 6—Analog I/O & Digital I/O
01V96 Version 2—Owner’s Manual
See the Yamaha Professional Audio Web site at the following URL for up-to-date news on
I/O cards:
<http://www.yamahaproaudio.com/>.
Converting Sampling Rates of Signals Received at I/O
Card Inputs
An optional MY8-AE96S Digital I/O card features sampling rate converters, so you can eas-
ily convert the sampling frequency of digital inputs to the current 01V96 sampling rate.

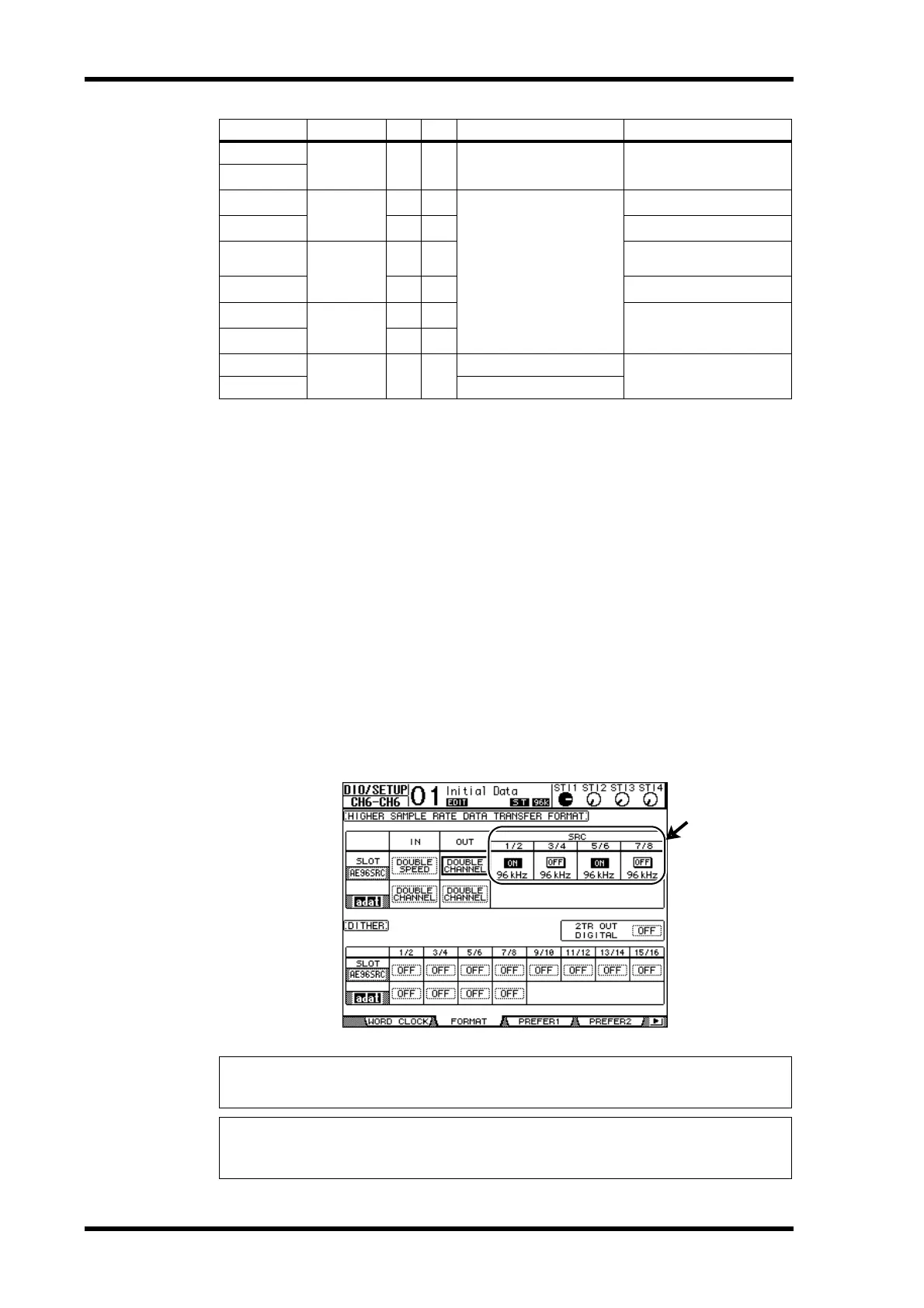

1 Press the DISPLAY ACCESS [DIO/SETUP] button repeatedly until the
DIO/Setup | Format page appears.
Use the buttons in the SRC sections to turn the sampling rate converters on and off. You can
turn the sampling rate converters of the digital I/O card on or off in pairs (odd & even chan-
nels, in this order).
MY8-AE96
AES/EBU I/O 8 8 24-bit, 44.1/48/88.2/96 kHz
D-sub 25-pin
MY8-AE96S
3
MY8-AT
2
ADAT I/O
88
24-bit, 44.1/48 kHz
Optical x2
MY16-AT
2
16 16 Optical x4
MY8-TD
2
Tascam
88
D-sub 25-pin
BNC wordclock output
MY16-TD
2
16 16 D-sub 25-pin
MY8-mLAN
2
IEEE1394
88
6-pin 1394 connector x2
MY16-mLAN
2
16 16
WAVES Y56K
ADAT 8 8
24-bit, 44.1/48 kHz
Optical x2
WAVES Y96K
24-bit, 44.1/48/88.2/96 kHz
1. This card is a substitution for a 20-bit MY8-AD card.
2. These cards support 24-bit/96 kHz in Double Channel mode. (Separate 96 kHz wordclock required.)
3. This card is identical to the MY8-AE96, except that it features a sampling rate converter.
Tip: The FS box on the Word Clock page displays the sampling frequency at which the 01V96
is currently operating.
Note: The sampling rate converter is available only on the Yamaha MY8-AE96S Digital I/O
card. If you have installed another type of I/O card in the slot, or if no card is installed in the
01V96, the buttons in the SRC sections are disabled.
Card Format In Out Resolution/Sampling Rate Connectors
