142 Chapter 12—Surround Pan
01V96 Version 2—Owner’s Manual
Surround Panning
You can set the surround pan parameters for each Input Channel.
1 Make sure that the 01V96 is in any Surround mode except Stereo, then press
the [SEL] button of the channel for which you want to set surround pan.
2 Press the DISPLAY ACCESS [PAN/ROUTING] button repeatedly until the
Pan/Route | Ch Edit page appears.
The Ch Edit page displays the selected Input Channel, and its surround pan setting and
available pair partner.

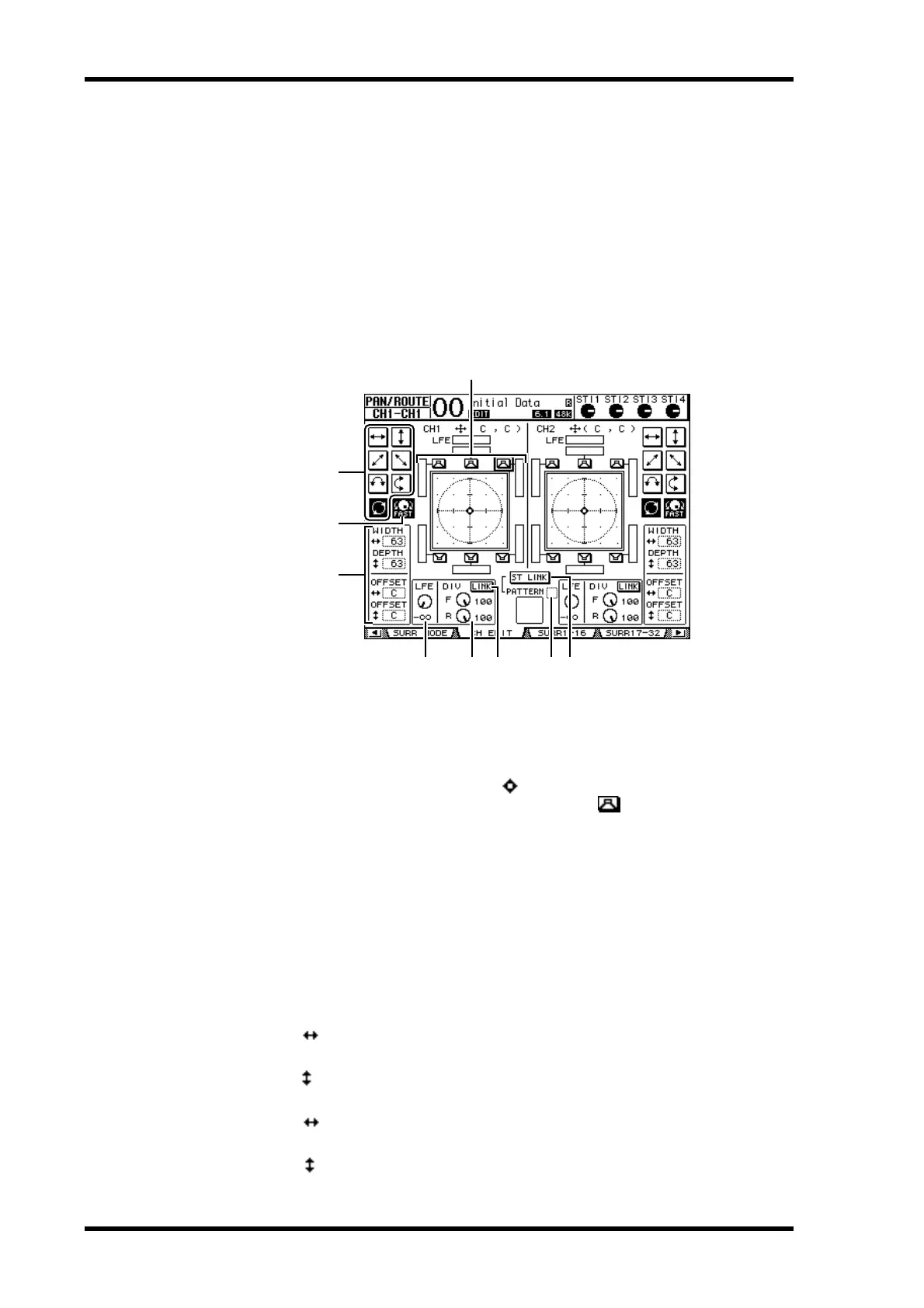

The following display page is an example in 6.1 Surround mode.
The following parameters are available on this page:
A Surround pan graph
This graph indicates the pan positions in a two-dimensional field, with the listening
position in the center. A small diamond ( ) indicates the current surround pan posi-
tion. You can move the current surround pan position ( ) directly to one of the
speaker icons by selecting its icon, then pressing [ENTER].
B Trajectory patterns
These buttons represent seven trajectory patterns that determine how the surround pan
moves when you operate the Parameter wheel or the [INC]/[DEC] buttons.
C FAST
Tur ning on this button increases the speed of sound images panned via the Parameter
wheel.
D Trajectory pattern parameters
These parameters fine-tune the surround pan trajectory pattern.
• WIDTH ................... This parameter sets the left-to-right width of the selected tra-
jectory pattern.
• DEPTH ....................This parameter sets the front-to-rear width of the selected tra-
jectory pattern.
• OFFSET ................... This parameter offsets the left-to-right direction of the selected
trajectory pattern.
• OFFSET ................... This parameter offsets the front-to-rear direction of the
selected trajectory pattern.
2
1
3
4
5 6 97 8
