Yamaha 01V96 User Manual

Control Surface 17
01V96 Version 2—Owner’s Manual
2

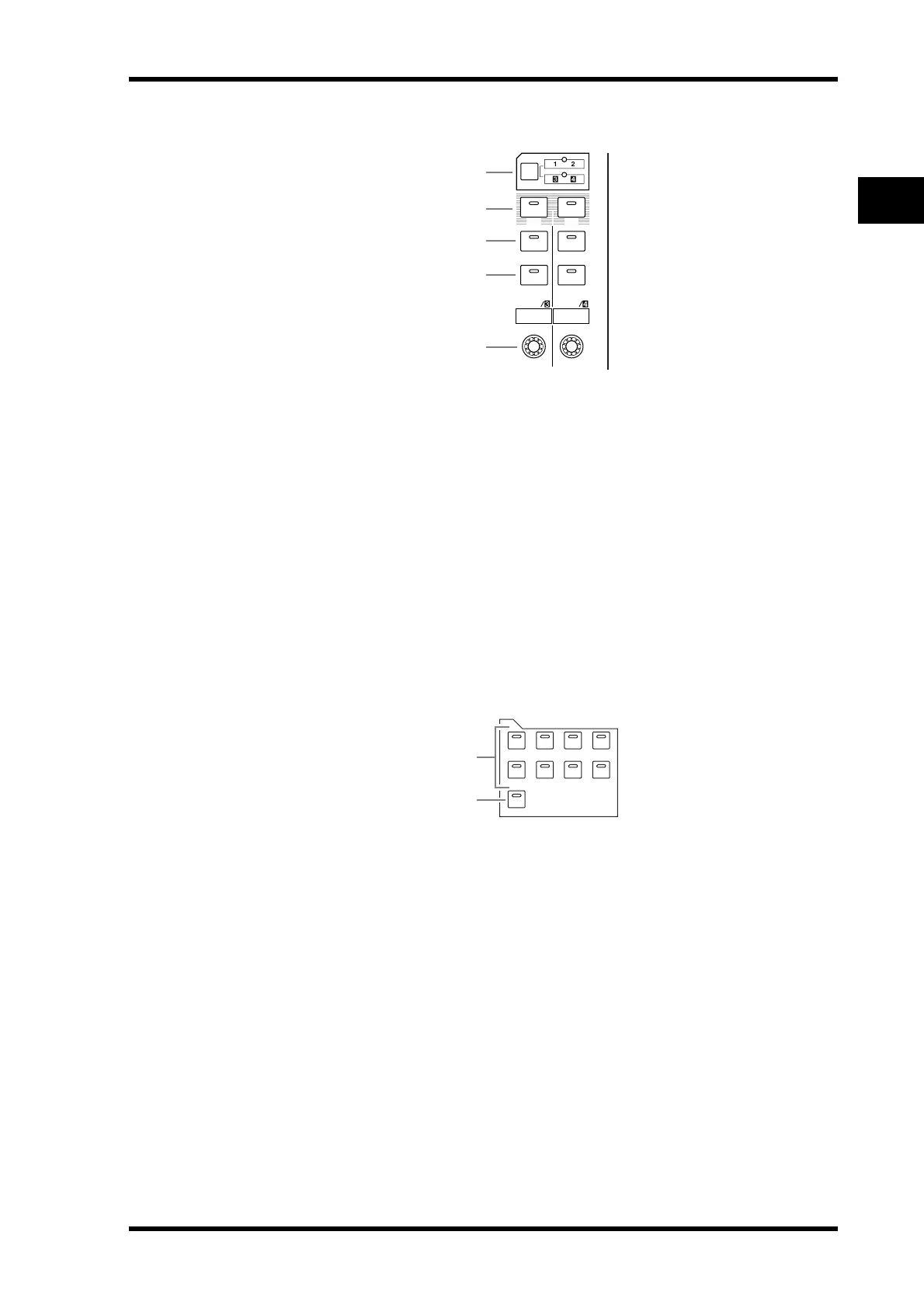

Control Surface & Rear Panel
ST IN Section
A [ST IN] button
This button selects an ST IN channel pair (ST IN Channels 1 & 2 or 3 & 4) which you can
control using the buttons and controls in the ST IN section. The indicators to the right of
the button indicate the available ST IN channels.
B [SEL] buttons
These buttons select the ST IN channel you want to control.
C [SOLO] buttons
These buttons solo the selected ST IN channels.
D [ON] buttons
These buttons turn the ST IN channels on or off.
E Level controls
These controls adjust the ST IN channel levels.
FADER MODE Section
A [AUX 1]–[AUX 8] buttons
These buttons enable you to select the Aux Send you wish to control. Pressing one of these
buttons switches the Fader mode (see page 33), and displays the corresponding Aux page.
(The selected button’s indicator lights up.)
You can now adjust the send level of signals routed from Input Channels to the correspond-
ing Aux buses by using the faders.
B [HOME] button
This button recalls Meter pages that display Input Channel levels or Output Channel (Bus
Out, Aux Out, Stereo Out) levels (see page 34).
SOLO
ON
SOLO
ON
SEL SEL
ST IN
ST IN 1 ST IN 2
1
2
3
4
5
FADER MODE
AUX 1 AUX 2 AUX 3 AUX 4
AUX 8AUX 7AUX 6AUX 5
HOME (METER)
1
2

Yamaha 01V96 Specifications

General

Channels	40
Mic Preamps	16
Bit Depth	24-bit
MIDI	Yes
EQ Bands	4-band Parametric
Aux Sends	8
A/D-D/A Conversion	24-bit
Effects Processors	4
Power Supply	Internal
Type	Digital
Sample Rate	44.1 kHz, 48 kHz
Effects	Yes
USB	No
Weight	33 lbs
Inputs - Other	8 digital
Outputs - Digital	AES/EBU, S/PDIF
Computer Connectivity	No
Sampling Rate	44.1 kHz, 48 kHz
Internal Processing	32-bit
Dynamic Processing	Gate, Compressor, Limiter
Digital I/O	AES/EBU, S/PDIF
Analog I/O	XLR, TRS
Outputs - Main	2
