Input and Output Patching 43
01V96 Version 2—Owner’s Manual
Connections and Setup
4
Input and Output Patching
The 01V96 is designed to enable you to patch (assign) signals to Inputs and Outputs. This
section explains how to view the signals patched to Inputs and Outputs and change the
assignment.
Patching Input Channels
By default, the Input Channels are patched as follows:
• INPUT connectors 1–16.................... Input Channels 1–16
• ADAT IN channels 1–8....................... Input Channels 17–24
• Slot channels 1–8 ................................ Input Channels 25–32
•Outputs 1–2 of Internal Effects
Processor 1–4 ...................................... ST IN Channels 1–4
Follow the steps below to view or change the patching.

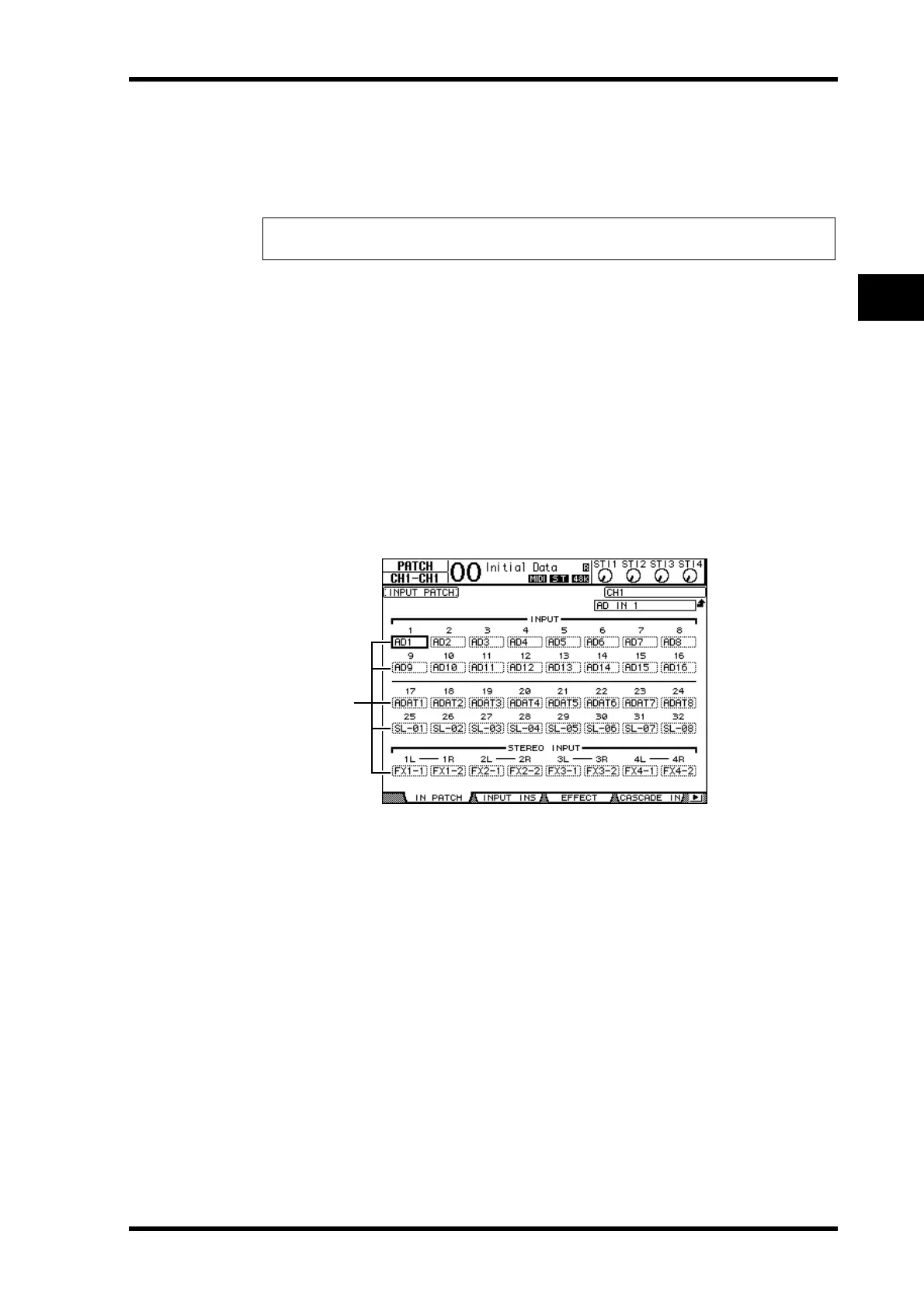

1 Press the DISPLAY ACCESS [PATCH] button repeatedly until the following
page appears.
Inputs and Slot channels that are currently assigned to Input Channels are shown in the
parameter boxes (
1) beneath the channel numbers. The parameter indicators are
explained below:
• - ......................................No assignment
• AD1–AD16....................INPUT connectors 1–16
• ADAT1–ADAT8............ADAT IN channels 1–8
• SL-01–SL-16..................Slot channels 1–16
• FX1-1–FX1-2 ................Outputs 1–2 of Internal Effects Processor 1
• FX2-1–FX2-2 ................Outputs 1–2 of Internal Effects Processor 2
• FX3-1–FX3-2 ................Outputs 1–2 of Internal Effects Processor 3
• FX4-1–FX4-2 ................Outputs 1–2 of Internal Effects Processor 4
• 2TD-L/R ........................2TR IN DIGITAL L/R connectors
Follow the steps below to view or change the patching.
2 Use the cursor buttons to move the cursor to a patch parameter (
1) for
which you want to change the assignment, and rotate the Parameter wheel
or press the [INC]/[DEC] buttons to modify the patching.
Tip: If the data from a connected instrument fails to be input, or if you are unable to monitor
the signal at the desired output, check the I/O patching, as explained below:
