Parameter Details
2
2.11 o: Keypad-Related Settings
YASKAWA TOEPYAIGA5002A GA500 DRIVE PROGRAMMING 427
2.11 o: Keypad-Related Settings
o parameters set keypad functions.
Note:
You cannot use the optional LED keypad to set these parameters.
Table 2.64 Parameters You Cannot Set with the LED Keypad
No. Name
o1-05
LCD Contrast Adjustment
o1-24 to o1-35
Custom Monitor 1 to 12
o1-36
LCD Backlight Brightness
o1-37
LCD Backlight ON/OFF Selection
o1-38
LCD Backlight Off-Delay
o1-39
Show Initial Setup Screen
o1-40
Home Screen Display Selection
o1-41 to o1-46
1st to 3rd Monitor Area Selections/Settings
o1-47 to o1-51
Trend Plot 1 or 2 Scale Settings
o1-55 to o1-56
Analog Gauge Area Selection/Setting
o2-27
bCE Detection Selection
No. Name
o3-04
Select Backup/Restore Location
o3-05
Select Items to Backup/Restore
o3-06
Auto Parameter Backup Selection
o3-07
Auto Parameter Backup Interval
o4-22
Time Format
o4-23
Date Format
o4-24
bAT Detection Selection
o5-01
Log Start/Stop Selection
o5-02
Log Sampling Interval
o5-03 to o5-12
Log Monitor Data 1 to 10
◆ o1: Keypad Display Selection
o1 parameters select the parameters shown on the initial keypad screen and to configure the parameter setting units
and display units. These parameters also adjust the backlight and contrast of the LCD display.
■ Home Screen Display Format
o1-40 [Home Screen Display Selection] changes the display of the monitor shown on the Home screen. You can show
numerical values or one of these three displays on the Home screen monitor:
A - Set Ux-xx [Monitors] to o1-24,
o1-25, and o1-26.
B - Set display regions to o1-41, o1-
43, and o1-45.
C - Set display ranges to o1-42, o1-
44, and o1-46.

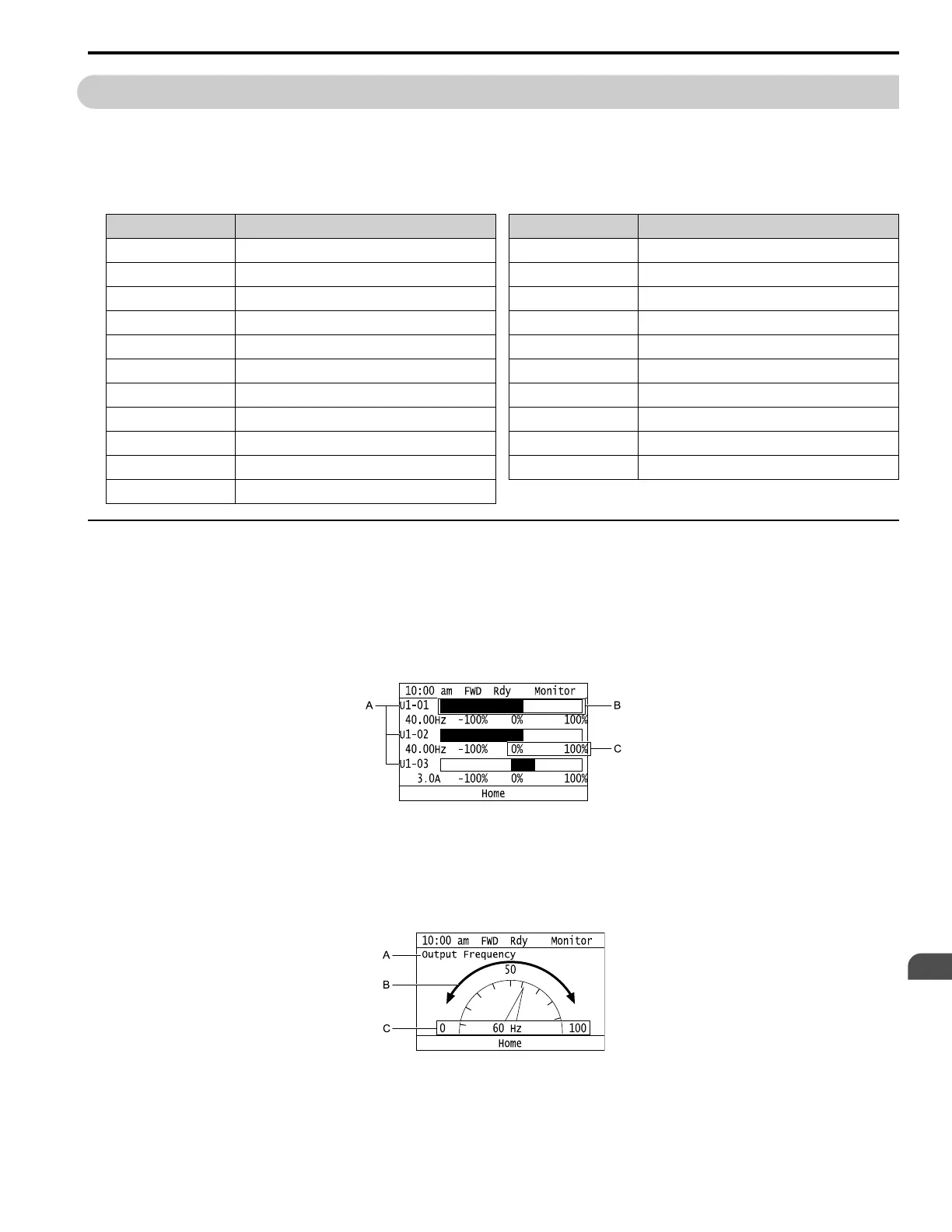

Figure 2.125 Bar Graph Display
A - Set Ux-xx [Monitors] to o1-24.
B - Set display regions to o1-56.
C - Set display ranges to o1-55.
Figure 2.126 Analog Gauge Display
