3.3 Keypad Operation
YASKAWA TOEPYAIGA5002A GA500 DRIVE PROGRAMMING 467
Note:
The drive will only display A1-02 [Control Method Selection], A1-xx, A2-01 to A2-32 [User Parameter 1 to User Parameter 32], and E5-01
[PM Motor Code Selection].

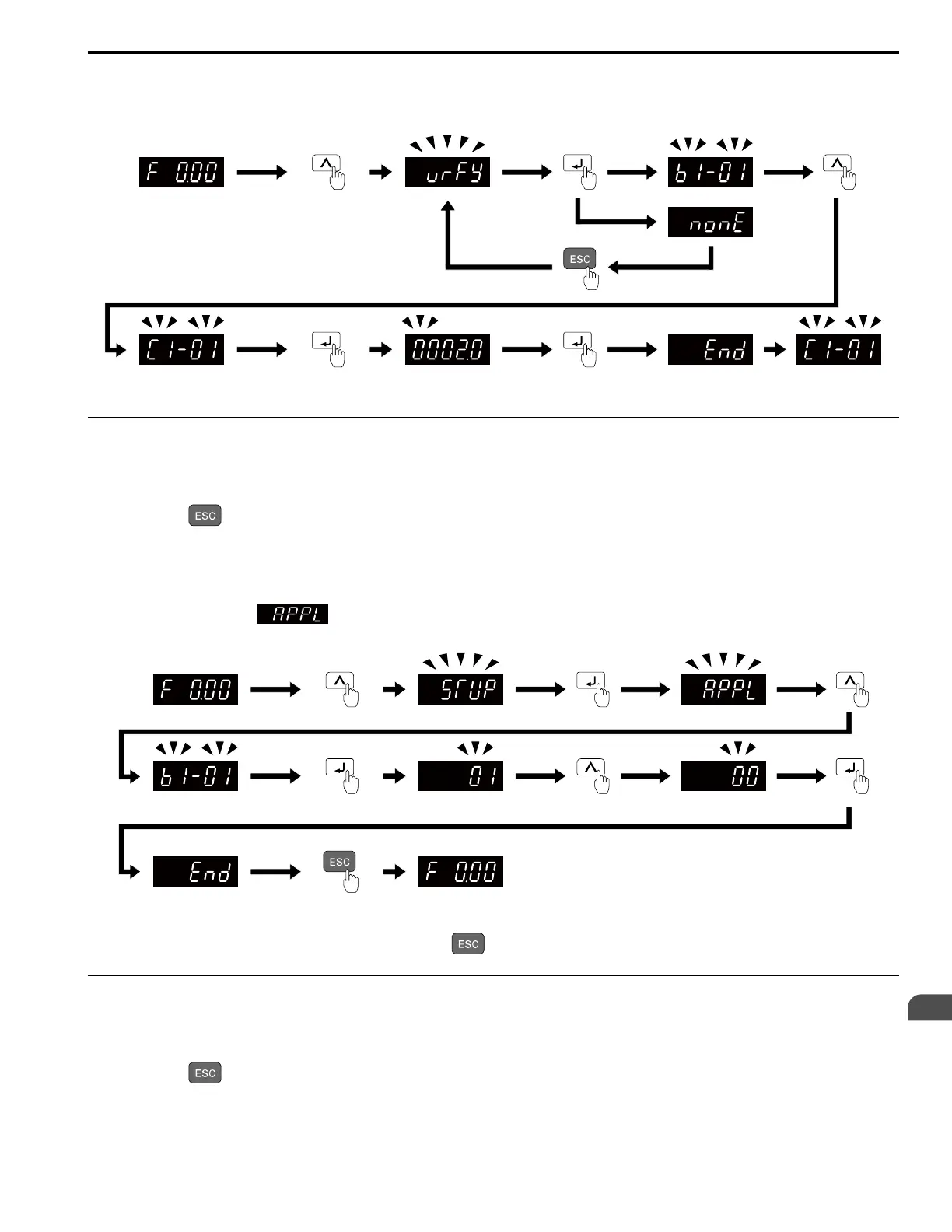

Figure 3.12 How to Examine the Changed Parameters
◆ Set and View Necessary Parameters
Show the frequency reference screen.
Note:
Push and hold to return to frequency reference screen from any screen.
The setup mode shows the parameters set in A2-01 to A2-32 [User Parameter 1 to User Parameter 32]. This lets you
quickly access and change these parameters.
Note:
Setup mode always shows (A1-06 [Application Preset]) at the top of the list. When you change the setting, the settings for A2-
01 to A2-32 change.
Figure 3.13 View and Set the Necessary Parameters
Continue to change the parameters or press and hold to go back to the frequency reference screen.
◆ Change Parameter Settings
Show the frequency reference screen in advance.
Note:
Push and hold to go back to the frequency reference screen from any screen.
This example shows how to change C1-01 [Acceleration Time 1]. Set the parameter to the necessary value.
To Next Page
