5.3 Control Circuit Wiring

502 YASKAWA TOEPYAIGA5002A GA500 DRIVE PROGRAMMING

5.3 Control Circuit Wiring

This section gives information about how to correctly wire the control circuit.

◆ Control Circuit Connection Diagram

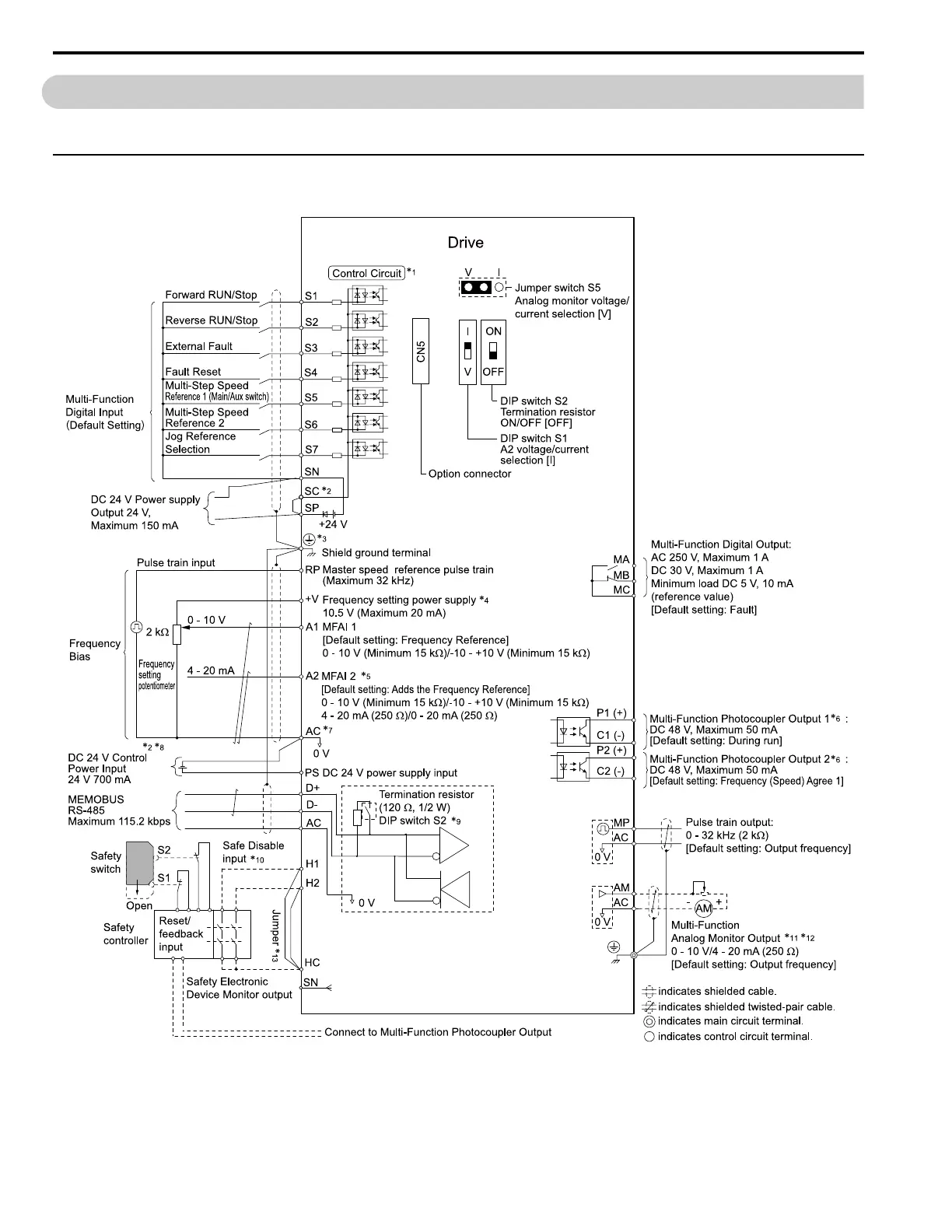

Wire the drive control circuit as shown in Figure 5.2.

Figure 5.2 Control Circuit Connection Diagram

*1 Connect a 24 V power supply to terminals PS-AC to operate the control circuit while the main circuit power supply is OFF.
