Mechanical Installation
4
4.2 Removing/Reattaching Covers
YASKAWA TOEPYAIGA5002A GA500 DRIVE PROGRAMMING 491
4.2 Removing/Reattaching Covers
DANGER! Electrical Shock Hazard. Do not examine, connect, or disconnect wiring on an energized drive. Before servicing,
disconnect all power to the equipment and wait for the time specified on the warning label at a minimum. The internal capacitor
stays charged after the drive is de-energized. The charge indicator LED extinguishes when the DC bus voltage decreases below 50
Vdc. When all indicators are OFF, measure for dangerous voltages to make sure that the drive is safe. If you do work on the drive
when it is energized, it will cause serious injury or death from electrical shock.

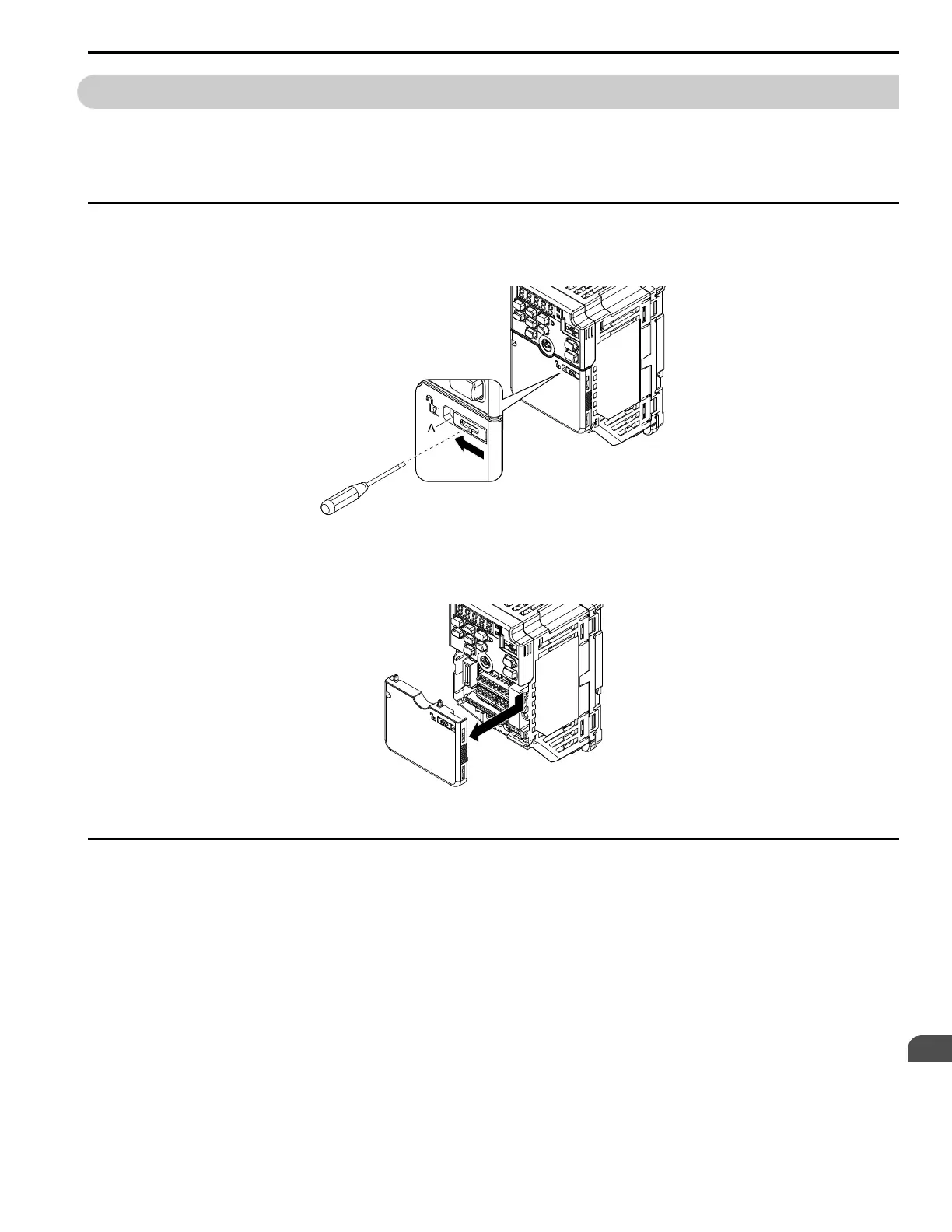

◆ Remove the Front Cover
1.
Use a slotted screwdriver to unlock the front cover of the drive.
Use a slotted screwdriver with a tip width of 2.5 mm (0.1 in) or less and a thickness of 0.4 mm (0.02 in) or less.
A - Front cover lock
Figure 4.1 Unlocking
2. Pull down, then pull away from the drive to remove the front cover.
Figure 4.2 Remove the Front Cover
◆ Reattach the Front Cover
1.
Reverse the steps to reattach the cover.
Note:
Make sure that you do not pinch wires or signal lines between the front cover and the drive before you reattach the cover.
