Chapter 8 Home Networking
LTE Series User’s Guide
144

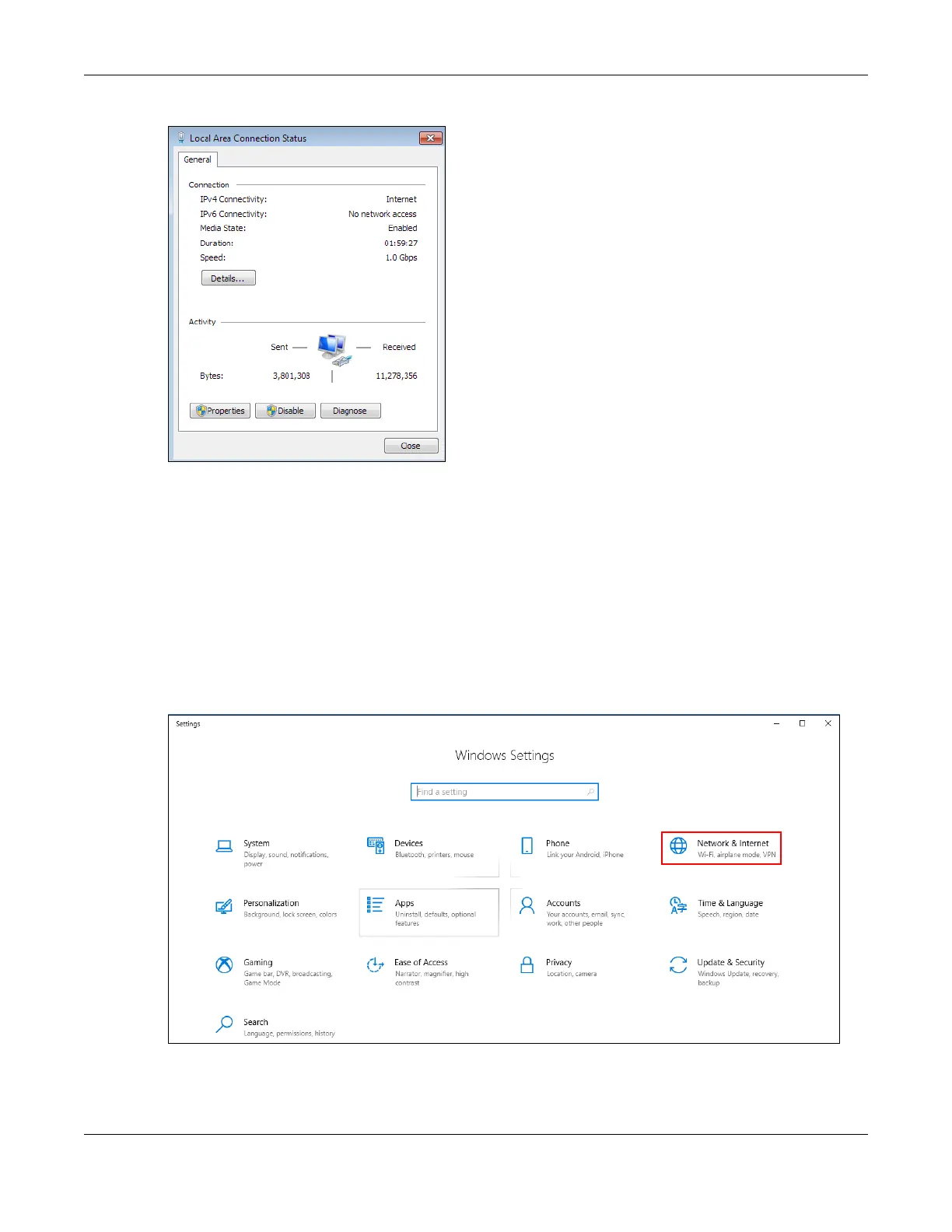

Figure 100 Internet Connection Status
8.7 Turn on UPnP in Windows 10 Example
This section shows you how to use the UPnP feature in Windows 10. UPnP server is installed in Windows 10.
Activate UPnP on the Zyxel Device by clicking Network Setting > Home Networking > UPnP.
Make sure the computer is connected to the LAN port of the Zyxel Device. Turn on your computer and
the Zyxel Device.
1 Click the start icon, Settings and then Network & Internet.
2 Click Network and Sharing Center.

ZyXEL Communications LTE5388-M804 Specifications

General

DSL WAN	No
Ethernet WAN	Yes
WAN connection type	RJ-45
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	1733 Mbit/s
WLAN data transfer rate (first band)	300 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
4G standard	LTE-TDD & LTE-FDD
3G standards	HSPA+, HSUPA, WCDMA
UMTS bands supported	850, 900, 1800, 2100 MHz
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	2
MAC address table	64 entries
Security algorithms	WPA, WPA2
Supported network protocols	IPv4/IPv6
Product type	Tabletop router
Product color	Grey, White
LED indicators	LTE, Power, USB, WLAN
Power source type	DC
Power consumption (typical)	24 W
Certification	CE, WEEE, RoHS, HSF
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Cables included	LAN (RJ-45), Phone (RJ-11)
Package type	Box
Package depth	170 mm
Package width	247 mm
Package height	120 mm
Package weight	1600 g
Harmonized System (HS) code	85176990

Weight and Dimensions

Width	100 mm
Height	205 mm
Weight	599 g
