LTE Series User’s Guide
195
CHAPTER 14
MAC Filter
14.1 MAC Filter Overview
You can configure the Zyxel Device to permit access to clients based on their MAC addresses in the
MAC Filter screen. This applies to wired and wireless connections. Every Ethernet device has a unique
MAC (Media Access Control) address. The MAC address is assigned at the factory and consists of six
pairs of hexadecimal characters, for example, 00:A0:C5:00:00:02. You need to know the MAC addresses
of the LAN client to configure this screen.
14.2 MAC Filter
Enable MAC Address Filter and add the host name and MAC address of a LAN client to the table if you
wish to allow or deny them access to your network. You can choose to enable or disable the filters per
entry; make sure that the check box under Active is selected if you want to use a filter. Select Security >
MAC Filter. The screen appears as shown.

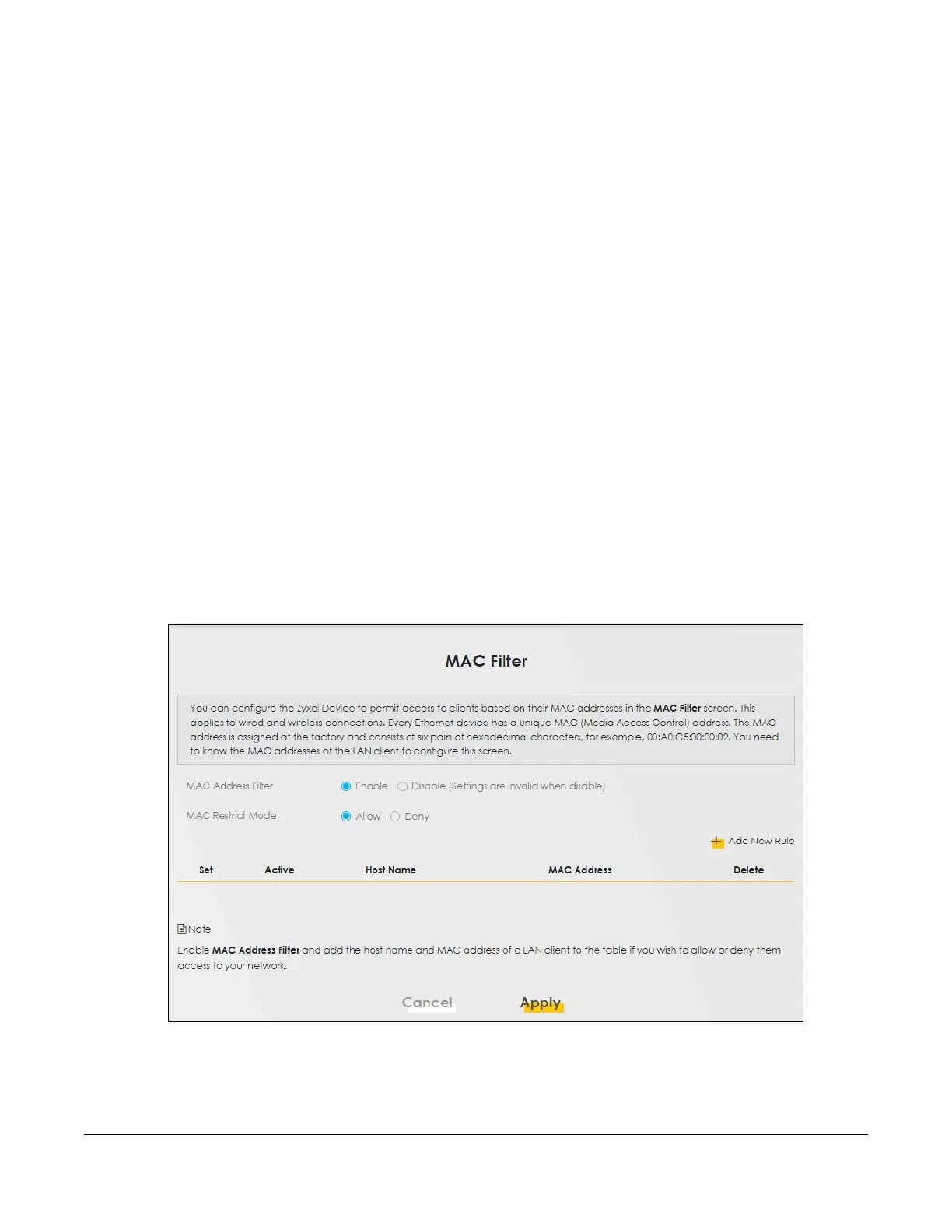

Figure 145 Security > MAC Filter

ZyXEL Communications LTE5388-M804 Specifications

General

DSL WAN	No
Ethernet WAN	Yes
WAN connection type	RJ-45
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	1733 Mbit/s
WLAN data transfer rate (first band)	300 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
4G standard	LTE-TDD & LTE-FDD
3G standards	HSPA+, HSUPA, WCDMA
UMTS bands supported	850, 900, 1800, 2100 MHz
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	2
MAC address table	64 entries
Security algorithms	WPA, WPA2
Supported network protocols	IPv4/IPv6
Product type	Tabletop router
Product color	Grey, White
LED indicators	LTE, Power, USB, WLAN
Power source type	DC
Power consumption (typical)	24 W
Certification	CE, WEEE, RoHS, HSF
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Cables included	LAN (RJ-45), Phone (RJ-11)
Package type	Box
Package depth	170 mm
Package width	247 mm
Package height	120 mm
Package weight	1600 g
Harmonized System (HS) code	85176990

Weight and Dimensions

Width	100 mm
Height	205 mm
Weight	599 g
