ZyXEL Communications LTE5388-M804 User Manual

Chapter 3 Quick Start
LTE Series User’s Guide
46
3.4.2 Unsuccessful Internet Connection
The Zyxel Device didn’t detect a WAN connection.

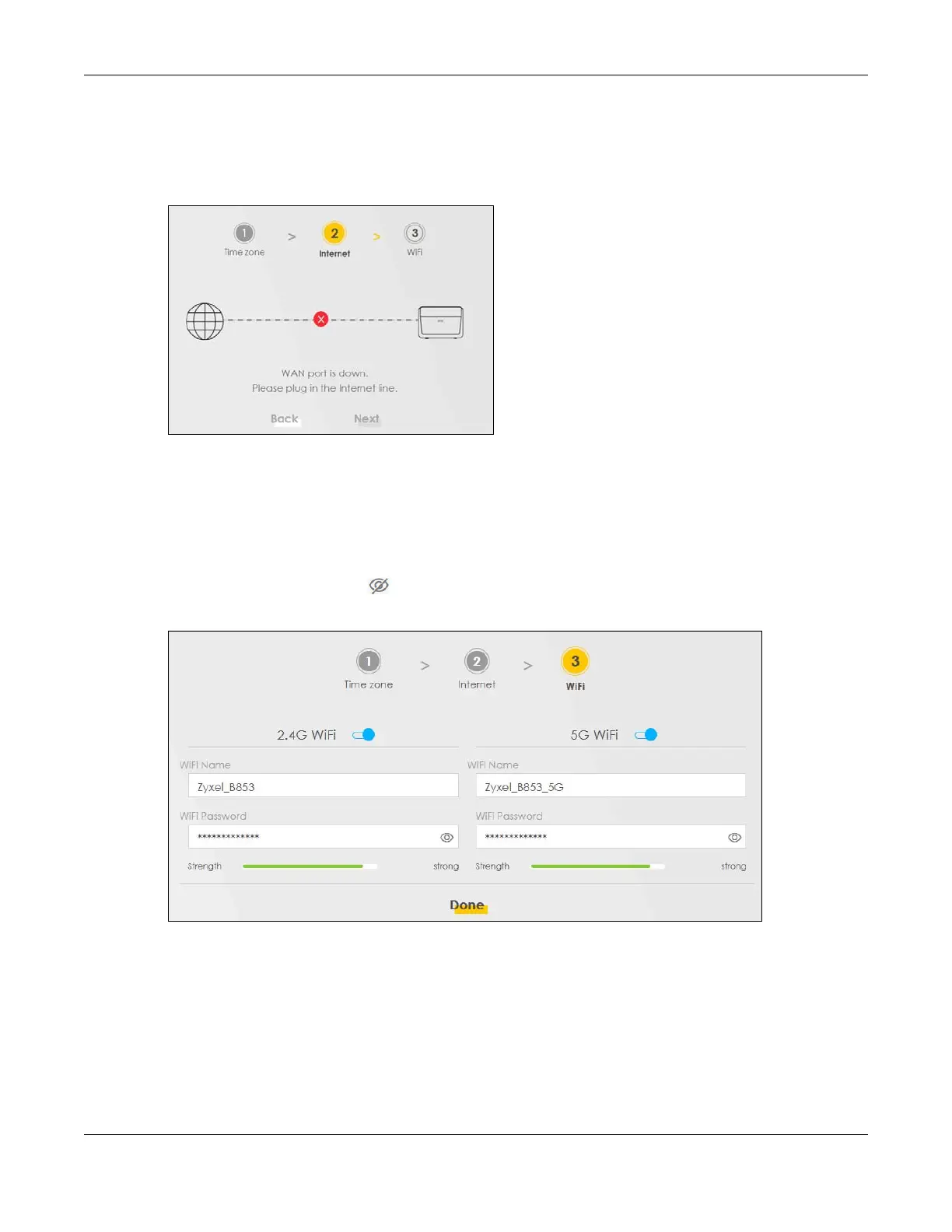

Figure 40 Wizard - Internet Connection is down
3.5 Quick Start Setup-Wireless
Turn WiFi on or off. If you keep it on, record the WiFi Name and Password in this screen so you can
configure your wireless clients to connect to the Zyxel Device. If you want to show or hide your WiFi
password, click the Eye icon ( ).
Figure 41 Wizard - Wireless
Note: You can also enable the wireless service using any of the following methods:
Click Network Setting > Wireless to open the General screen. Then select Enable in the
Wireless field. Or, Press the WiFi button located under the RESET button (see Section
1.5.4 on page 31 for the location and for how long the wireless function is turned on) for
one second.

ZyXEL Communications LTE5388-M804 Specifications

General

DSL WAN	No
Ethernet WAN	Yes
WAN connection type	RJ-45
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	1733 Mbit/s
WLAN data transfer rate (first band)	300 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
4G standard	LTE-TDD & LTE-FDD
3G standards	HSPA+, HSUPA, WCDMA
UMTS bands supported	850, 900, 1800, 2100 MHz
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	2
MAC address table	64 entries
Security algorithms	WPA, WPA2
Supported network protocols	IPv4/IPv6
Product type	Tabletop router
Product color	Grey, White
LED indicators	LTE, Power, USB, WLAN
Power source type	DC
Power consumption (typical)	24 W
Certification	CE, WEEE, RoHS, HSF
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Cables included	LAN (RJ-45), Phone (RJ-11)
Package type	Box
Package depth	170 mm
Package width	247 mm
Package height	120 mm
Package weight	1600 g
Harmonized System (HS) code	85176990

Weight and Dimensions

Width	100 mm
Height	205 mm
Weight	599 g
