ZyXEL Communications LTE5388-M804 User Manual

Chapter 4 Tutorials
LTE Series User’s Guide
63

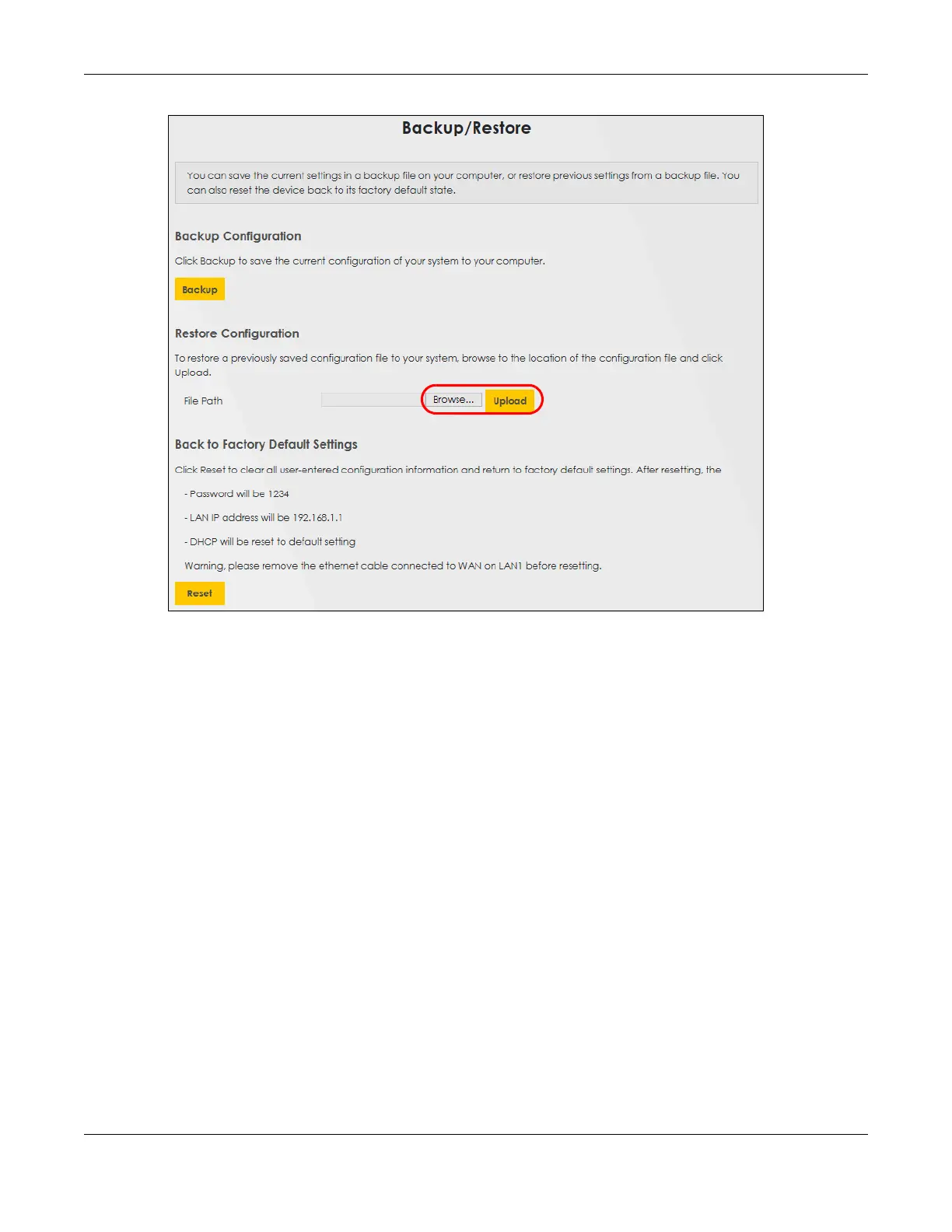

3 The Zyxel Device will restart automatically after the configuration file is successfully uploaded. Wait for
one minute before logging into the Zyxel Device again.
4.11 Connect to the Internet
This section gives you an example on how to connect to the Internet.
1 Insert the SIM Card into your Zyxel Device SIM slot. Make sure this SIM has an active data plan with your
Internet Service Provider (ISP).
2 Connect your Zyxel Device to your computer, and log into the Web Configurator.
3 If your SIM has a PIN Code, enter this code in the Broardband > Cellular SIM screen.
4 Use the Home screen to check the Internet Status (IPv4) or Internet Status (IPv6). If it shows Connected
this means your Internet connection is up.

ZyXEL Communications LTE5388-M804 Specifications

General

DSL WAN	No
Ethernet WAN	Yes
WAN connection type	RJ-45
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	1733 Mbit/s
WLAN data transfer rate (first band)	300 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
4G standard	LTE-TDD & LTE-FDD
3G standards	HSPA+, HSUPA, WCDMA
UMTS bands supported	850, 900, 1800, 2100 MHz
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	2
MAC address table	64 entries
Security algorithms	WPA, WPA2
Supported network protocols	IPv4/IPv6
Product type	Tabletop router
Product color	Grey, White
LED indicators	LTE, Power, USB, WLAN
Power source type	DC
Power consumption (typical)	24 W
Certification	CE, WEEE, RoHS, HSF
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Cables included	LAN (RJ-45), Phone (RJ-11)
Package type	Box
Package depth	170 mm
Package width	247 mm
Package height	120 mm
Package weight	1600 g
Harmonized System (HS) code	85176990

Weight and Dimensions

Width	100 mm
Height	205 mm
Weight	599 g
