ZyXEL Communications LTE5388-M804 User Manual

Chapter 1 Introduction
LTE Series User’s Guide
20

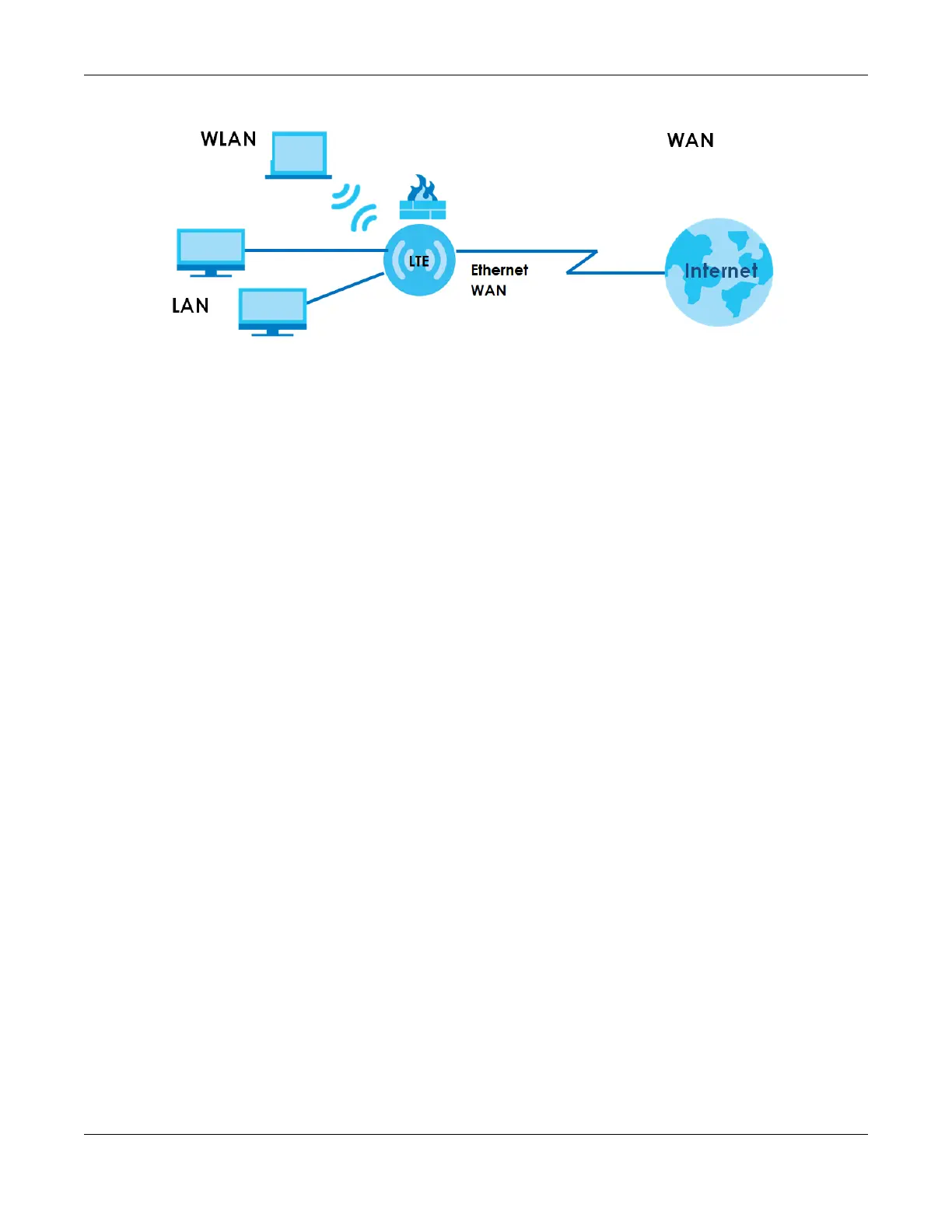

Figure 3 Zyxel Device’s Internet Access Application: Ethernet WAN
1.2.1 WAN Priority (LTE3301-PLUS / LTE5388-M804 / LTE5398-M904 / LTE3316-
M604)
The WAN connection priority is as follows:
1 Ethernet WAN
2 Cellular WAN (3G/4G)
1.3 Manage the Zyxel Device
Use the Web Configurator for management of the Zyxel Device using a (supported) web browser.
1.4 Good Habits for Managing the Zyxel Device
Do the following things regularly to make the Zyxel Device more secure and to manage the Zyxel
Device more effectively.
• Change the password. Use a password that’s not easy to guess and that consists of different types of
characters, such as numbers and letters.
• Write down the password and put it in a safe place.
• Back up the configuration (and make sure you know how to restore it). Refer to Section 33.2 on page
266. Restoring an earlier working configuration may be useful if the Zyxel Device becomes unstable or
even crashes. If you forget your password to access the Web Configurator, you will have to reset the
Zyxel Device to its factory default settings. If you backed up an earlier configuration file, you would
not have to totally re-configure the Zyxel Device. You could simply restore your last configuration.
Write down any information your ISP provides you.

ZyXEL Communications LTE5388-M804 Specifications

General

DSL WAN	No
Ethernet WAN	Yes
WAN connection type	RJ-45
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	1733 Mbit/s
WLAN data transfer rate (first band)	300 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
4G standard	LTE-TDD & LTE-FDD
3G standards	HSPA+, HSUPA, WCDMA
UMTS bands supported	850, 900, 1800, 2100 MHz
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	2
MAC address table	64 entries
Security algorithms	WPA, WPA2
Supported network protocols	IPv4/IPv6
Product type	Tabletop router
Product color	Grey, White
LED indicators	LTE, Power, USB, WLAN
Power source type	DC
Power consumption (typical)	24 W
Certification	CE, WEEE, RoHS, HSF
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Cables included	LAN (RJ-45), Phone (RJ-11)
Package type	Box
Package depth	170 mm
Package width	247 mm
Package height	120 mm
Package weight	1600 g
Harmonized System (HS) code	85176990

Weight and Dimensions

Width	100 mm
Height	205 mm
Weight	599 g
