3.3.9. Inspection, information labels
3HAC023082-001 Revision: E162
© Copyright 2004-2008 ABB. All rights reserved.
3.3.9. Inspection, information labels
Location of labels

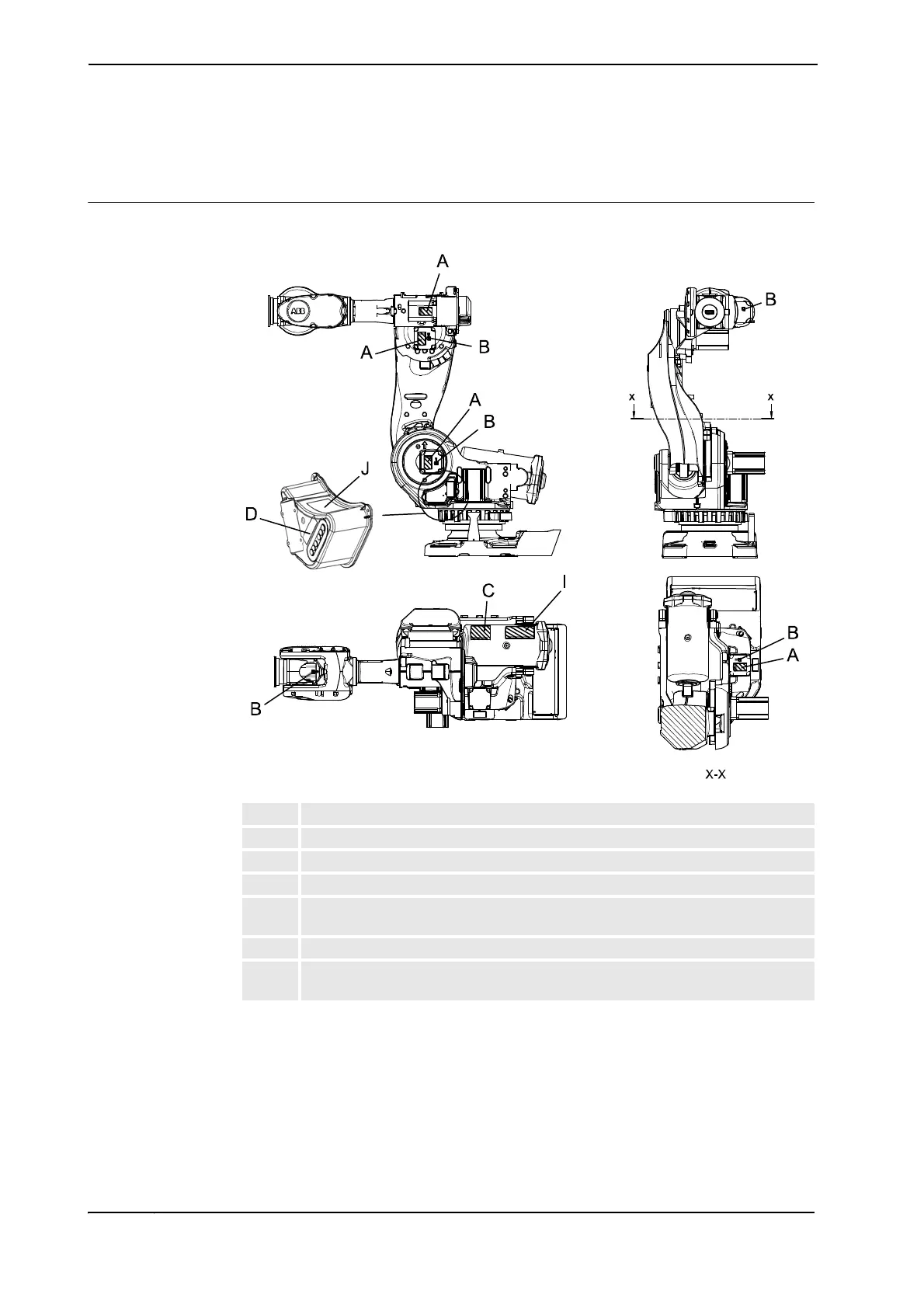

The figures below show the location of the information labels to be inspected.
xx0200000236
A Warning label "High temperature", 3HAC4431-1 (4 pcs)
B Warning sign, symbol of a flash (located on motor cover), 3HAC1589-1 (5 pcs)
C Instruction label "Safety instructions", 3HAC4591-1
D Warning label "Brake release", 3HAC9508-1
I Warning label, tools are not allowed around the balancing device during operation,
3HAC020611-001
J Warning label, "Shut off power", 3HAC17804-1
- Information labels at gearboxes and at robot base, if gearboxes are filled with
Kyodo Yushi TMO 150
