2.5.2. Lifting robot with roundslings
General
The robot may be lifted with roundslings according to the illustration below. The illustration
is identical with the label attached to the robot’s lower arm.
Attachment points

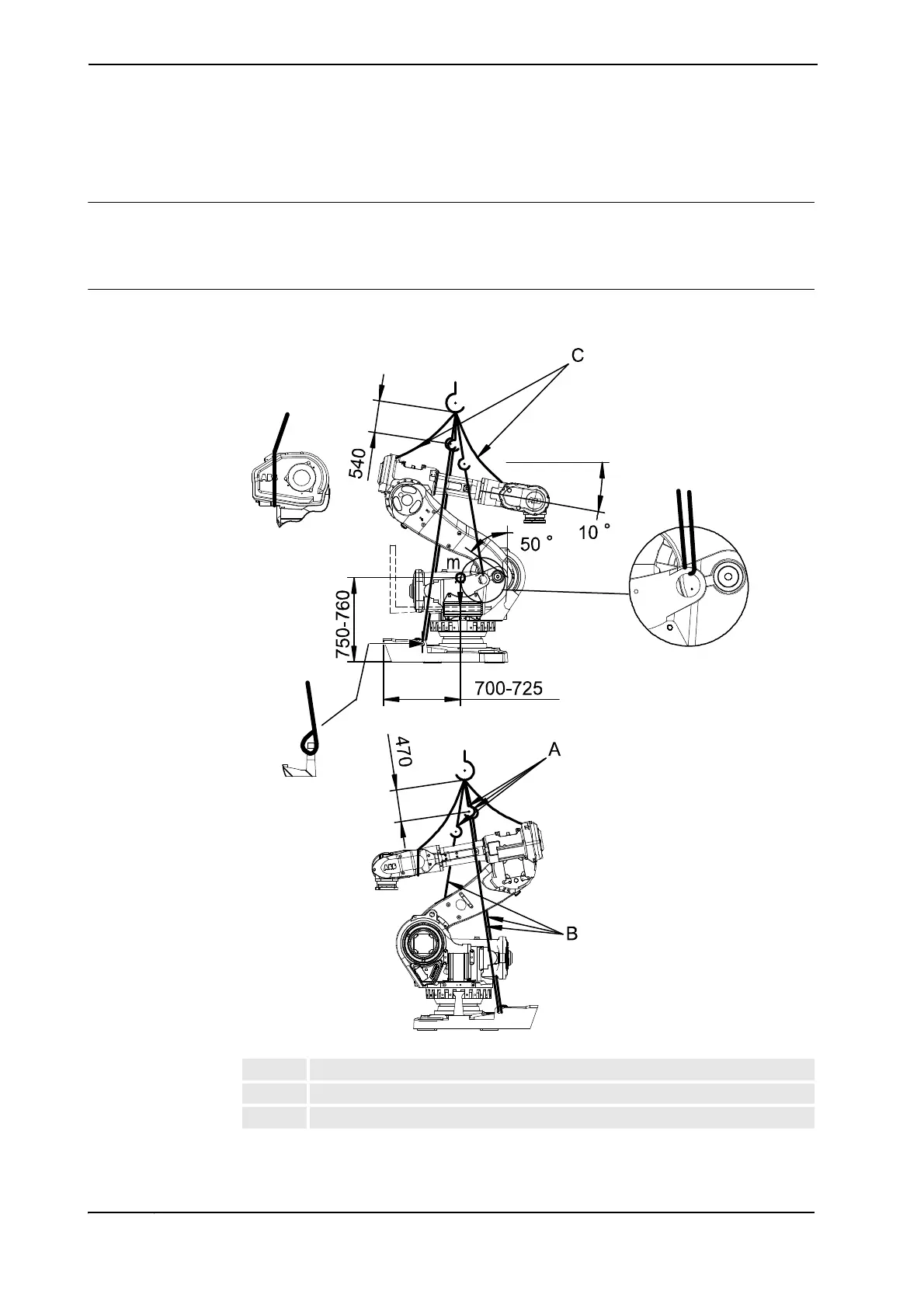

The figure below shows how to attach the roundslings to the robot.
xx0200000282
A Chain sling with shortener
B Roundsling, robot
C Roundsling, upper arm Note! Do not stretch!
