4 Repair
4.5.4. Replacement of balancing device
3HAC023082-001 Revision: E322
© Copyright 2004-2008 ABB. All rights reserved.
4.5.4. Replacement of balancing device
Location of balancing device

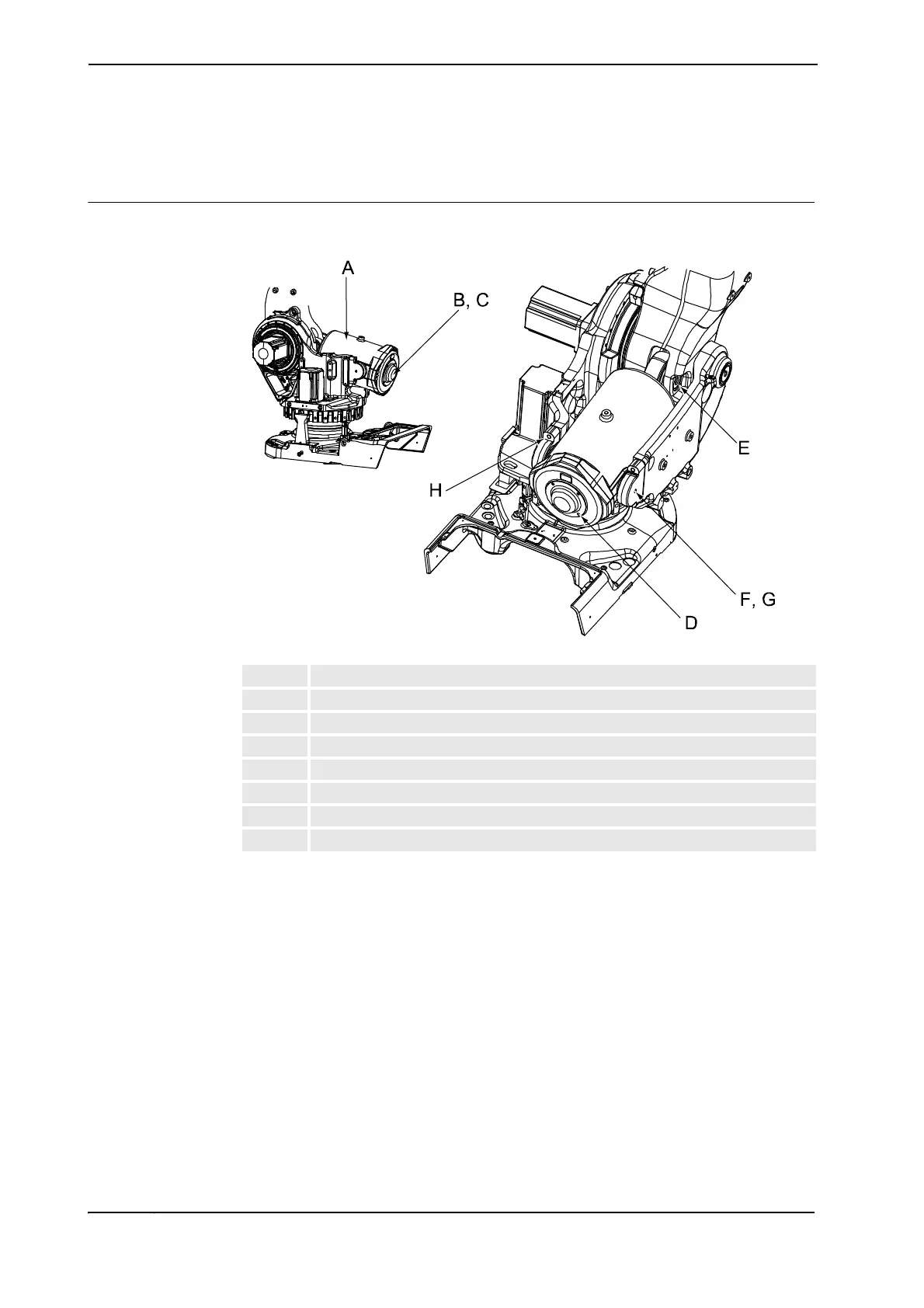

The balancing device is located on rear top of the frame as shown in the figure below.
xx0200000223
A Balancing device
B Rear cover
C Support shaft inside
D Attachment screws, rear cover
E Balancing device shaft, including securing screw
F Bearing attachment
G Parallel pin (inside bearing attachment)
H Attachment screws, bearing attachments
Continues on next page
