4 Repair
4.3.5. Replacement of cabling, axis 5 motor
2593HAC023082-001 Revision: E
© Copyright 2004-2008 ABB. All rights reserved.
4.3.5. Replacement of cabling, axis 5 motor

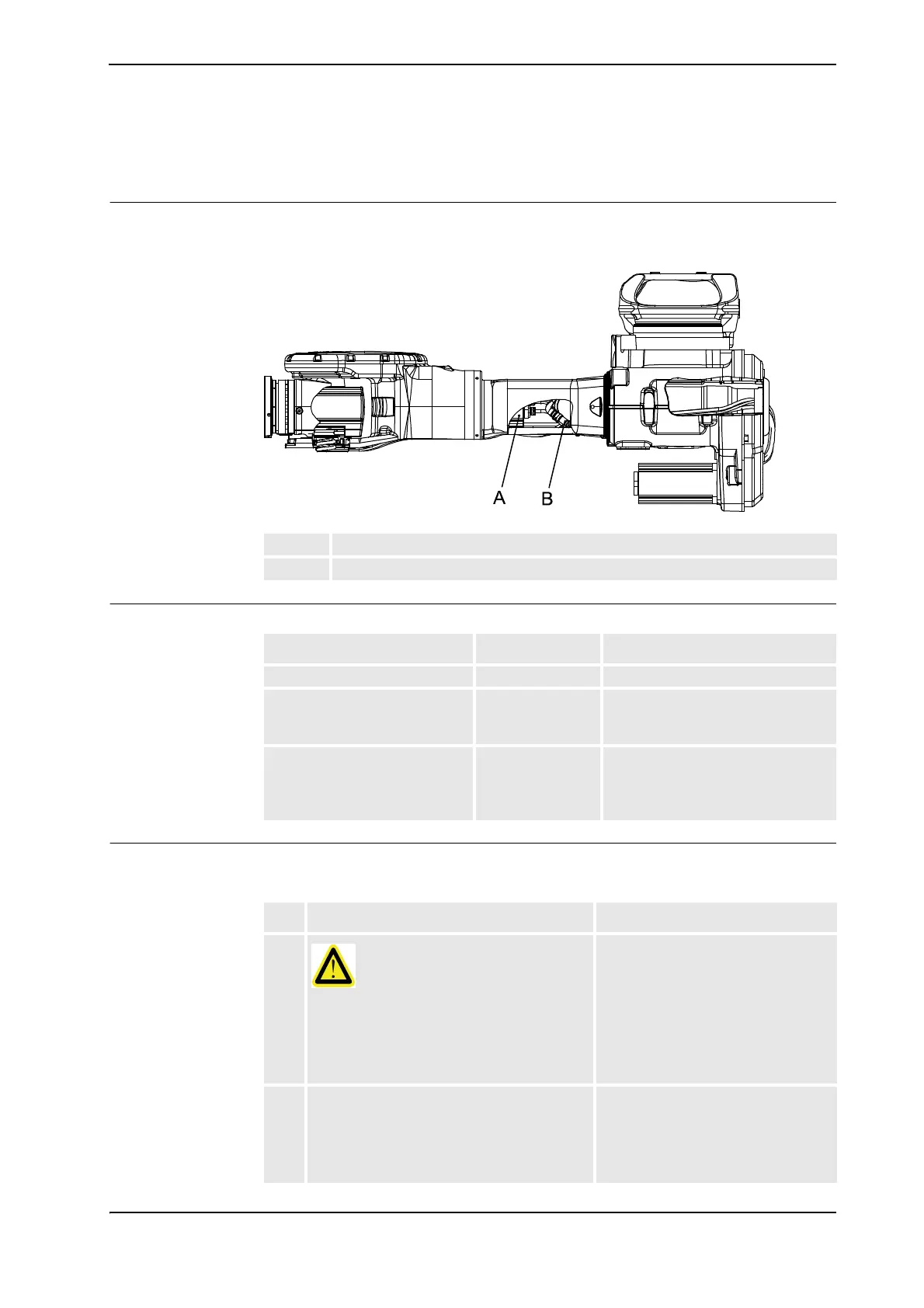

Location of cabling
The separate cables for the axis 5 motor are located inside the upper arm tube, as shown in
the figure below.
xx0500002294
Required equipment
Removal, cabling axis 5 motor
The procedure below details how to remove the cabling from the axis 5 motor.
A Motor axis 5 with connectors R4.FB5 and R4.MP5
B Connectors R3.FB5 and R3.MP5
Equipment Spare part no. Note
Cable harness axis 5 3HAC 14139-1
Standard toolkit The contents are defined in section
Standard toolkit on page 436, in part
2 of the Product manual.
Other tools and procedures may
be required. See references to
these procedures in the step-by-
step instructions below.
These procedures include
references to the tools required.
Action Note
1.
DANGER!
Turn off all electric power, hydraulic and
pneumatic pressure supplies to the robot!
For Foundry Prime robots: Do not turn off the
air pressure to motors and SMB.
2. Remove the complete wrist unit. Detailed in section:
• IRB 6600/6650:Removal, wrist
unit on page 278.
• IRB 6600ID/6650ID: Removal,
wrist unit on page 283.
Continues on next page
