ABB IRB 6600 - 225/2.55 type B User Manual

3 Maintenance
3.3.10. Inspection, mechanical stop, axis 1
3HAC023082-001 Revision: E164
© Copyright 2004-2008 ABB. All rights reserved.
3.3.10. Inspection, mechanical stop, axis 1
Location of mechanical stop

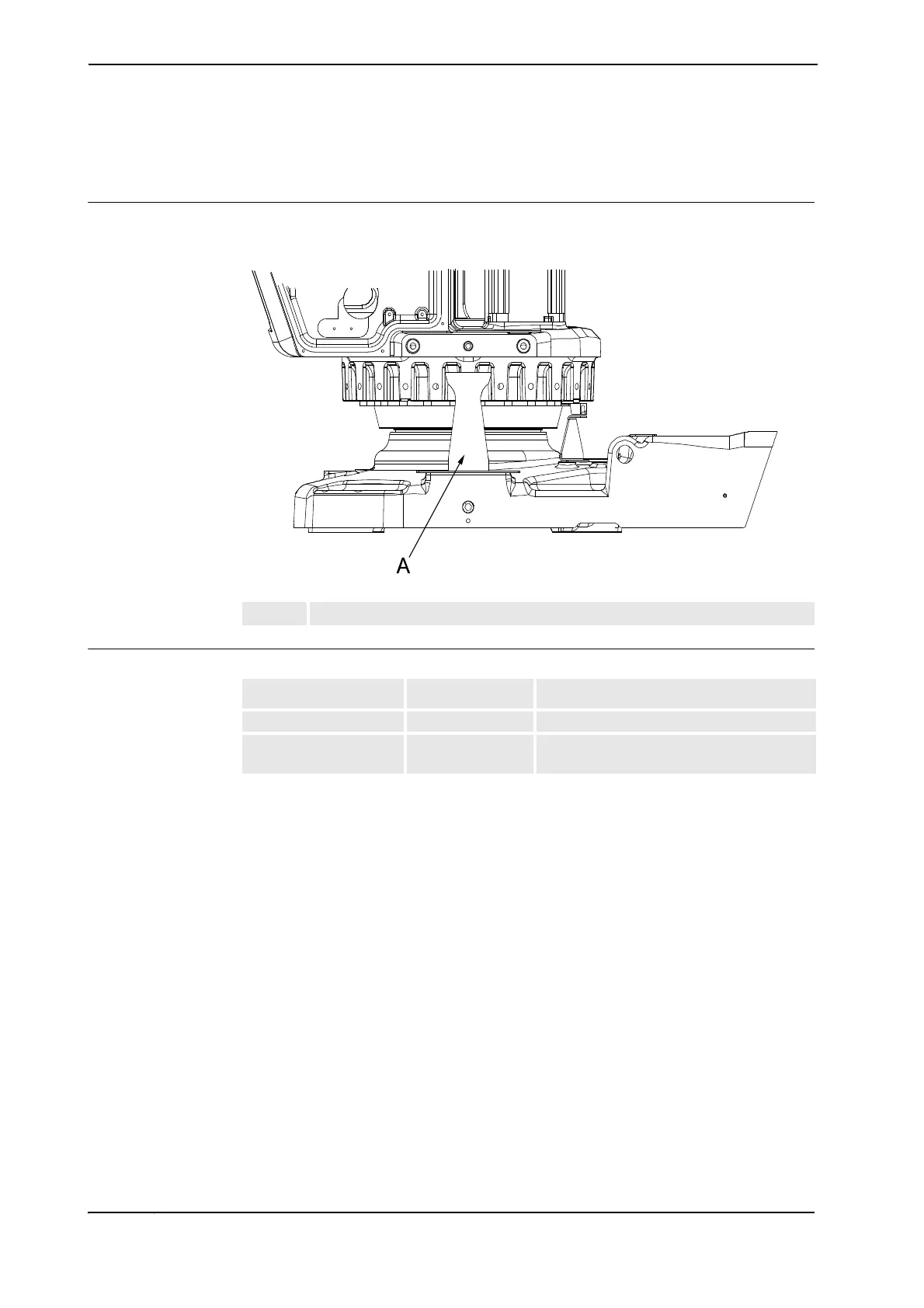

The mechanical stop axis 1 is located at the base as shown in the figure below.
xx0200000151
Required equipment
A Mechanical stop (stop pin)
Equipment, etc. Art. no. Note
Mechanical stop ax 1 3HAC12812-2 To be replaced when damaged.
Standard toolkit - The contents are defined in section Standard
toolkit on page 436.
Continues on next page
