ABB IRB 6600 - 225/2.55 type B User Manual

2 Installation and commissioning
2.5.3. Lifting robot with lifting slings
3HAC023082-001 Revision: E68
© Copyright 2004-2008 ABB. All rights reserved.
2.5.3. Lifting robot with lifting slings
General
This section contains a general overview of how to lift the complete robot using special lifting
equipment. More detailed instructions are included with the equipment.

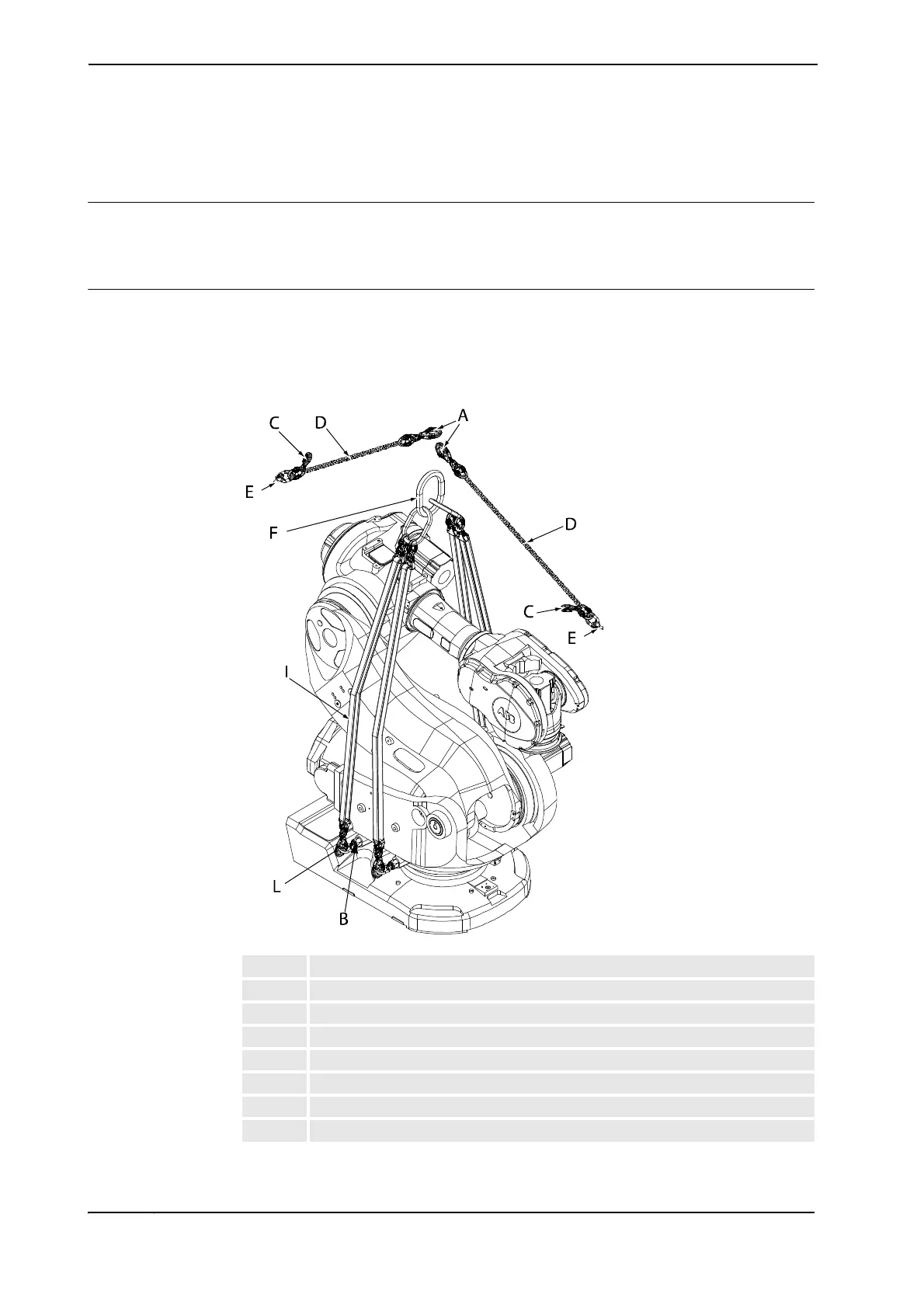

Illustration, lifting slings
The figure below shows how to lift the complete robot with lifting slings.
Note the recommended robot position shown in the figure below and in the instruction!
Attempting to lift a robot in any other position may result in the robot tipping over, causing
severe damage or injury!
xx0200000153
A Load hook
B Swivelling lifting eyes, 4 pcs
C Shortening hook
D Chain
E M12 lifting eye
F Lifting device´s eye
I Lifting slings, 4 pcs
L Hook
Continues on next page
