ABB IRB 6600 - 225/2.55 type B User Manual

2 Installation and commissioning
2.5.1. Lifting robot with fork lift
613HAC023082-001 Revision: E
© Copyright 2004-2008 ABB. All rights reserved.
2.5 On-site installation
2.5.1. Lifting robot with fork lift
General
The robot may be moved using a fork lift, provided that available special aids are used.
This section describes how to attach the fork lift equipment to the robot.
Attachment points

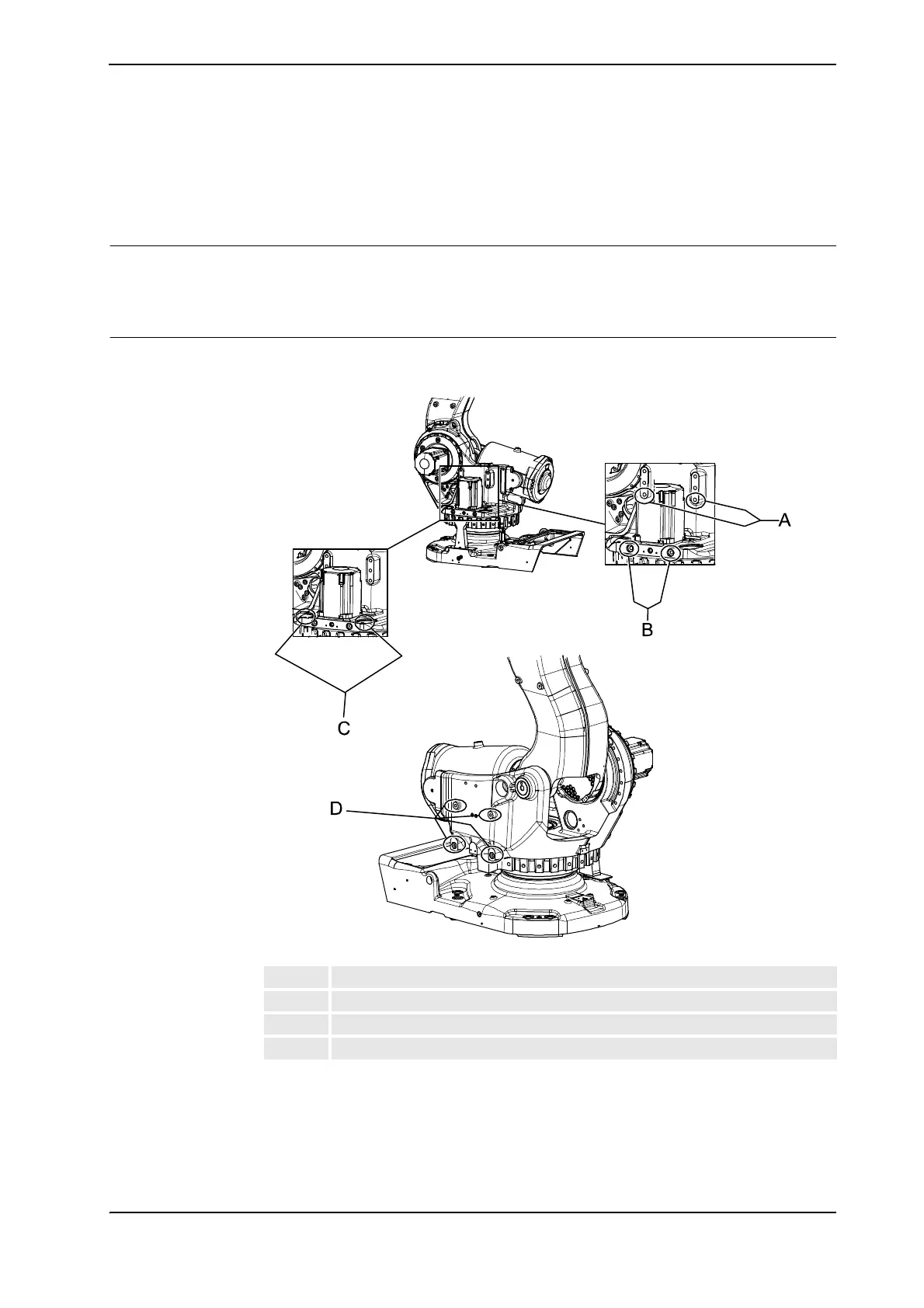

The attachment points for the fork lift equipment are shown in the figure below.
xx0400000707
A Attachment points, spacer and horizontal attachment screws
B Attachment points, horizontal attachment screws
C Attachment points, vertical attachment screws
D Attachment points, horizontal attachment screws
Continues on next page
