ABB Terra 360 CE User Manual

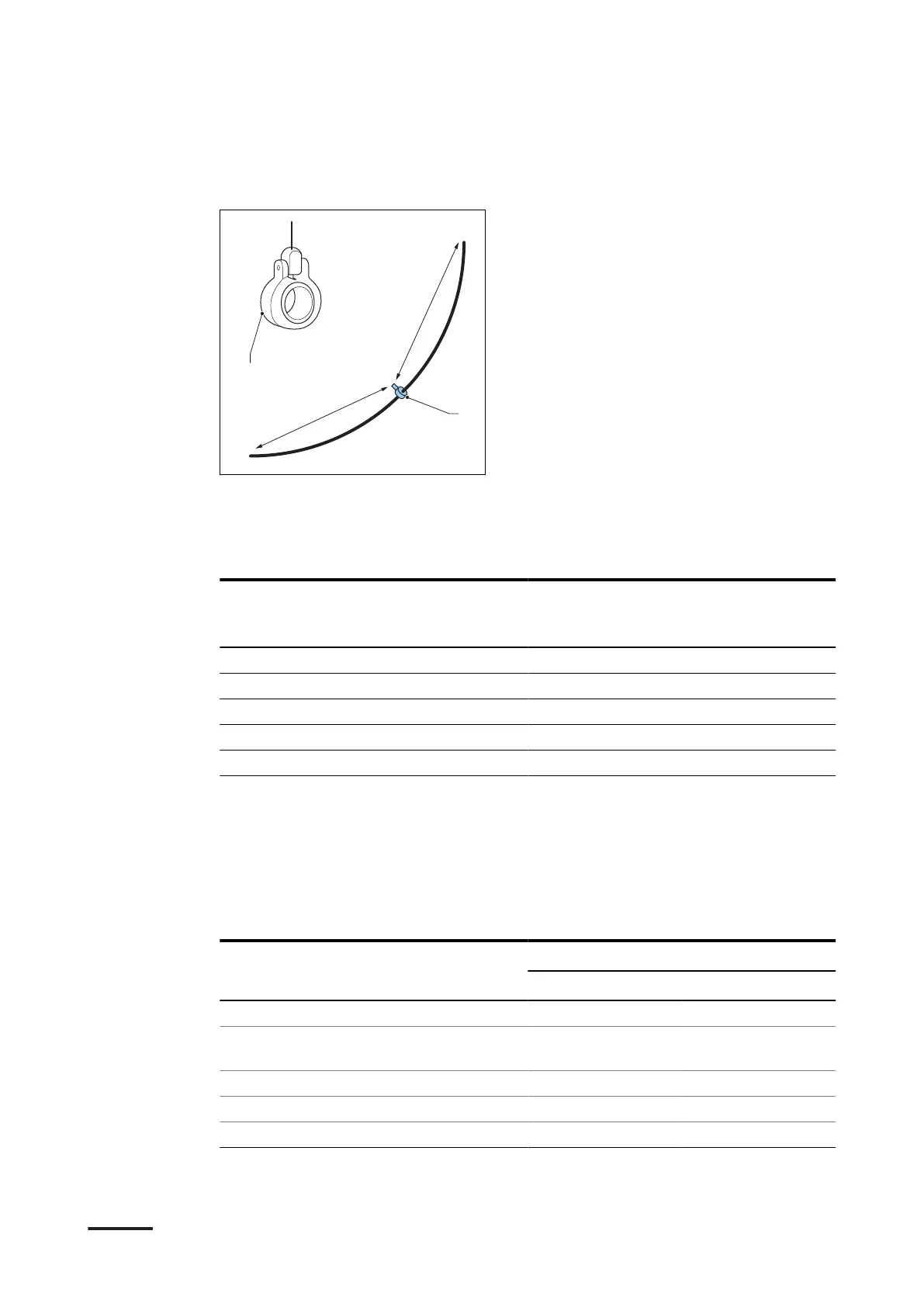

10.10 Cable management system specifications
A
A
Y
X
A Clamp
X Distance from the cable exit point
Y Distance from the connector
Cable type Cooling Rating [A] Cable management sys-
tem model
Maximum
elongation
[m]
CCS1 Air 500 6AGC106063 1.5
CCS2 Air 500 6AGC106063 1.5
ChaDeMo Air 350 6AGC106063 1.5
CCS2 Air 150 6AGC106068 2
CCS2 Liquid 500 6AGC106068 2
The maximum cable length supported by the ABB cable retraction system is 6 m (20
ft).
10.11 Dimensions
10.11.1 General dimensions (Terra 360)
Parameter Specification
[mm] [in]
Width of the cabinet (X-dimension) 1210 48
Depth of the cabinet (Y-dimension, mini-
mum)
764 30
Height of the cabinet (Z-dimension) 2214 87
Maximum opening size of the cable inlet 32 1.3
Diameter of the cable entry hole (C) 12 0.5
Technical data
9AKK108467A6398-EN | 002 101
