ABB Terra 360 CE - Floor Space Requirements (Terra 360, Serial Production)

Parameter Specification [mm]
[mm] [in]
Y1 400 16
Y2 400 16
Note: These dimensions only refer to the required space for the cabinet.
A minimum of 1 m extra on each side is required to allow operations on
the EVSE.

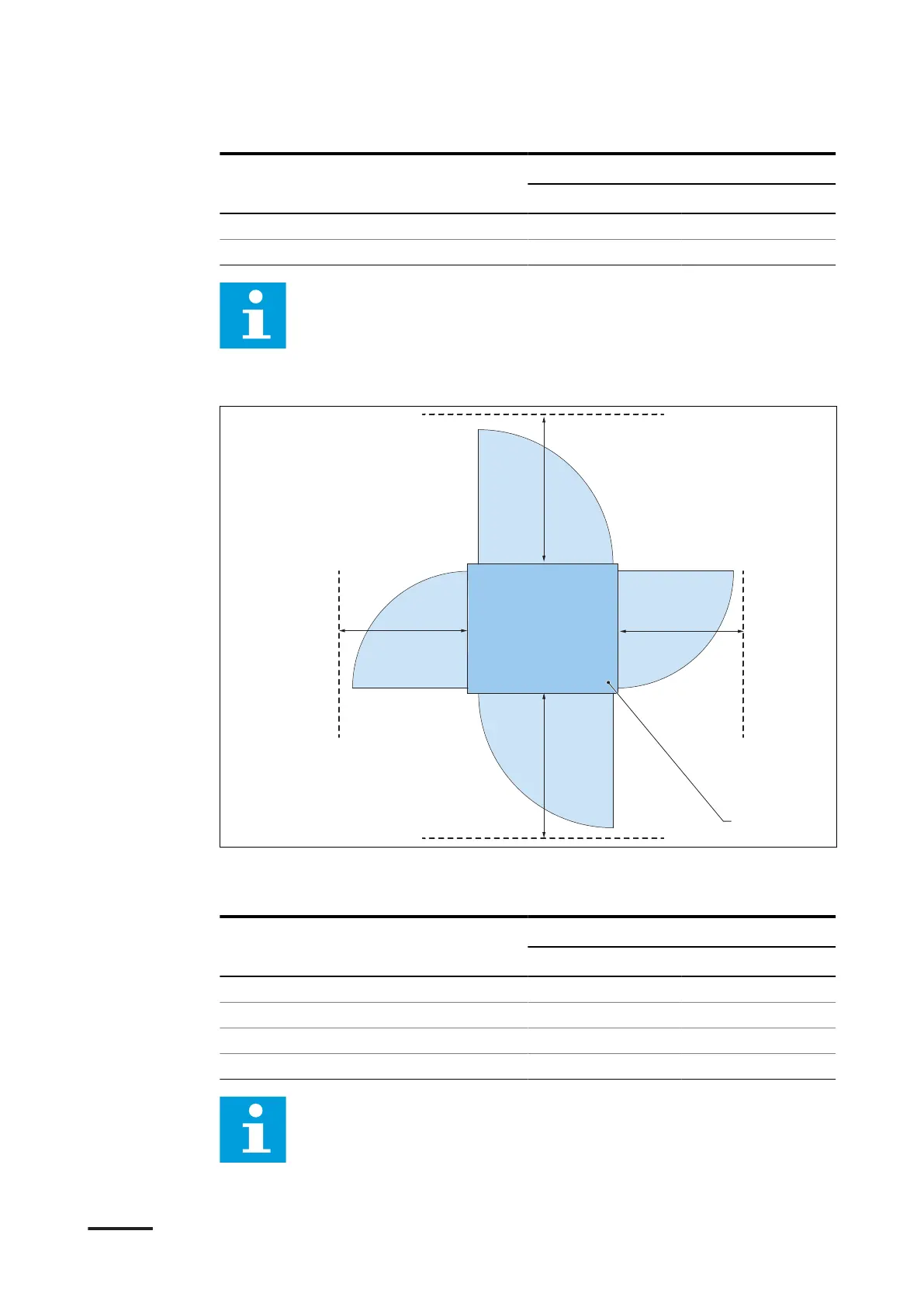

10.11.6 Floor space requirements (Terra 360, serial production)
X1
Y2
Y1
X2
A
A Cabinet
X1 Space to open the left side door
X2 Space to open the right side panel
Y1 Space to open the rear door
Y2 Space to open the front door
Parameter Specification [mm]
[mm] [in]
X1 900 35
X2 900 35
Y1 1000 39
Y2 1000 39
Note: These dimensions only refer to the required space for the cabinet.
A minimum of 1 m extra on each side is required to allow operations on
the EVSE.
Technical data
104 9AKK108467A6398-EN | 002
