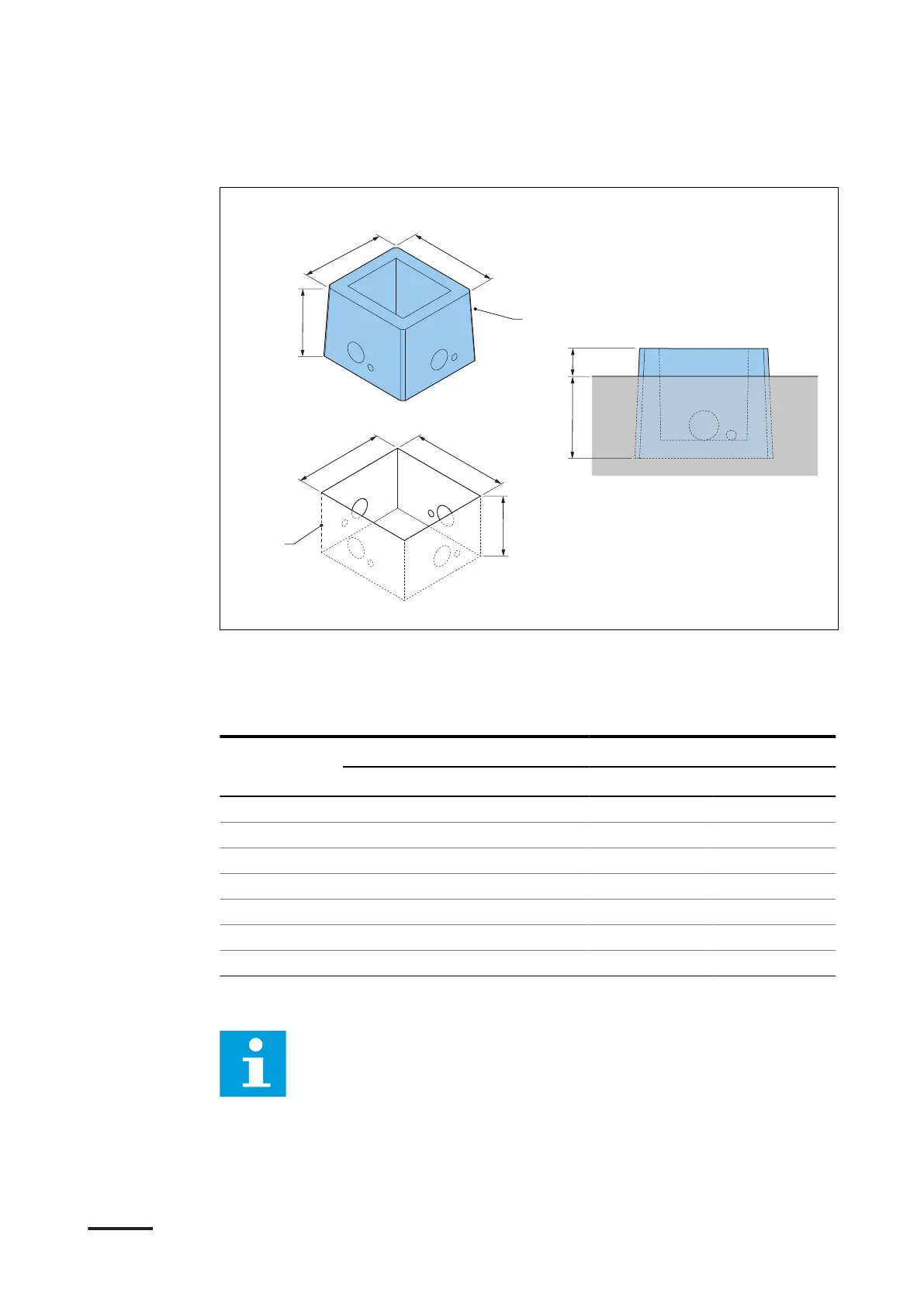

10.11.8 Prefabricated foundation (Terra 360)
Z1
Y1
X1
Y2
X2
Z2
Z2
Z3
B
A
V
A Foundation
B Hole for the foundation
X1 Width of the foundation
Y1 Depth of the foundation
Z1 Height of the foundation
X2 Width of the hole
Y2 Depth of the hole
Z2 Height of the hole
Z3 Distance of the foundation above
the ground level
Parameter Specification Terra 60 / 180 Specification Terra 360
[mm] [in] [mm] [in]
X1 680 26.8 680 26.8
Y1 554 21.8 754 29.7
Z1 580 22.8 580 22.8
X2 780 30.7 780 30.7
Y2 654 25.8 854 33.6
Z2 580 22.8 580 22.8
Z3 20 0.8 20 0.8
Each side has a square hole XxY = 237 x 165 mm (9.3 x 6.5 in) to fit the conduits 1 x
160 mm (6.3 in) and 1 x 75 mm (3 in) diameters or different combinations.
Note:
On the top side of the prefabricated foundation an arrow indicates
the front side.
Technical data
106 9AKK108467A6398-EN | 002
