ABB Terra 360 CE User Manual

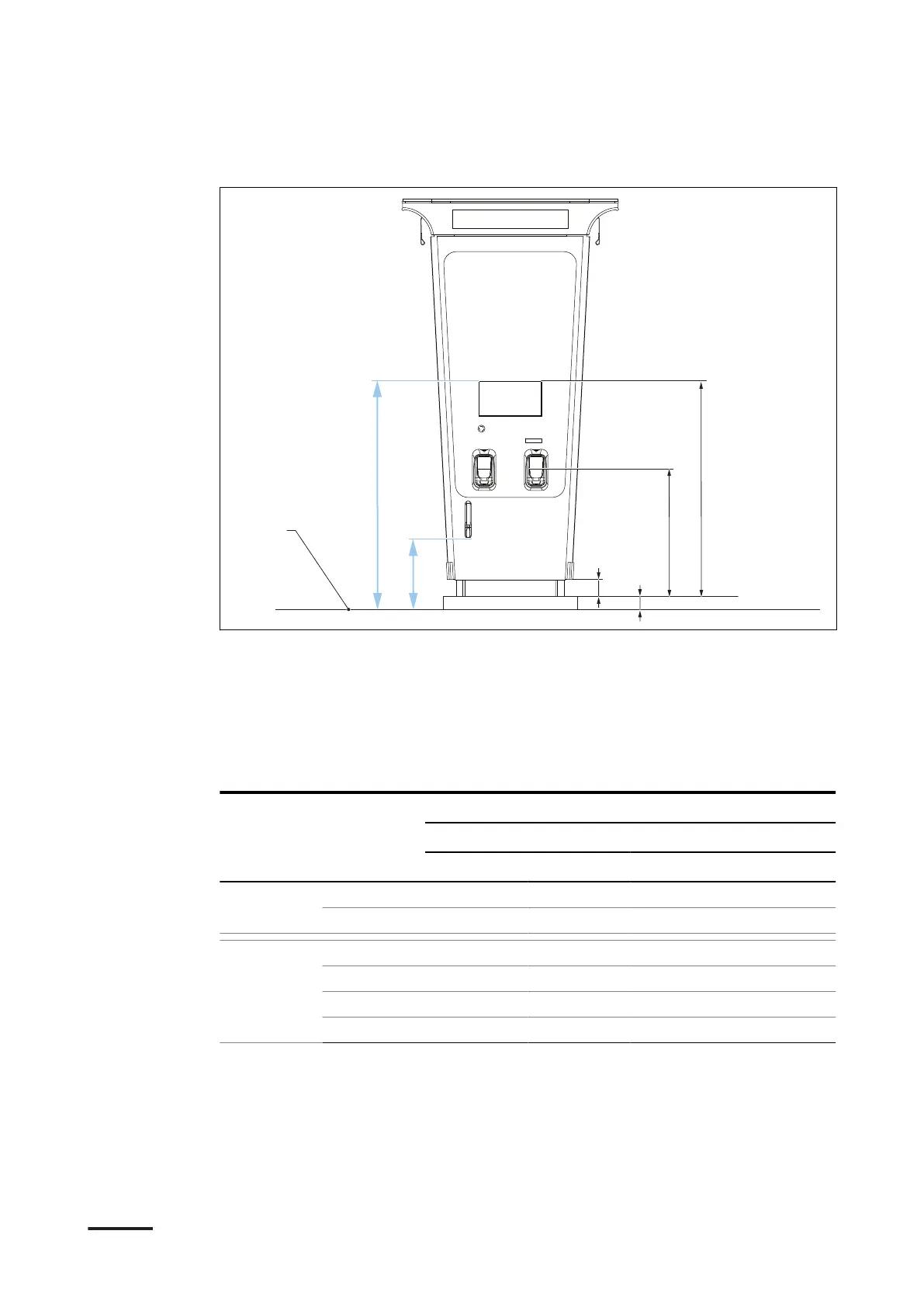

10.11.12 Height of user operable elements
Z3
Z4
Z5
Z2
Z1
Z6
A
A Ground level
Z1 Maximum height of the user
operable elements according to
ADA
Z2 Lowest height of the user operable
elements according to ADA
Z3 EVSE highest user operable
element
Z4 EVSE lowest user operable element
Z5 EVSE base
Z6 Curb
Parameter Specification
Standard Base with reduced height
[mm] [in] [mm] [in]
ADA recom-
mendations
Z1 1212 48 1212 48
Z2 381 15 381 15
EVSE Z3 1212 48 1092 43
Z4 688 27 568 22
Z5 190 7 20 1
Z6 0 0 < 100 < 4
ADA compliance
According to ADA (Act of Disabled Americans) the height of user operable elements
must be between specific limits:
• Maximum height is 1219 mm (44 in)
• Minimum height is 381 (15 in)
Technical data
9AKK108467A6398-EN | 002 109

ABB Terra 360 CE Specifications
