Note: EV charging with the use of the CCS standard can 'fall asleep' if the
EVSE does not start the session within a few minutes. This is a common
issue. It is recommended to connect a second EV only shortly before the
first charge session ends.

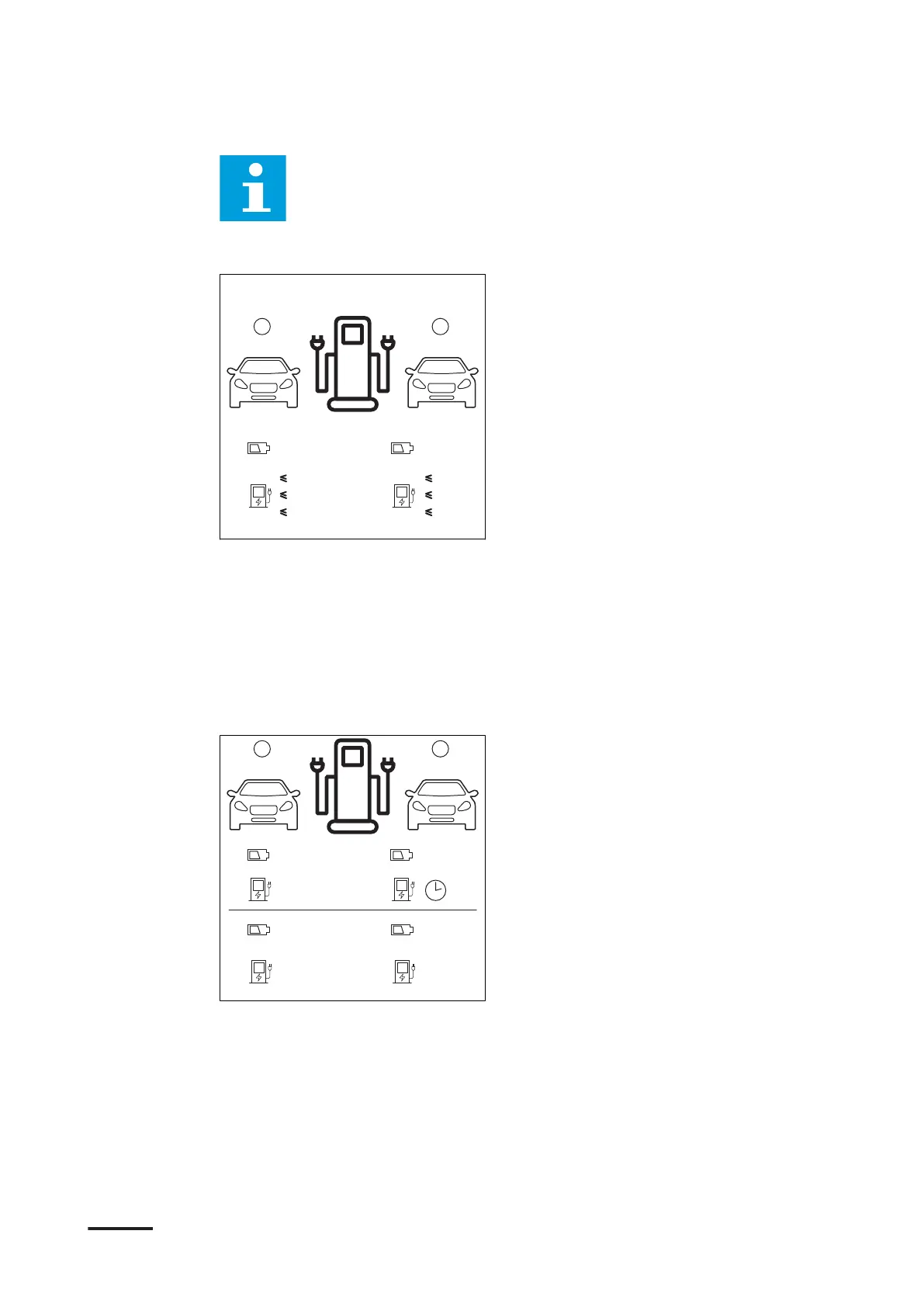

3.9.2 Concurrent allocation
0 - 99%
0 - 99%
1 2
25%
50%
75%
75%
50%
25%
The power can be allocated in three different ways:
• EV1 receives a maximum of 25 % power from the EVSE until it is fully charged,
EV2 receives a maximum of 75 % power from the EVSE until it is fully charged.
• EV1 and EV2 each receive a maximum of 50 % power from the EVSE until they are
fully charged.
• EV1 receives a maximum of 75 % power from the EVSE until it is fully charged,
EV2 receives a maximum of 25 % power from the EVSE until it is fully charged.
3.9.3 Dynamic allocation 'First In First Served'
51 - 99%
0 - 99%
1 2
0 - 50%
100%
0 - 99%
25%
50%
75%
75%
50%
25%
Situation when the battery level of EV1 is below 50 percent:
• EV1 receives 100 percent of the power from the EVSE until it is fully charged.
• EV2 must wait until EV1 is fully charged.
Situation when the battery level of EV1 is above 50 percent:
• EV1 receives 50 percent of the power from the EVSE until it is fully charged.
• EV2 receives 50 percent of the power from the EVSE until EV1 is fully charged.
After that, EV2 receives 100 percent of the power until it is fully charged.
Other possible allocations are: EV1 receives 25 percent and EV2 75 percent, or EV1
receives 75 percent and EV2 receives 25 percent.
