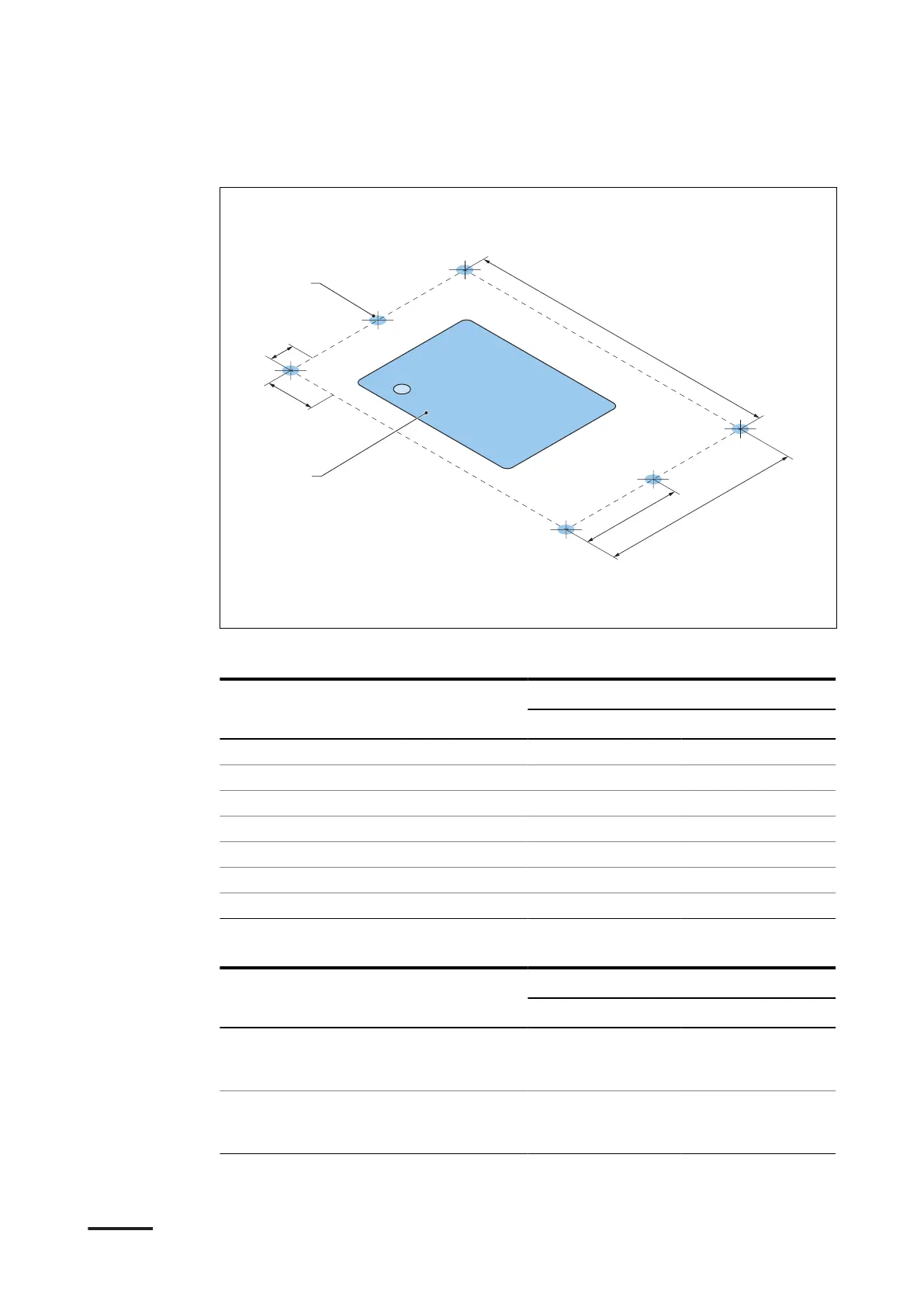

10.11.10 Cast foundation (Terra 180 and 60)
X1
Y2
A
B
X2
Y3
Y1
A Holes to install the fasteners of the
EVSE
B Cable arrival area
Parameter Specification [mm]
[mm] [in]
A M12, depth 70 M12, depth 3
B 245 x 330 9.6 x 13
X1 506 19.9
X2 45 1.8
Y1 320 12.6
Y2 25 1
Y3 160 6.3
10.11.11 Cable slack
Parameter Specification
[mm] [in]
Required cable slack for the Ethernet ca-
ble (measured from the top of the foun-
dation)
500 20
Required cable slack for the AC input ca-
ble (measured from the top of the foun-
dation)
350 14
