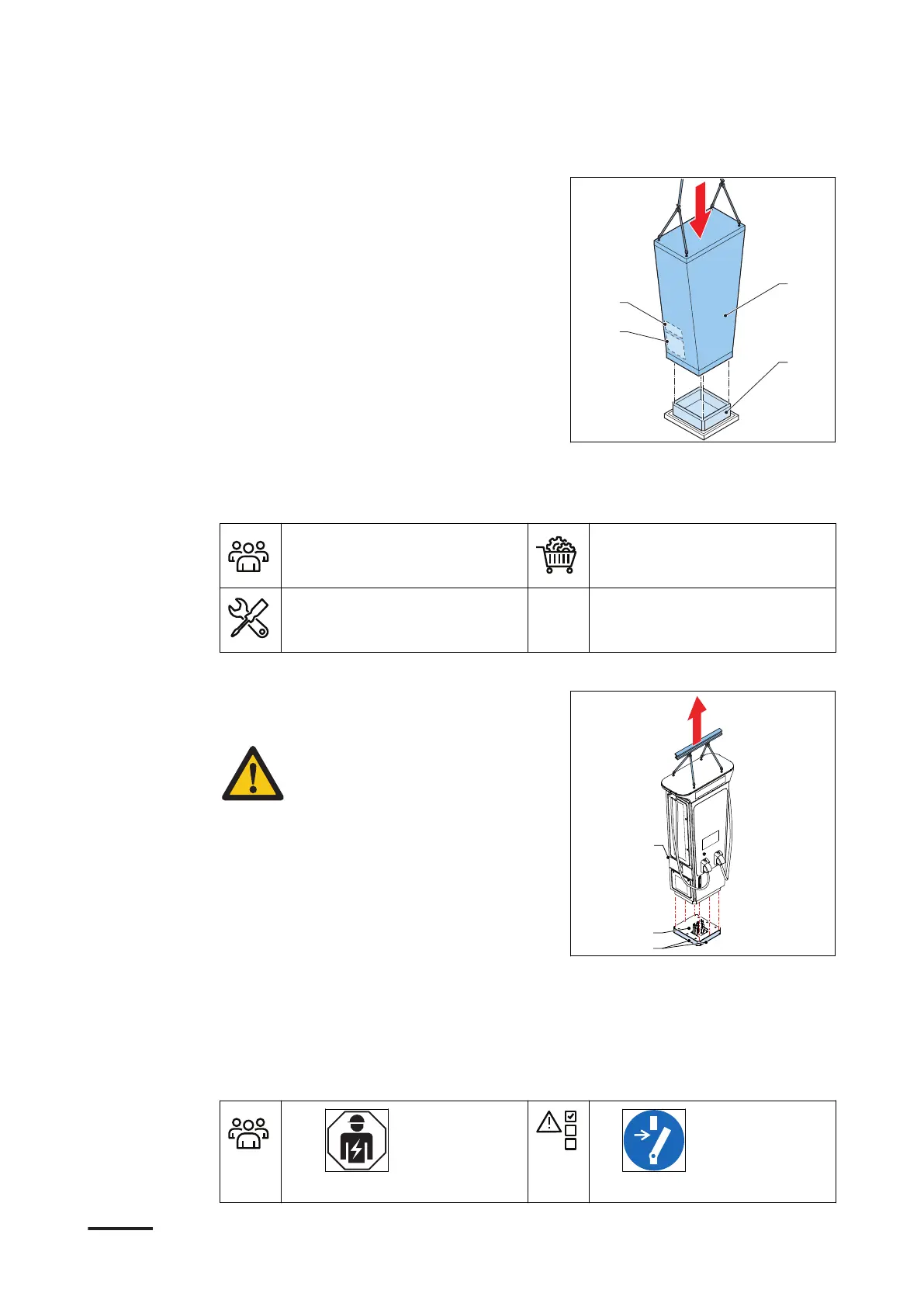

ABB Terra 360 CE User Manual

Procedure
1. Move the cabinet (A) on top of the
base (B). Use a crane or a forklift.
2. Carefully lower the cabinet on the
base. Make sure that cables do not get
trapped between the cabinet and the
base.
5.6.3 Connect the cabinet to the base
Preliminary requirements
• Installation engineer
• Fasteners M10 (6x)
• Open spanner
Procedure
1. Make sure that the holes in the cabinet
(A) and the base (B) are aligned.
Caution: Make sure that there
are no kinks in the cables.
2. Install the fasteners.
3. Tighten the fasteners.
4. Install the base covers (C).
5.7 Electrical installation
5.7.1 Electrical installation procedure
Preliminary requirements
•
Installation engineer
•
D
C
A
B
A
B
C
Installation
66 9AKK108467A6398-EN | 002
